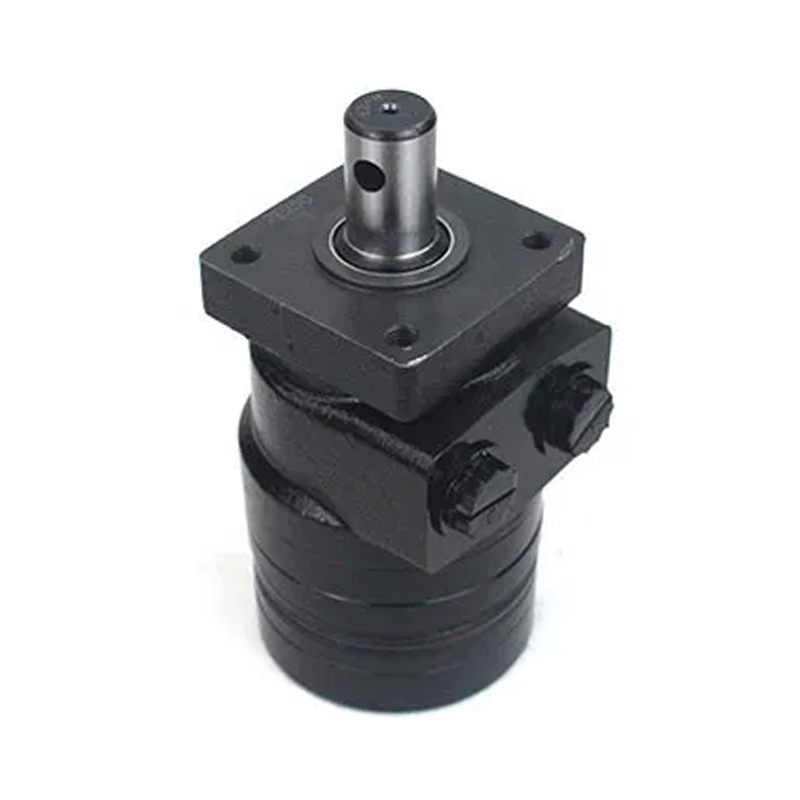

Parker TE / TB / TC Series Gerotor Orbital Motor Replacement, 1" Key Shaft, Square Mount Flange, High Torque Hydraulic Motor

You are here: Home » Products » Hydraulic Motor » Ungrouped » Parker TE / TB / TC Series Gerotor Orbital Motor Replacement, 1" Key Shaft, Square Mount Flange, High Torque Hydraulic Motor

Parker TE / TB / TC Series Gerotor Orbital Motor Replacement, 1" Key Shaft, Square Mount Flange, High Torque Hydraulic Motor

Parker TE / TB / TC Series Gerotor Orbital Motor Replacement, 1" Key Shaft, Square Mount Flange, High Torque Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BME2-50-H4S-H
Brand:
Xeriwell or Others

Product Description

Product:	High Torque Hydraulic Motor	Model Number:	BME2-50-H4S-H
Displacement:	50 Ml/r	Speed:	667-842 Rpm
Torque:	126-176 Nm	Output:	8.3-13.9 Kw
Pressure Drop:	14 - 19 MPa	Flange:	Square Mount
Shaft:	25.4mm Key Shaft With Hole	Rotation:	CCW
Highlight:	tb Parker Gerotor Motors , te Parker Gerotor Motors , TC Parker Gerotor Motors replacement

Parker Gerotor Motors TE, TB, TC Series replacement, 1 inch key shaft, square flange, high toque motor

Quick review:

Model number: BME2-50-H4S-H
Displacement, 50 ml/r
Speed, 667-842 rpm
Torque, 126-176 Nm
Output, 8.3-13.9 Kw
Pressure Drop, 14 - 20 MPa
Flange, square mount
Shaft, 25.4mm key shaft with hole
Rotation, CCW
Features, suit Parker TB, TC, TE

We provide hydraulic system solutions for hydraulic trailer system.

BME2 is the most selected application for trailer hydraulic system.
Welcome to contact us for consultation.

From ligh duty to heavy duty, we have them.

Here is it's technical details:

Type		BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
Type		65	80	100	125	160	200	230	250	295	315	375
Geometric displacement (cm3 /rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
Max. speed (rpm)	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N•m)	cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque (N•m)	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output (kW)	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	165	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
Max. flow (L/min)	int.	57	57	57	57	57	57	75	75	75	75	75
