| Quantity: | |
|---|---|
TE0195US250AAKY
Xeriwell or Others
| Type: | Low Speed High Torque Hydraulic Motor | Speed: | 229rpm-289rpm |
|---|---|---|---|
| OEM: | Available | Displacement: | 200cc |
| Warranty: | 12-18 Months | Application: | Construction Machines, Heavey Machines, Rollers Etc. |
| Torque: | 382N.M-520N.M | Output: | 9.0kw-15.7kw |
| Pressure: | 14mpa-20mpa | ||
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Parker TE Series Torqmotor TE0195US250AAKY replacement hydraulic gerotor motor low speed high torque
BME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
| 1, | model number | BME2-200-WSTB |
| 2, | displacement | 200ml/r |
| 3, | flange | 4 - 4-13.5 Magneto Mount |

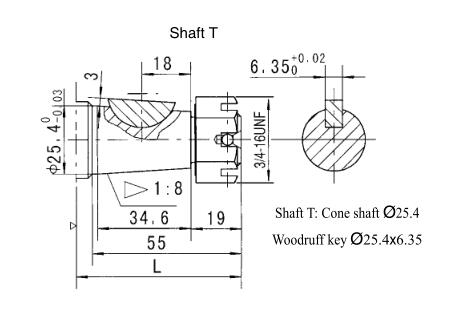

| 4, | shaft | 1'' (25.4) mm cone shaft, woodruff key |
| 5, | oil port | 7/8-14 O-RING |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |

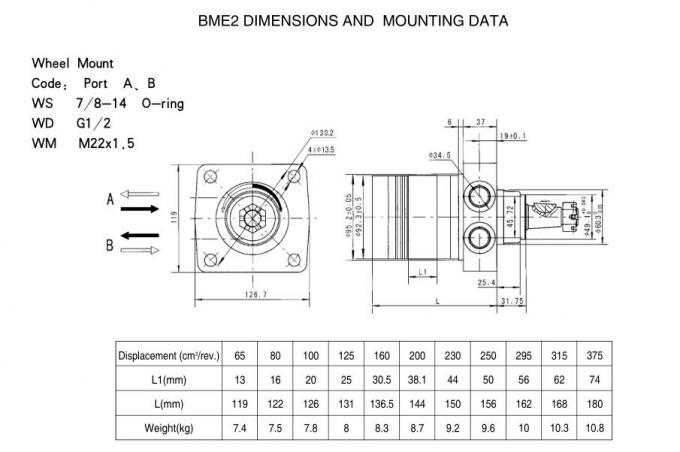

| Displacement (cm3/rev.) | 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 |
| L1(mm) | 13 | 16 | 20 | 25 | 30.5 | 38.1 | 44 | 50 | 56 | 62 | 74 |
| L2(mm) | 119 | 122 | 126 | 131 | 136.5 | 144 | 150 | 156 | 162 | 168 | 180 |
| Weight(kg) | 7.4 | 7.5 | 7.8 | 8 | 8.3 | 8.7 | 9.2 | 9.6 | 10 | 10.3 | 10.8 |
