BME2-160-WS-T-B
Xeriwell or Others
| Product: | High Torque Motor | Model Number: | BME2-160-WS-T-B |
|---|---|---|---|
| Displacement: | 160 Ml/r | Speed: | 283 - 355 Rpm |
| Torque: | 307 - 422 Nm | Output: | 8.9 - 15.6 Kw |
| Pressure Drop: | 14 - 20 MPa | Shaft: | 1 Inch Cone-shaft |
| Highlight: | Parker TE hydraulic motor low rpm,TE0165 hydraulic motor low rpm,25.4mm hydraulic motor low speed | ||

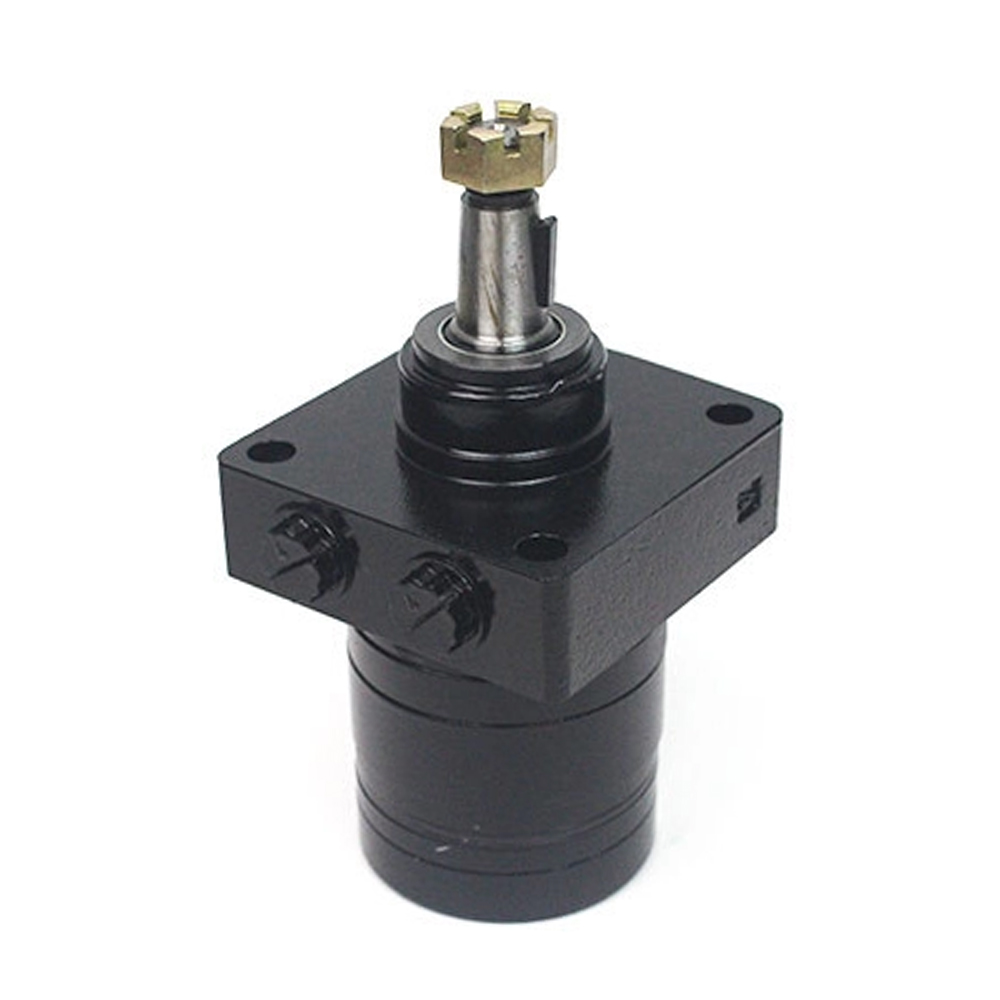

Parker TE Series TE0165 Torque motors Industrial Hydraulics wheel motor,25.4mm cone-shaft
Parker TORQMOTOR TE0065 TE0080 TE0100 TE0130 TE0165 TE0195 TE0230 Hydraulic wheel motor
Quick review:
Model number: BME2-160-WS-T-B
Displacement, 160 ml/r
Speed, 283 - 355 rpm
Torque, 307 - 422 Nm
Output, 8.9 - 15.6 Kw
Pressure Drop, 14 - 20 MPa
Flange, Wheel mount
Shaft, 25.4mm cone-shaft
Rotation, CCW
Features, suit Parker TB, TC, TE,TJ
technical details:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement (cm3 /rev.) | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 196 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N•m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 165 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
Xeriwell, is a young innovational manufacturer, there are many customers all over the world, the tractor hydraulic on the market is produced, if you have a demand for agricultural machinery, please contact us.
