| Quantity: | |
|---|---|
TB065
Xeriwell or Others
| Type: | Torqmotor | Model: | BME2-65 |
|---|---|---|---|
| Flow Rate: | Cont.45/int.57 L/min | Max Speed: | Cont.667/int.842 Rpm |
| Max Torque: | Cont.126/int.176 N.m | Max Output: | Cont.8.3/int.13.9KW |
| Highlight: | Low RPM Hydraulic Motor Parker,Hydraulic High Torque Duty Motor,High Torque Motor 667 Rpm | ||

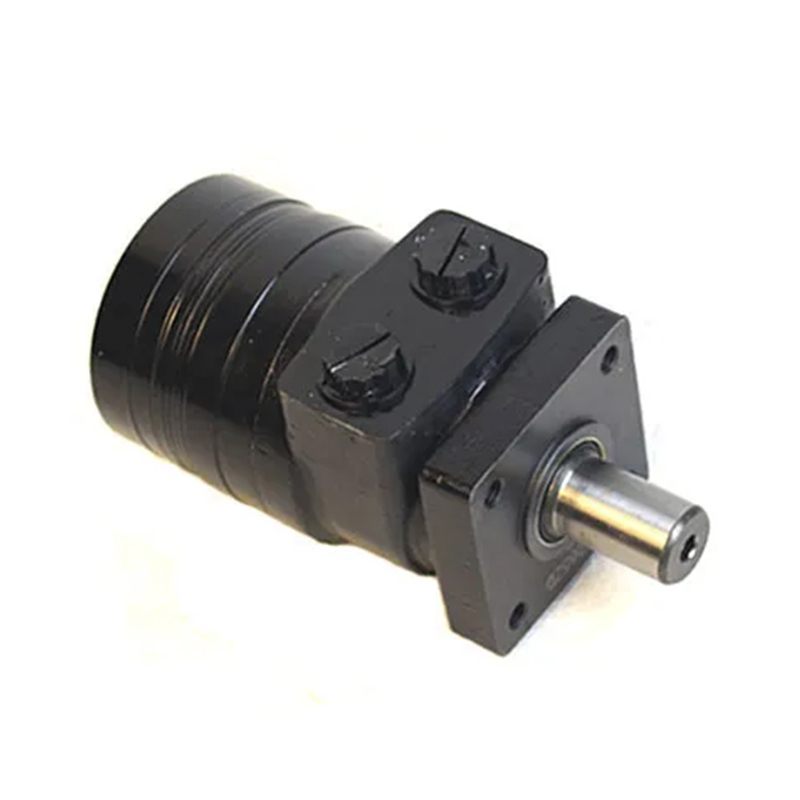

low RPM hydraulic motor Parker model TB065 hydraulic motor high torque duty motor
Xeriwell provide BME2 motors, has the same performance with TB065 Series motor
This light to medium duty motor incorporates all the features of heavy duty motors.
Design features include a high pressure shaft seal so external drains are never required,
roller vane technology for automatic wear compensation, and full flow internal cooling and flushing.
This is a very economical motor for most light to medium duty applications.
Here are the technical informations:
| Parker Model No. | TB065 |
| Xeriwell Model No. | BME2-65-H4S-K |
| Flange & Port | Port 7/8-14UNF,4 Bolt w/3/8-16 UNC |
| Shaft | 25.4mm key SHAFT |
| Rotation | Counter clockwise |
| Max. speed (rpm) | 667rpm 842rpm |
| Max. torque (N•m) | 126N.m 176N.m |
| Max. output (kW) | 8.3kw 13.9kw |
| Max. flow (L/min) | 45L/min 57L/min |
| Color | Black |
