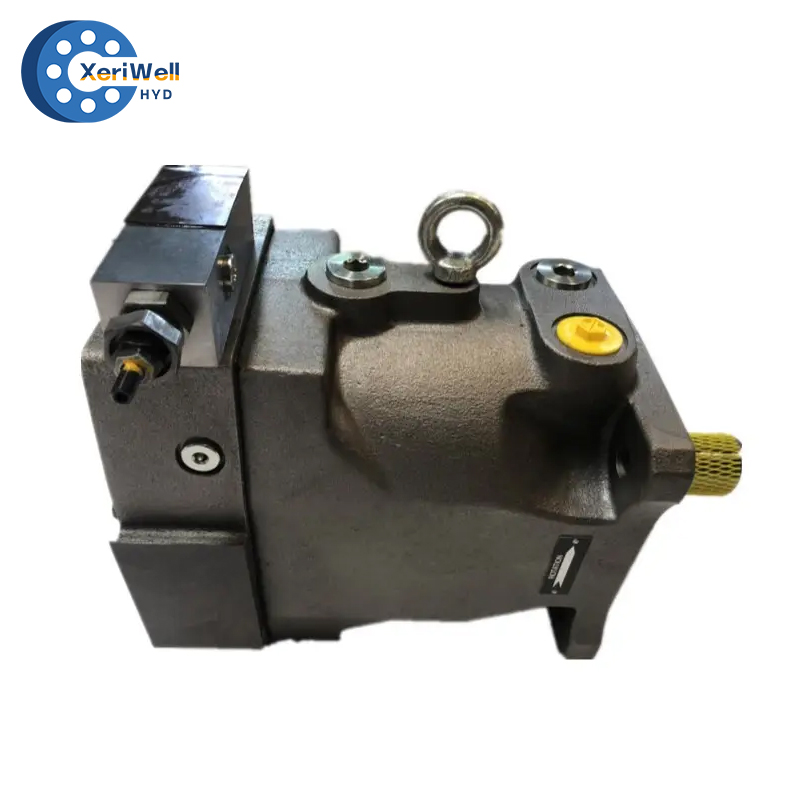

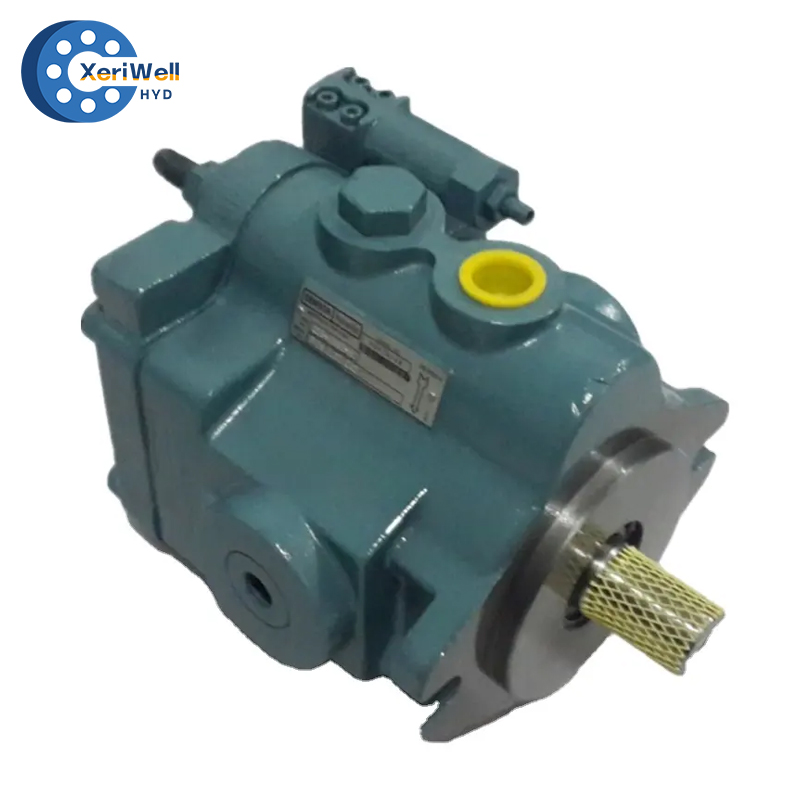

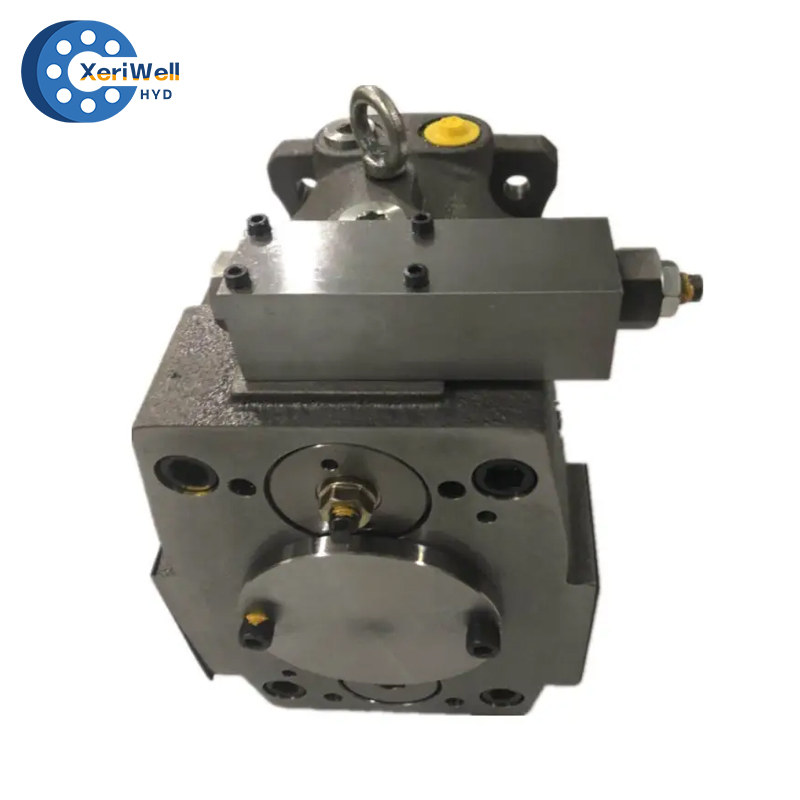

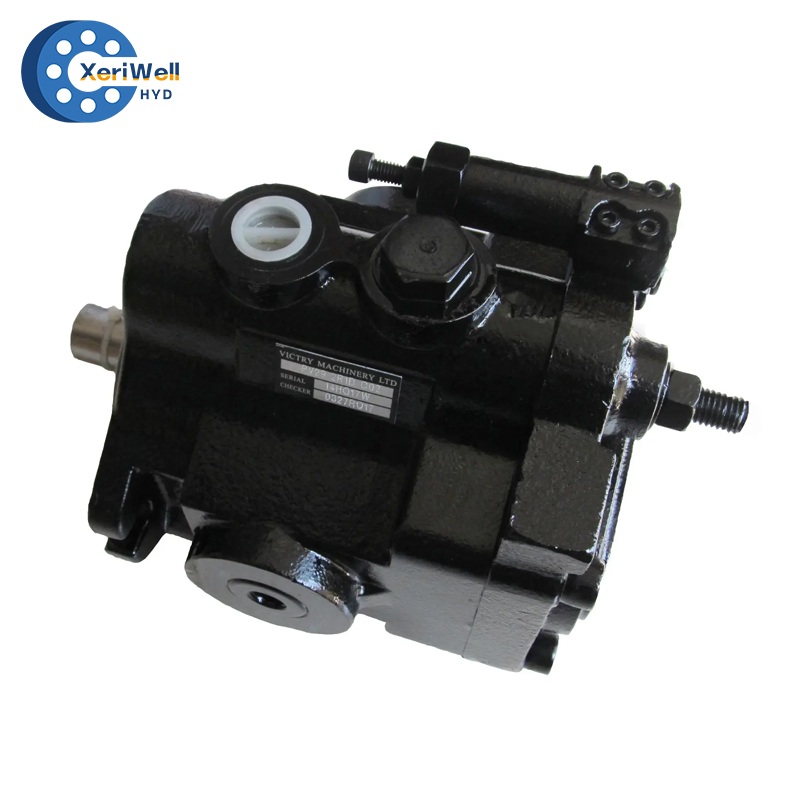

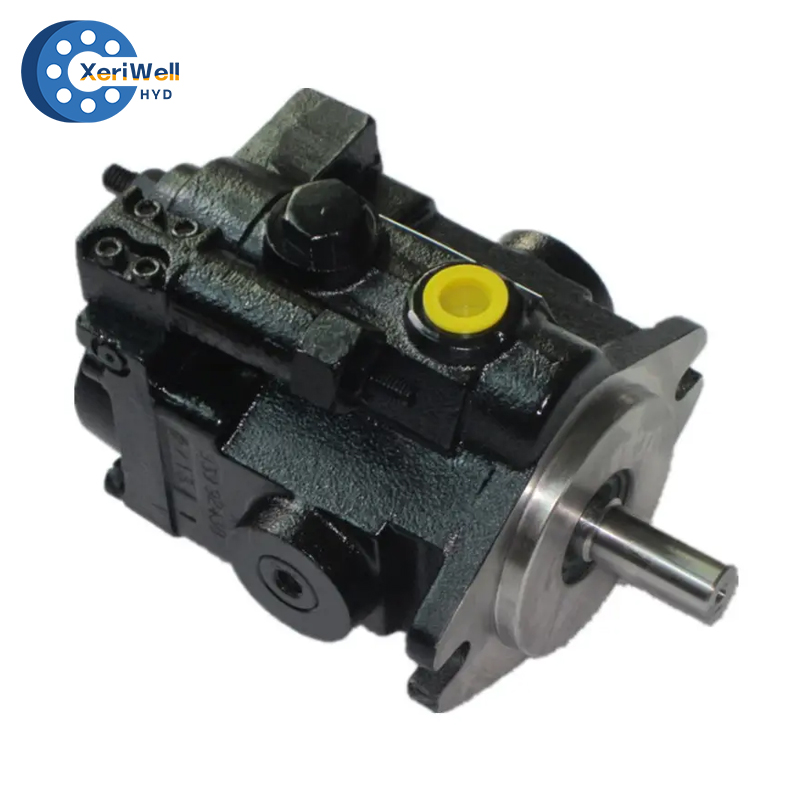

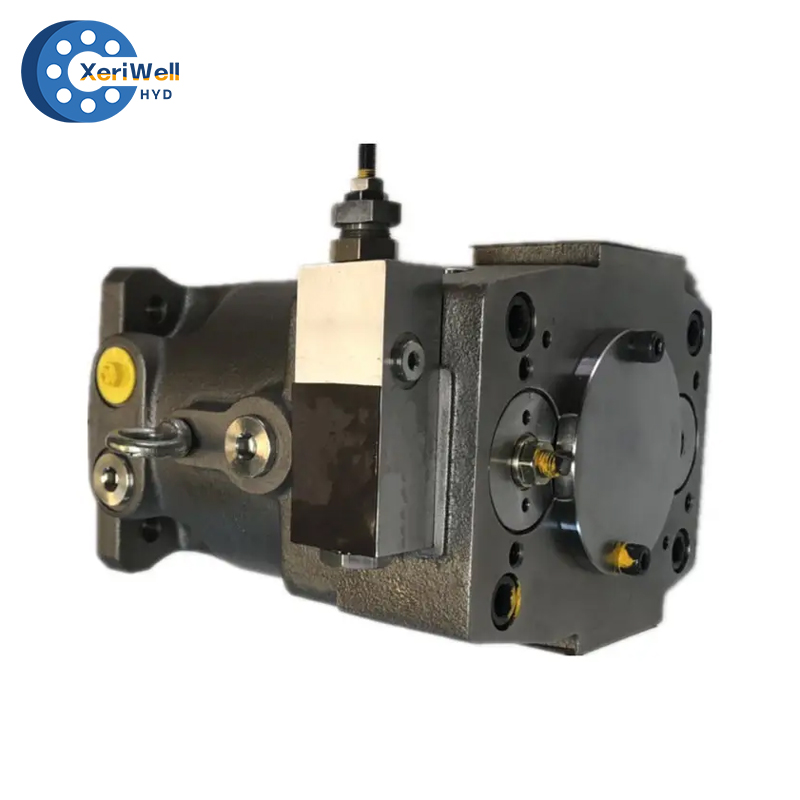

Parker's PVT series axial piston pumps, including models PVT38, PVT47, and PVT64, are engineered for high-performance, variable displacement applications, making them ideal for demanding industrial and mobile machinery.
Key Features:
1）High Efficiency: These pumps offer high volumetric efficiency, ensuring optimal fluid delivery and energy savings.
2）Durability: Constructed with robust materials, they are designed to withstand high pressures and provide extended service life.
3）Low Noise Operation: Advanced design minimizes operational noise, contributing to a quieter working environment.
4）High Pressure Capability: The PVT series can handle operating pressures up to 4350 psi (approximately 300 bar), suitable for high-demand hydraulic systems.
5）Versatility: Available in various displacement options, including 38, 47, and 64 cm³/rev, the PVT series caters to a wide range of application needs.
In summary, Parker's PVT series axial piston pumps combine efficiency, durability, and versatility, making them a reliable choice for a wide range of hydraulic applications.

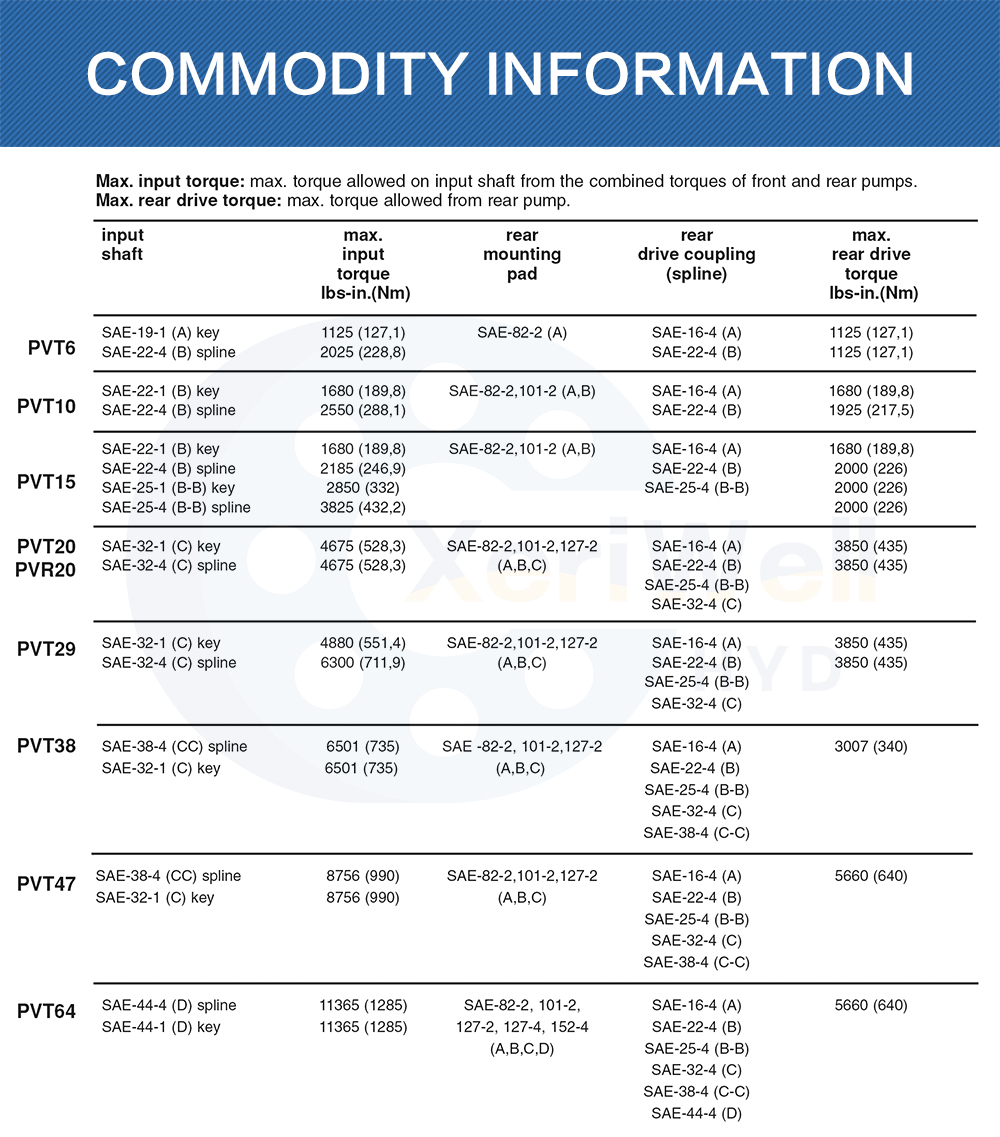

| Max. input torque:max. torque allowed on input shaft from the combined torques of front and rear pumps. Max. rear drive torque:max. torque allowed from rear pump. | |||||
| input shaft | max. input torque lbs-in.(Nm) | rear mounting pad | rear drive coupling (spline) | max. rear drive torque lbs-in.(Nm) | |
| PVT6 | SAE-19-1 (A) key | 1125 (127,1) | SAE-82-2 (A) | SAE-16-4 (A) | 1125 (127,1) |
| SAE-22-4 (B) spline | 2025 (228,8) | SAE-22-4 (B) | 1125 (127,1) | ||
| PVT10 | SAE-22-1 (B) key | 1680 (189,8) | SAE-82-2,101-2 (A,B) | SAE-16-4 (A) | 1680 (189,8) |
| SAE-22-4 (B) spline | 2550 (288,1) | SAE-22-4 (B) | 1925 (217,5) | ||
| PVT15 | SAE-22-1 (B) key | 1680 (189,8) | SAE-82-2,101-2 (A,B) | SAE-16-4 (A) | 1680 (189,8) |
| SAE-22-4 (B) spline | 2185 (246,9) | SAE-22-4 (B) | 2000 (226) | ||
| SAE-25-1 (B-B) key | 2850 (332) | SAE-25-4 (B-B) | 2000 (226) | ||
| SAE-25-4 (B-B) spline | 3825 (432,2) | ||||
| PVT20 | SAE-32-1 (C) key | 4675 (528,3) | SAE-82-2,101-2,127-2 (A,B,C) | SAE-16-4 (A) | 3850 (435) |
| PVR20 | SAE-32-4 (C) spline | 4675 (528,3) | SAE-22-4 (B) | 3850 (435) | |
| SAE-25-4 (B-B) | |||||
| SAE-32-4 (C) | |||||
| PVT29 | SAE-32-1 (C) key | 4880 (551,4) | SAE-82-2,101-2,127-2 (A,B,C) | SAE-16-4 (A) | 3850 (435) |
| SAE-32-4 (C) spline | 6300 (711,9) | SAE-22-4 (B) | 3850 (435) | ||
| SAE-25-4 (B-B) | |||||
| SAE-32-4 (C) | |||||
| PVT38 | SAE-38-4 (CC) spline | 6501 (735) | SAE -82-2,101-2,127-2 (A,B,C) | SAE-16-4 (A) | 3007 (340) |
| SAE-32-1 (C) key | 6501 (735) | SAE-22-4 (B) | |||
| SAE-25-4 (B-B) | |||||
| SAE-32-4 (C) | |||||
| SAE-38-4 (C-C) | |||||
| PVT47 | SAE-38-4 (CC) spline | 8756 (990) | SAE-82-2,101-2,127-2 (A,B,C) | SAE-16-4 (A) | 5660 (640) |
| SAE-32-1 (C) key | 8756 (990) | SAE-22-4 (B) | |||
| SAE-25-4 (B-B) | |||||
| SAE-32-4 (C) | |||||
| SAE-38-4 (C-C) | |||||
| PVT64 | SAE-44-4 (D) spline | 11365 (1285) | SAE-82-2,101-2,127-2,127-4,152-4 (A,B,C,D) | SAE-16-4 (A) | 5660 (640) |
| SAE-44-1 (D) key | 11365 (1285) | SAE-22-4 (B) | |||
| SAE-25-4 (B-B) | |||||
| SAE-32-4 (C) | |||||
| SAE-38-4 (C-C) | |||||
| SAE-44-4 (D) | |||||
