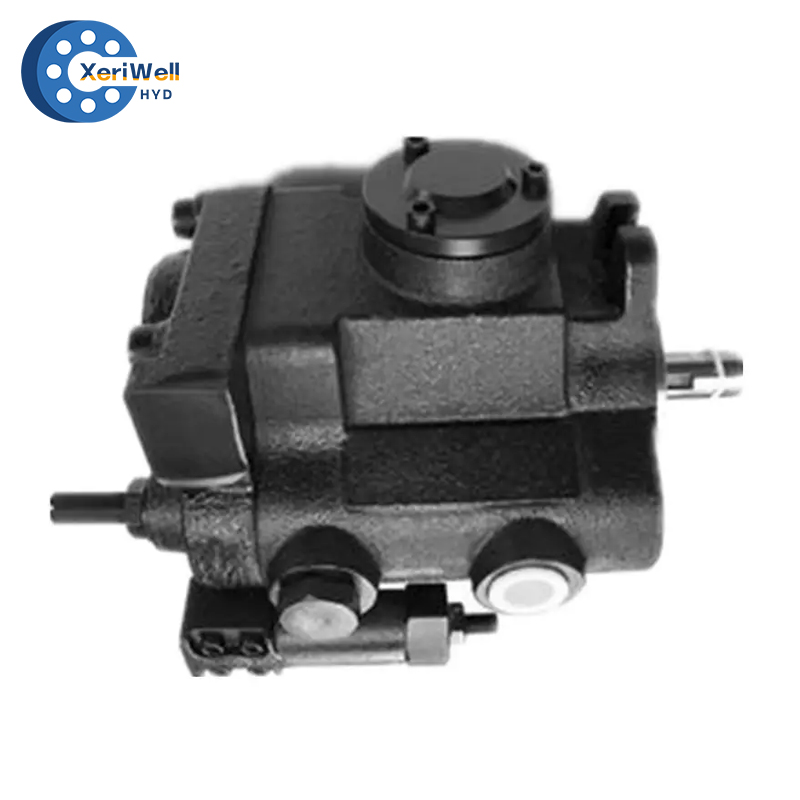

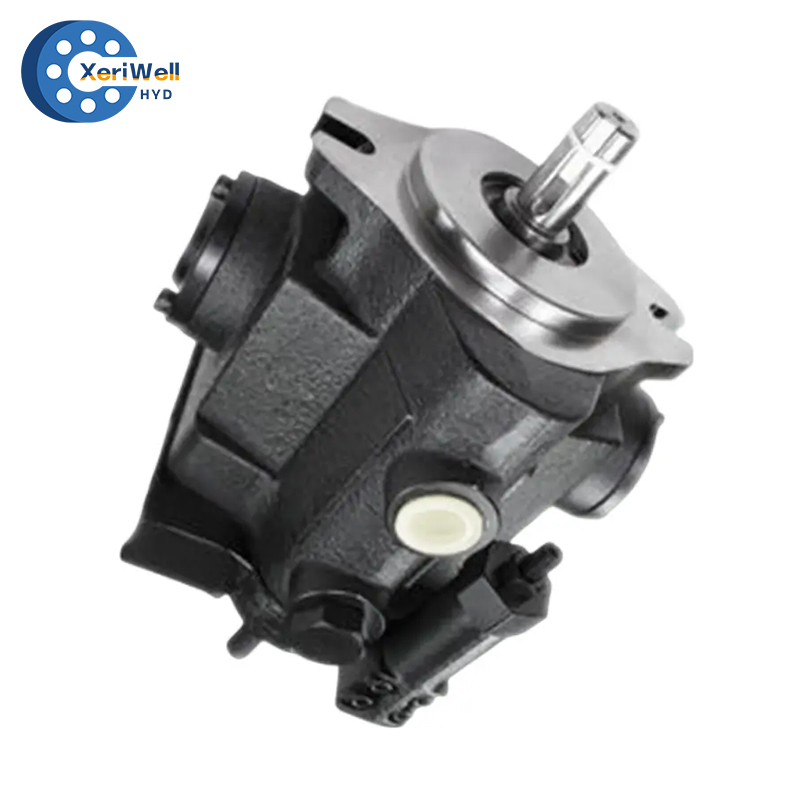

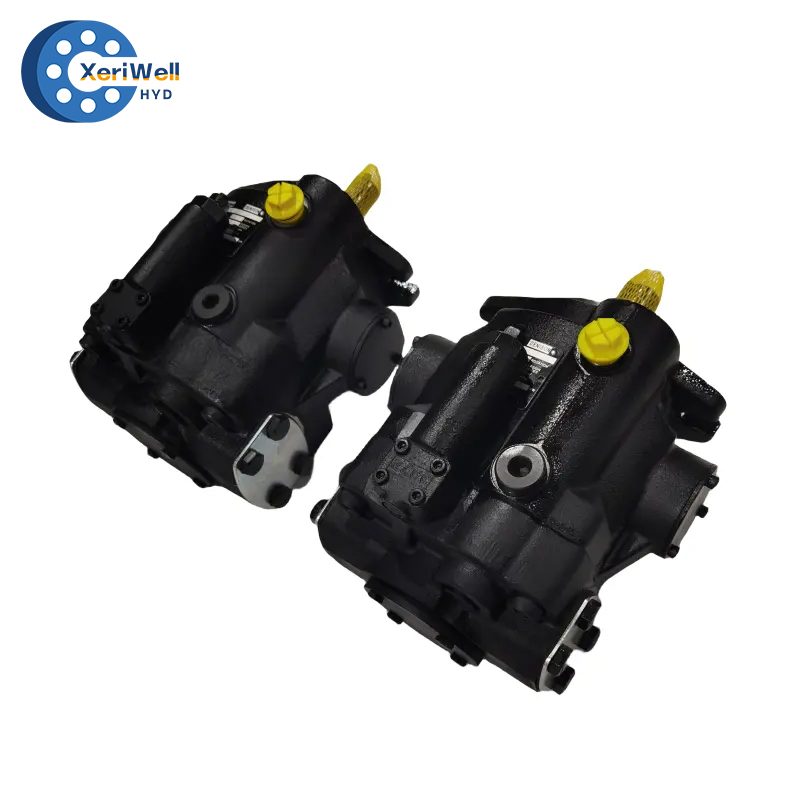

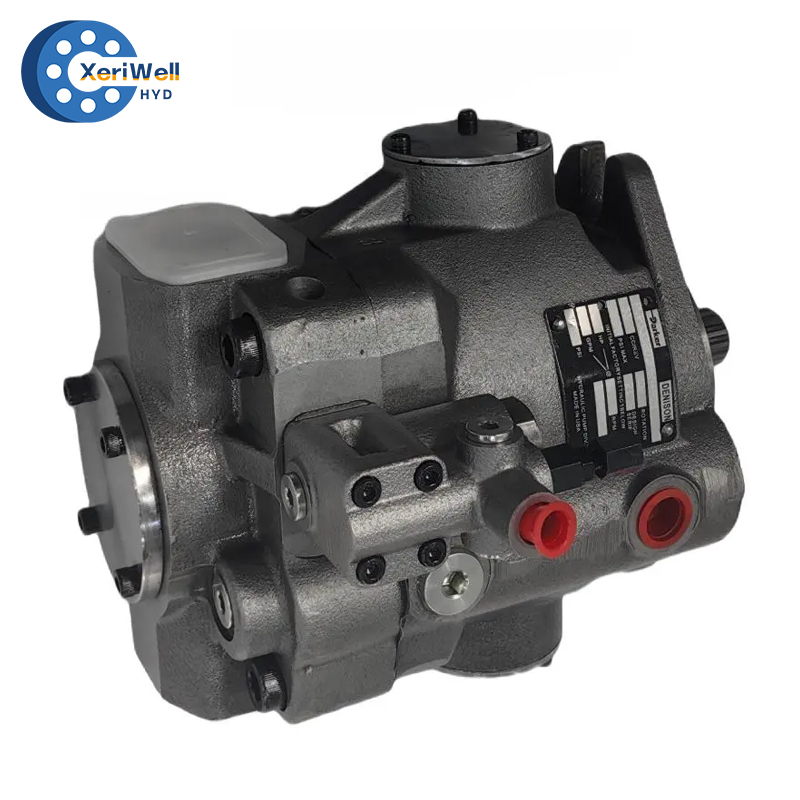

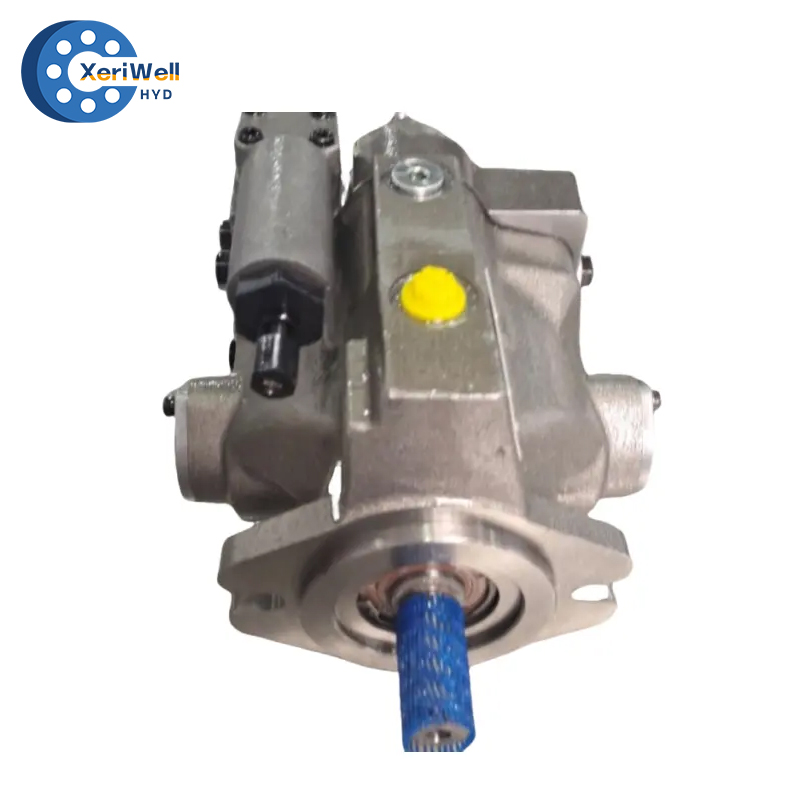

Parker's PVP and PVM series hydraulic pumps and motors are known for their exceptional performance and reliability, widely used in various hydraulic systems.
Key Features:
1）High Efficiency: The PVP and PVM series offer high displacement, ensuring efficient operation under heavy load conditions.
2）Low Noise: Advanced design reduces operational noise, contributing to a quieter working environment.
3）High Pressure Capability: These pumps and motors can handle operating pressures up to 25MPa (approximately 3625 psi), making them ideal for high-demand hydraulic systems.
4）Versatile Options: The PVP series is available in 16, 23, 33, 41, 48, 60, 76, 100, and 140 cm³/rev displacements, while the PVM series offers similar displacement options, catering to various application needs.
5）Compact Design: The compact design allows for easy integration into existing systems, saving space.
In summary, Parker's PVP and PVM series hydraulic pumps and motors combine efficiency, low noise, and high-pressure capabilities, making them a reliable choice for a wide range of hydraulic applications.

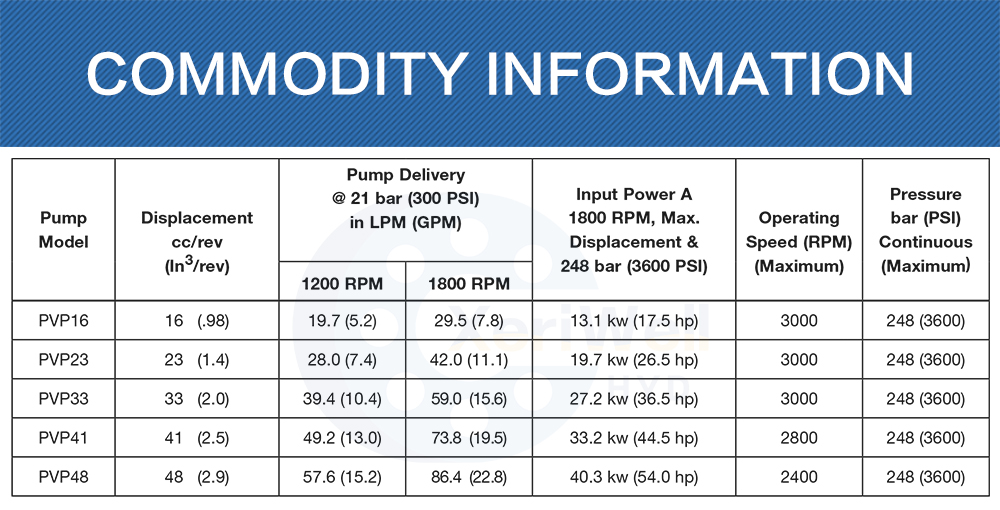

| Pump Model | Displacement cc/rev (ln3/rev) | Pump Delivery @ 21 bar (300 PSI) in LPM (GPM) | Input Power A 1800 RPM,Max. Displacement &248 bar (3600 PSI) | Operating Speed (RPM) (Maximum) | Pressure bar (PSI) Continuous (Maximum) | |
| 1200 RPM | 1800 RPM | |||||
| PVP16 | 16 (.98) | 19.7 (5.2) | 29.5 (7.8) | 13.1 kw (17.5 hp) | 3000 | 248 (3600) |
| PVP23 | 23 (1.4) | 28.0 (7.4) | 42.0 (11.1) | 19.7 kw (26.5 hp) | 3000 | 248 (3600) |
| PVP33 | 33 (2.0) | 39.4 (10.4) | 59.0 (15.6) | 27.2 kw (36.5 hp) | 3000 | 248 (3600) |
| PVP41 | 41 (2.5) | 49.2 (13.0) | 73.8 (19.5) | 33.2 kw (44.5 hp) | 2800 | 248 (3600) |
| PVP48 | 48 (2.9) | 57.6 (15.2) | 86.4 (22.8) | 40.3 kw (54.0 hp) | 2400 | 248 (3600) |
