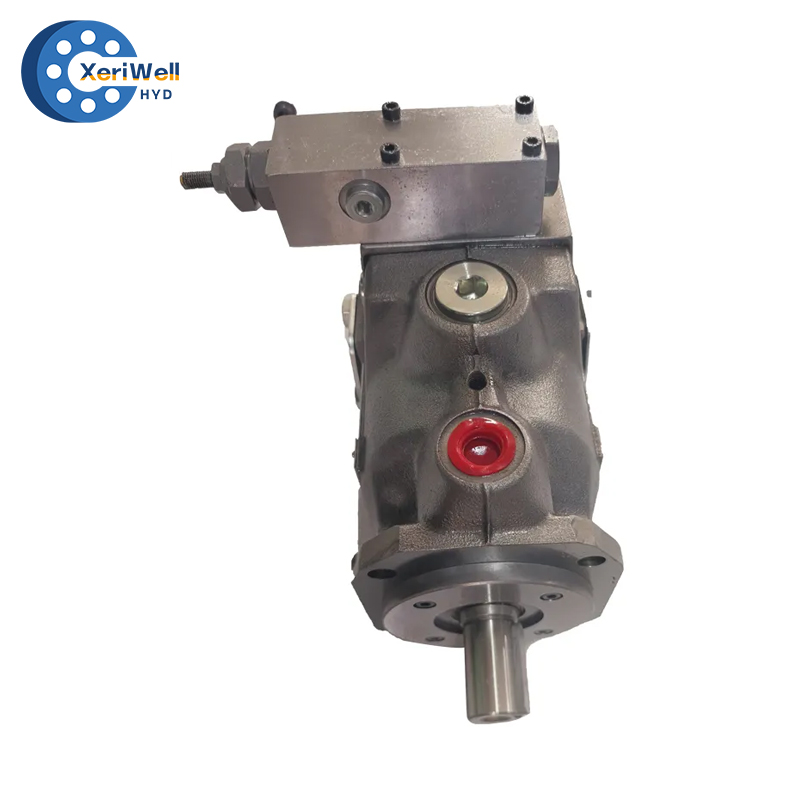

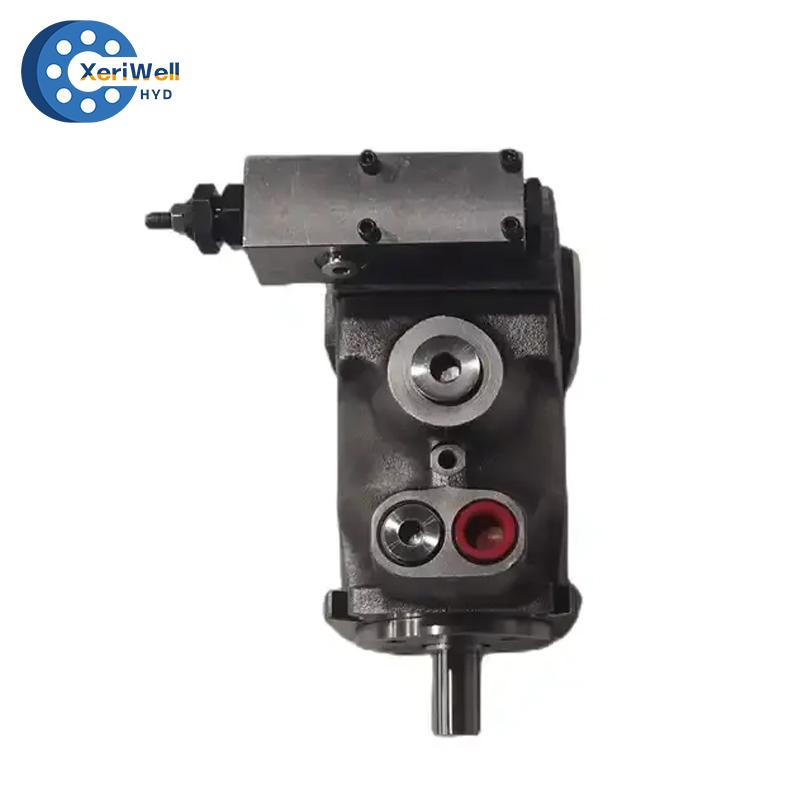

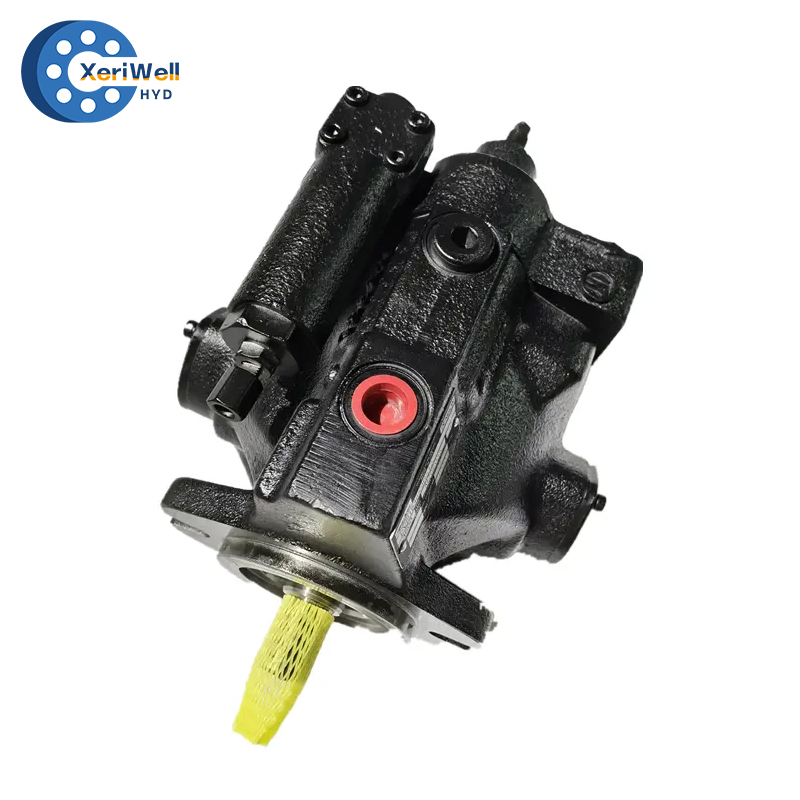

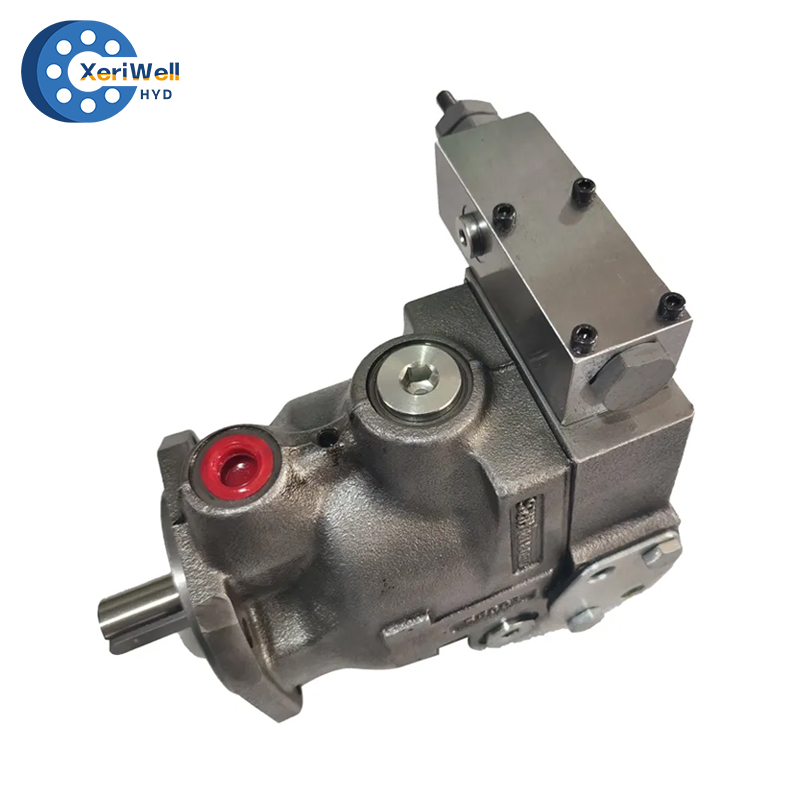

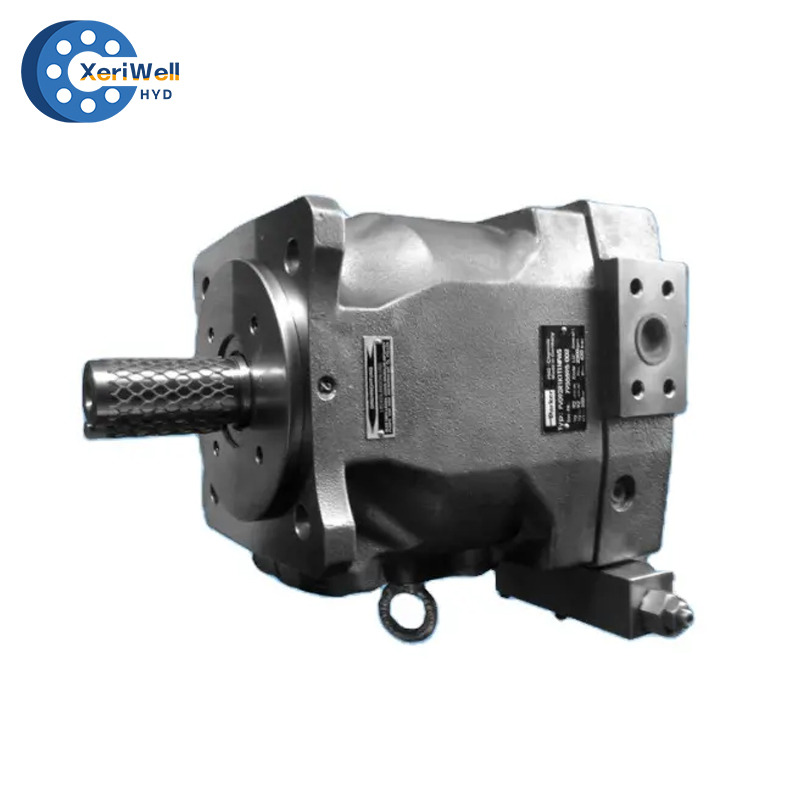

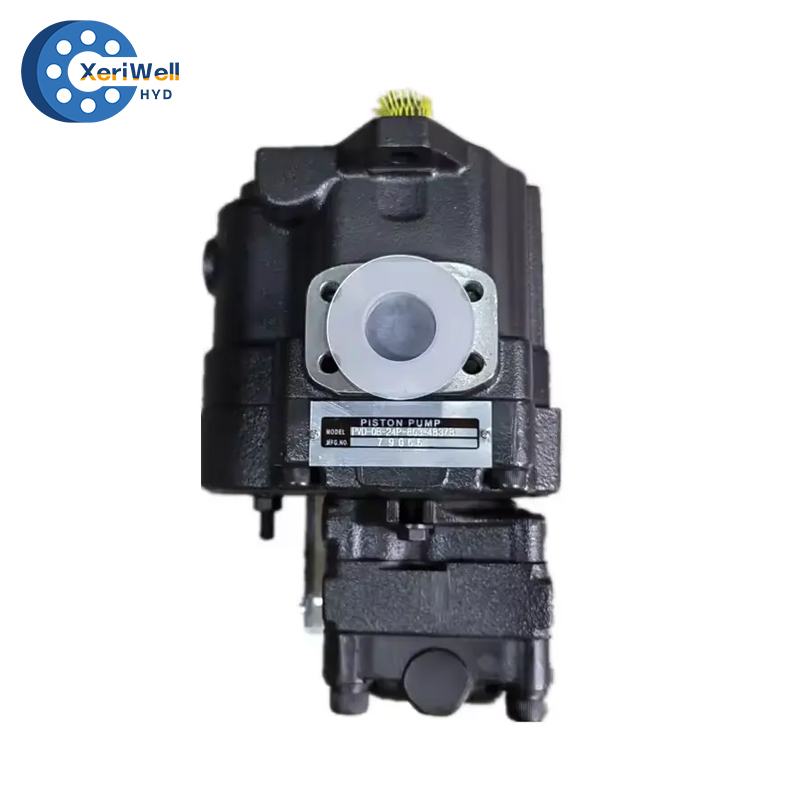

Parker PV series Hydraulic Pump

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Parker's PV series axial piston pumps are engineered for high-performance, variable displacement applications, making them ideal for demanding industrial and marine environments.

Key Features:

1）High Efficiency: Designed for optimal fluid delivery, ensuring efficient operation even under heavy load conditions.

2）Durability: Constructed with robust materials, these pumps are built to withstand high pressures and provide extended service life.

3）Low Noise Operation: Advanced design minimizes operational noise, contributing to a quieter working environment.

4）High Pressure Capability: Capable of handling operating pressures up to 420 bar, suitable for high-demand hydraulic systems.

5）Versatility: Suitable for various applications, including heavy-duty industrial and marine machinery.

In summary, Parker's PV series axial piston pumps combine efficiency, durability, and versatility, making them a reliable choice for a wide range of hydraulic applications.

Type: PV016/020/023/028/032/040/046/063/080/092/140/180/270

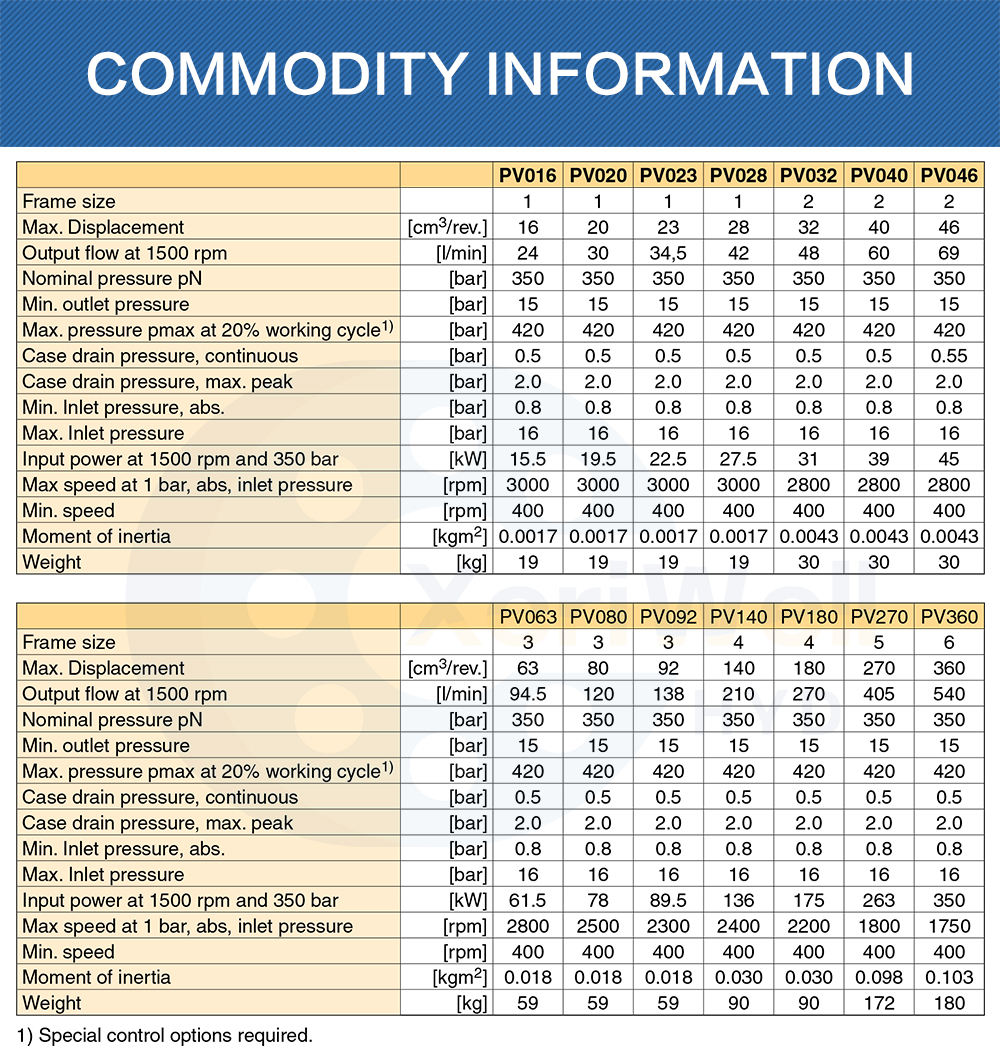

详情图

		PV016	PV020	PV023	PV028	PV032	PV040	PV046
Frame size		1	1	1	1	2	2	2
Max. Displacement	[cm3/rev.]	16	20	23	28	32	40	46
Output flow at 1500 rpm	[l/min]	24	30	34,5	42	48	60	69
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure,continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.55
Case drain pressure,max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure,abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	15.5	19.5	22.5	27.5	31	39	45
Max speed at 1 bar,abs,inlet pressure	[rpm]	3000	3000	3000	3000	2800	2800	2800
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.0017	0.0017	0.0017	0.0017	0.0043	0.0043	0.0043
Weight	[kg]	19	19	19	19	30	30	30

		PV063	PV080	PV092	PV140	PV180	PV270	PV360
Frame size		3	3	3	4	4	5	6
Max. Displacement	[cm3/rev.]	63	80	92	140	180	270	360
Output flow at 1500 rpm	[l/min]	94.5	120	138	210	270	405	540
Nominal pressure pN	[bar]	350	350	350	350	350	350	350
Min. outlet pressure	[bar]	15	15	15	15	15	15	15
Max. pressure pmax at 20% working cycle1)	[bar]	420	420	420	420	420	420	420
Case drain pressure,continuous	[bar]	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Case drain pressure,max. peak	[bar]	2	2	2	2	2	2	2
Min. Inlet pressure,abs.	[bar]	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Max. Inlet pressure	[bar]	16	16	16	16	16	16	16
Input power at 1500 rpm and 350 bar	[kW]	61.5	78	89.5	136	175	263	350
Max speed at 1 bar,abs,inlet pressure	[rpm]	2800	2500	2300	2400	2200	1800	1750
Min. speed	[rpm]	400	400	400	400	400	400	400
Moment of inertia	[kgm2]	0.018	0.018	0.018	0.03	0.03	0.098	0.103
Weight	[kg]	59	59	59	90	90	172	180
1) Special control options required.
1) Special control options required.
