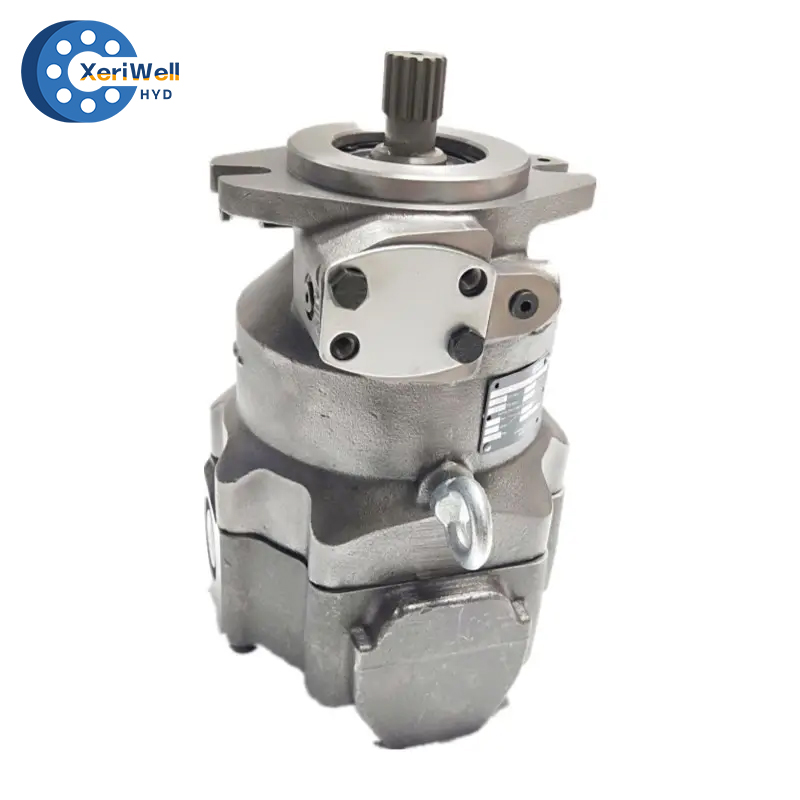

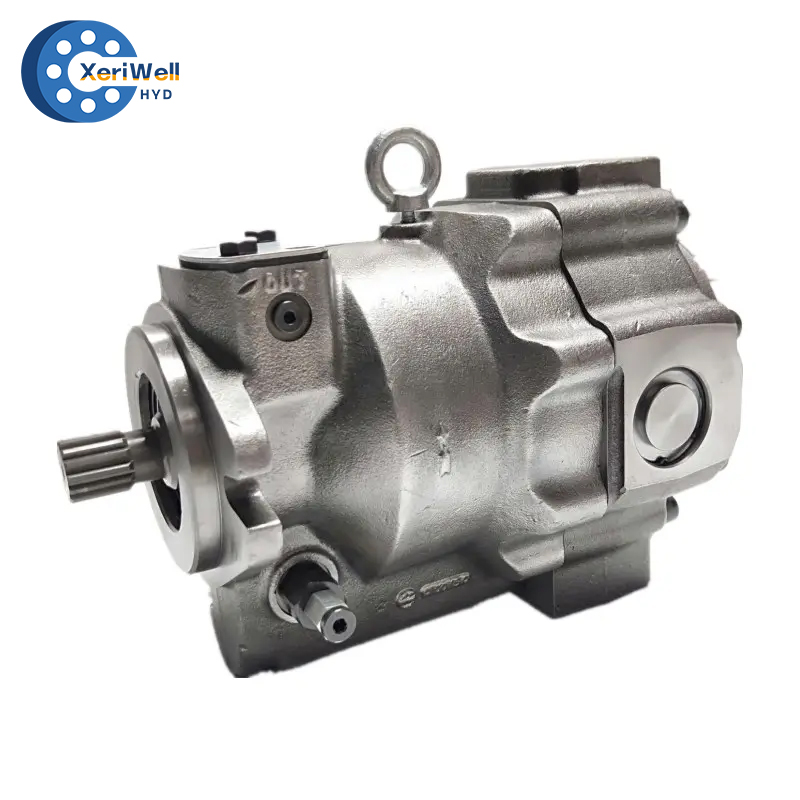

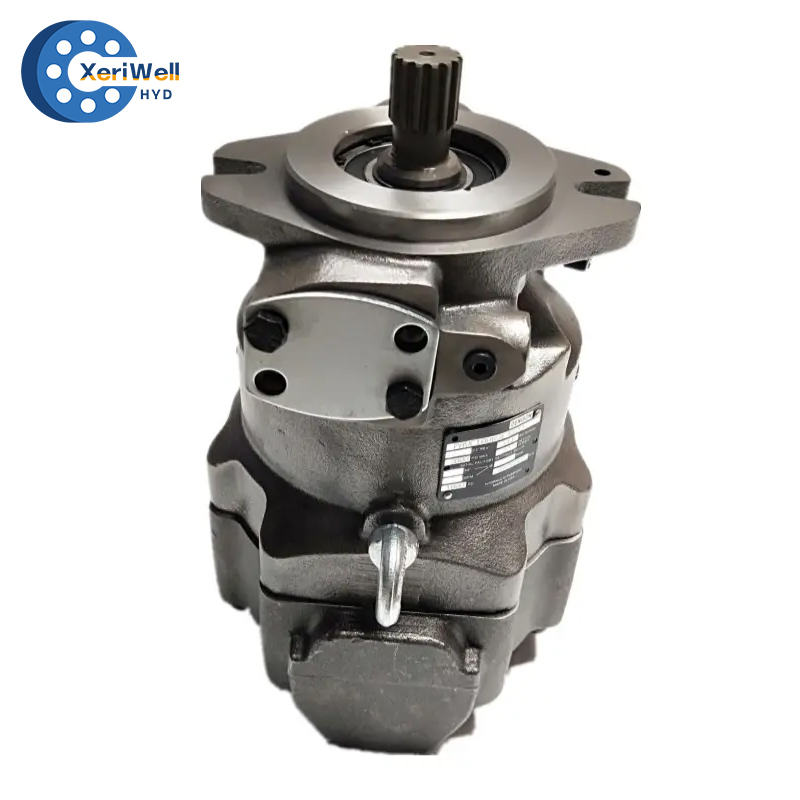

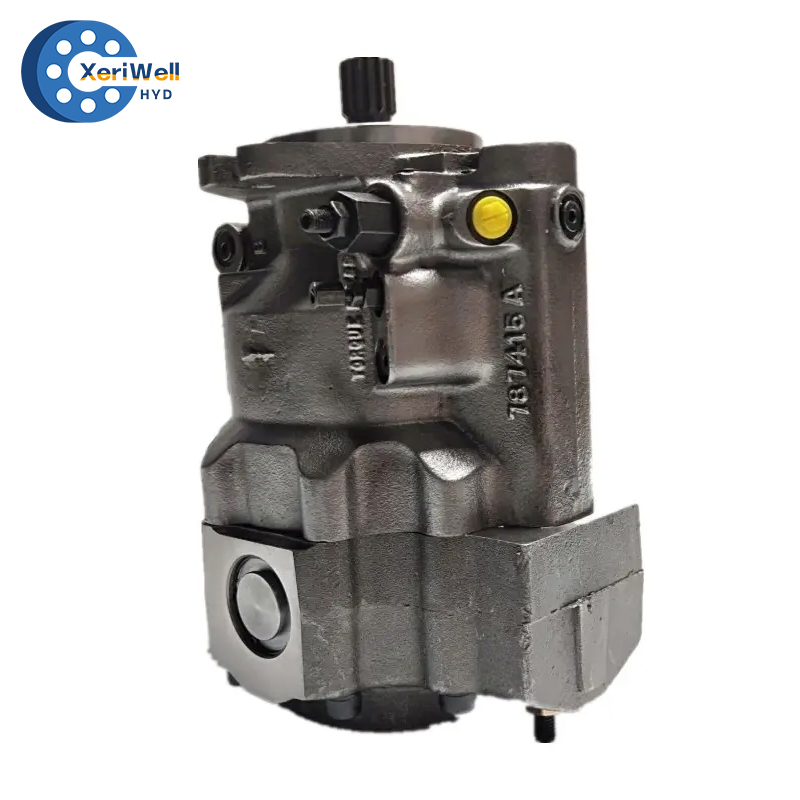

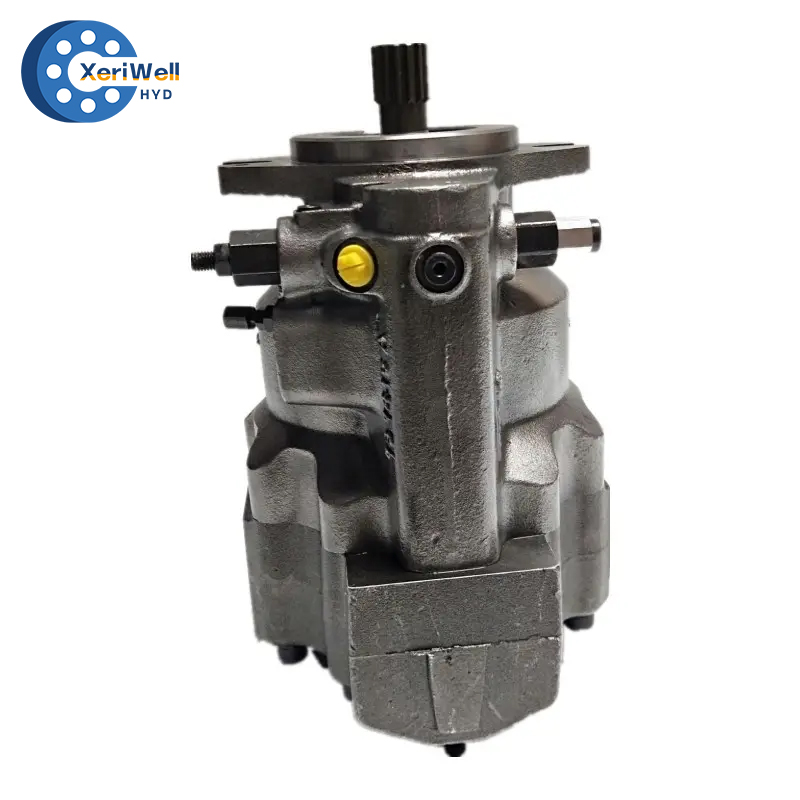

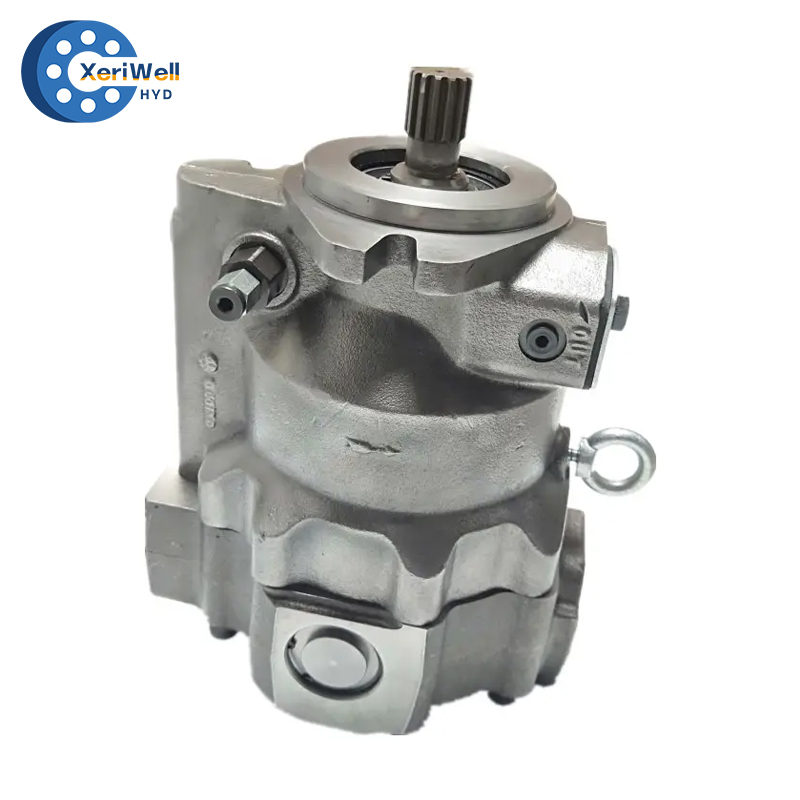

Parker's PAVC series axial piston pumps are engineered for high-performance, variable displacement applications, making them ideal for demanding industrial and mobile machinery.
Key Features:
1）High Efficiency: The PAVC series offers high volumetric efficiency, ensuring optimal fluid delivery and energy savings.
2）Durability: Constructed with robust materials, these pumps are designed to withstand high pressures and provide extended service life.
3）Low Noise Operation: Advanced design minimizes operational noise, contributing to a quieter working environment.
4）High Pressure Capability: The PAVC series can handle operating pressures up to 300 bar, suitable for high-demand hydraulic systems.
5）Versatility: Available in various displacement options, including 33, 38, 65, and 100 cm³/rev, the PAVC series caters to a wide range of application needs.
In summary, Parker's PAVC series axial piston pumps combine efficiency, durability, and versatility, making them a reliable choice for a wide range of hydraulic applications.

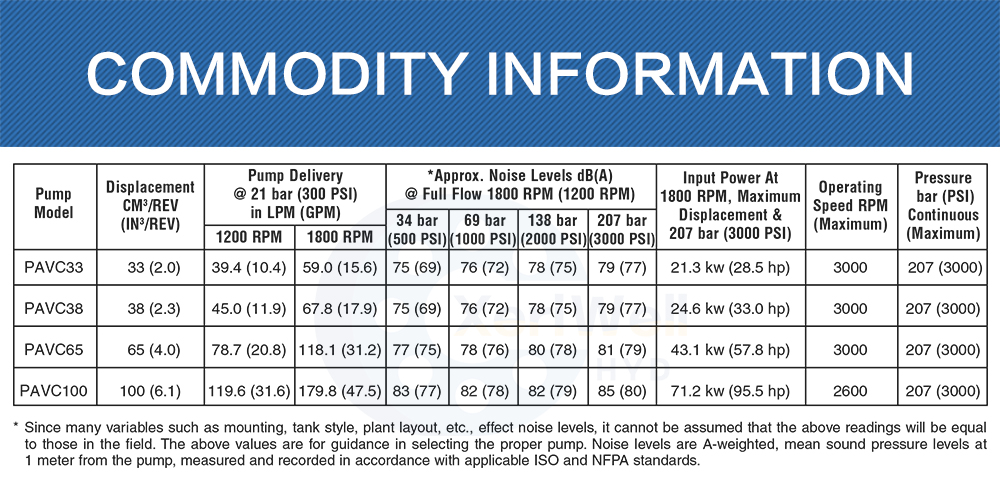

| Pump Model | Displacement CM3/REV (IN3/REV) | Pump Delivery @ 21 bar (300 PSI) in LPM (GPM) | *Approx. Noise Levels dB(A) @ Full Flow 1800 RPM (1200 RPM) | Input Power At 1800 RPM,Maximum Displacement &207 bar (3000 PSI) | Operating Speed RPM (Maximum) | Pressure bar (PSI) Continuous (Maximum) | ||||
| 34 bar (500 PSI) | 69 bar (1000 PSI) | 138 bar (2000 PSI) | 207 bar (3000 PSI) | |||||||
| 1200 RPM | 1800 RPM | |||||||||
| PAVC33 | 33 (2.0) | 39.4 (10.4) | 59.0 (15.6) | 75 (69) | 76 (72) | 78 (75) | 79 (77) | 21.3 kw (28.5 hp) | 3000 | 207 (3000) |
| PAVC38 | 38 (2.3) | 45.0 (11.9) | 67.8 (17.9) | 75 (69) | 76 (72) | 78 (75) | 79 (77) | 24.6 kw (33.0 hp) | 3000 | 207 (3000) |
| PAVC65 | 65 (4.0) | 78.7 (20.8) | 118.1 (31.2) | 77 (75) | 78 (76) | 80 (78) | 81 (79) | 43.1 kw (57.8 hp) | 3000 | 207 (3000) |
| PAVC100 | 100 (6.1) | 119.6 (31.6) | 179.8 (47.5) | 83 (77) | 82 (78) | 82 (79) | 85 (80) | 71.2 kw (95.5 hp) | 2600 | 207 (3000) |
| * Since many variables such as mounting,tank style,plant layout,etc.,effect noise levels,it cannot be assumed that the above readings will be equal to those in the field. The above values are for guidance in selecting the proper pump. Noise levels are A-weighted,mean sound pressure levels at 1 meter from the pump,measured and recorded in accordance with applicable ISO and NFPA standards. | ||||||||||
