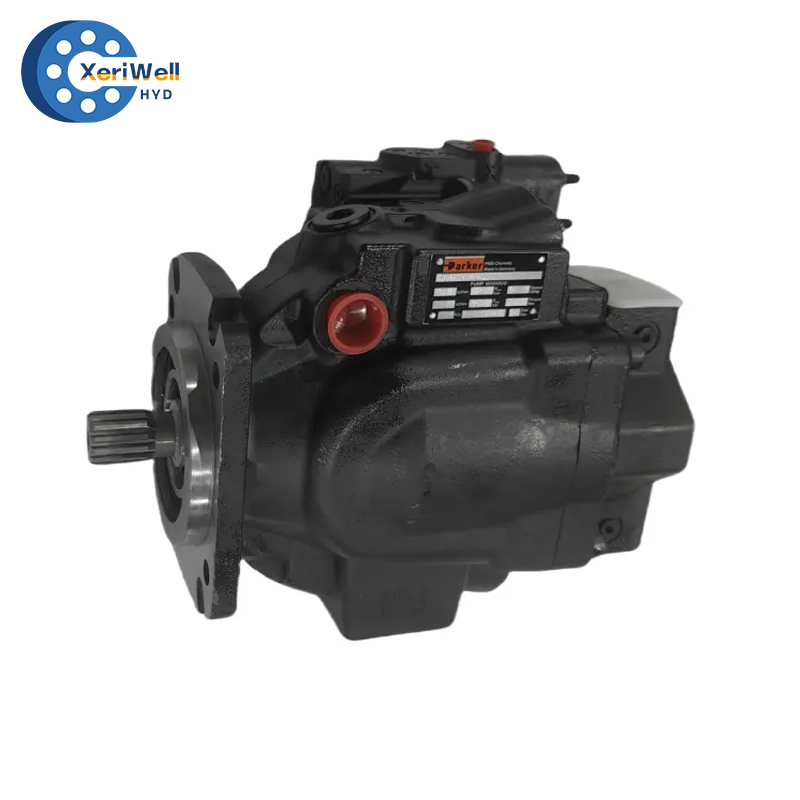

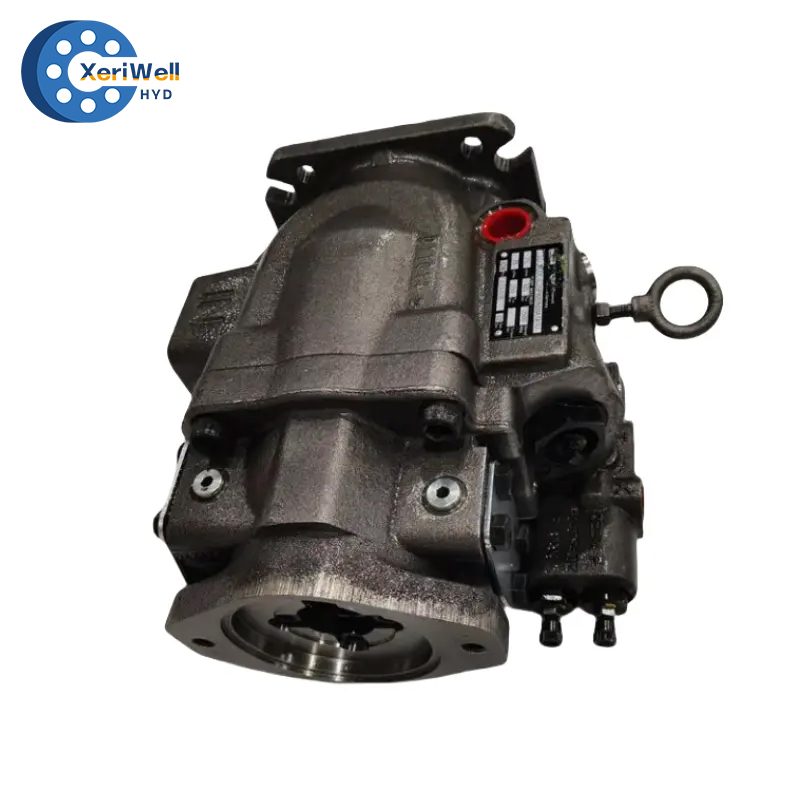

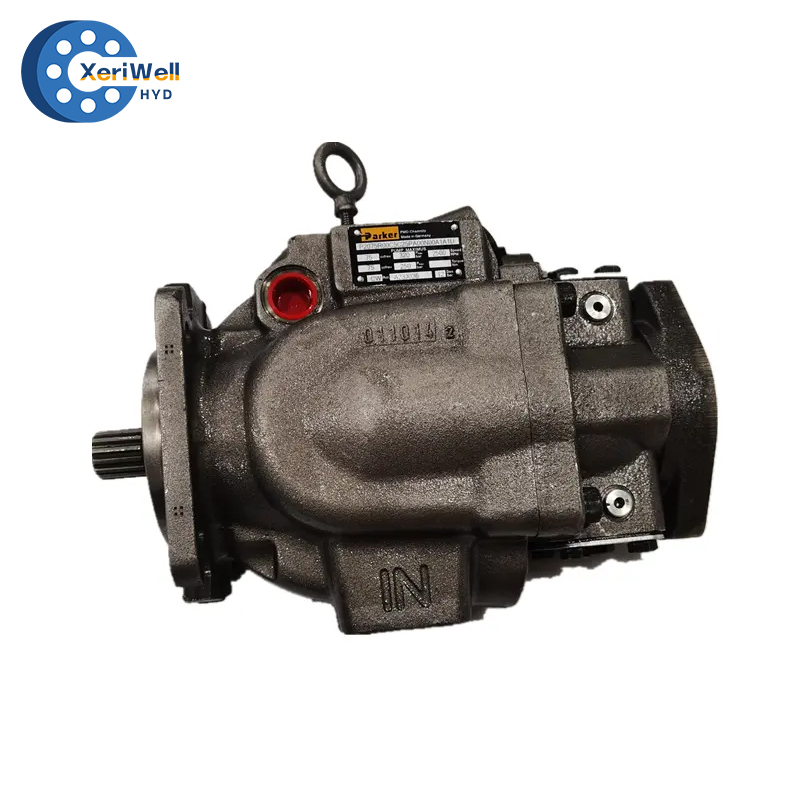

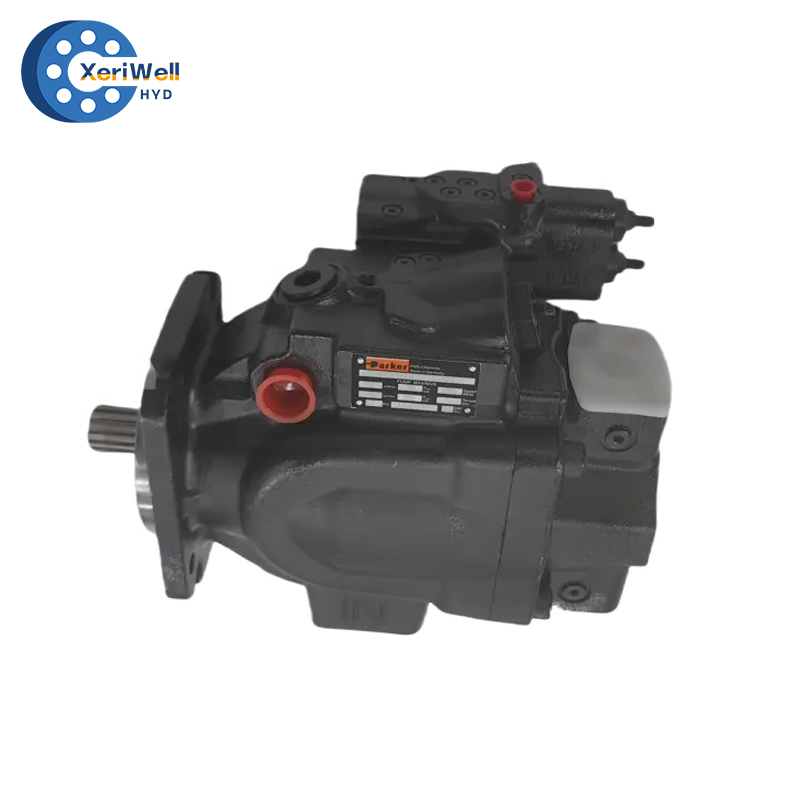

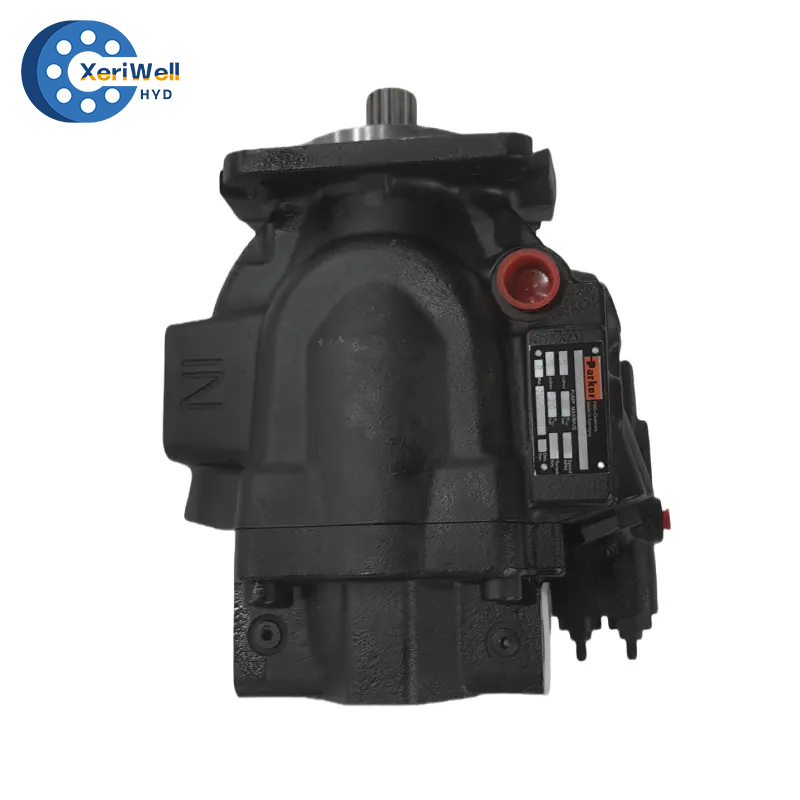

Parker's P2 and P3 series axial piston pumps are widely used in various hydraulic systems due to their high performance and reliability.
Key Features:
1）High Efficiency: The P2 and P3 series pumps offer high displacement, ensuring efficient operation even under heavy load conditions.
2）Low Noise: Advanced design minimizes operational noise, contributing to a quieter working environment.
3）High Pressure Capability: These pumps can handle up to 280 bar of operating pressure, making them suitable for high-demand hydraulic systems.
4）Versatile Options: The P2 series is available in 60, 75, 105, and 145 cm³/rev displacements, while the P3 series offers 105 and 145 cm³/rev displacements, catering to various application needs.
5）Compact Design: The compact design allows for easy integration into existing systems, saving space.
In summary, Parker's P2 and P3 series axial piston pumps combine efficiency, low noise, and high pressure capabilities, making them a reliable choice for a wide range of hydraulic applications.

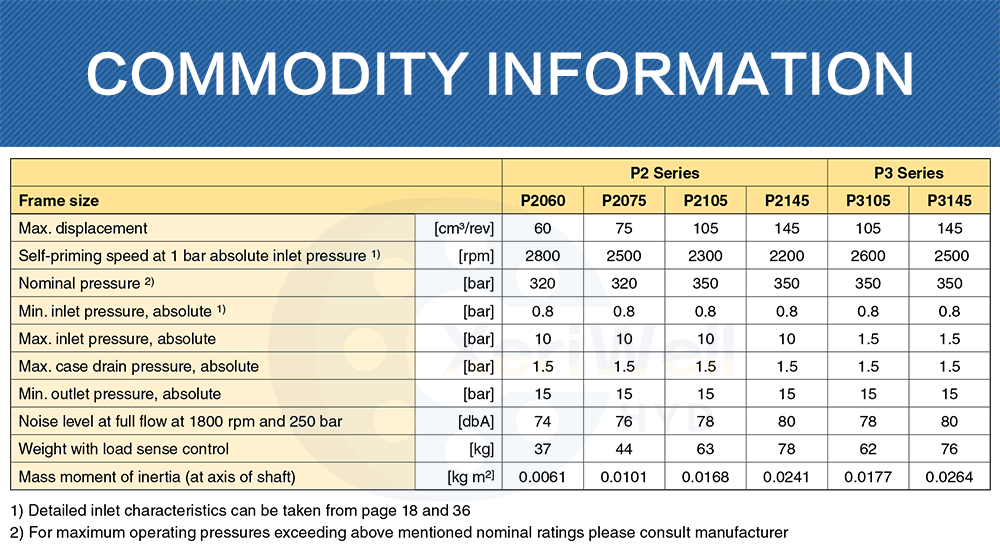

| P2 Series | P3 Series | ||||||
| Frame size | P2060 | P2075 | P2105 | P2145 | P3105 | P3145 | |
| Max. displacement | [cm3/rev] | 60 | 75 | 105 | 145 | 105 | 145 |
| Self-priming speed at 1 bar absolute inlet pressure1) | [rpm] | 2800 | 2500 | 2300 | 2200 | 2600 | 2500 |
| Nominal pressure2) | [bar] | 320 | 320 | 350 | 350 | 350 | 350 |
| Min. inlet pressure,absolute1) | [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Max. inlet pressure,absolute | [bar] | 10 | 10 | 10 | 10 | 1.5 | 1.5 |
| Max. case drain pressure,absolute | [bar] | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Min. outlet pressure,absolute | [bar] | 15 | 15 | 15 | 15 | 15 | 15 |
| Noise level at full flow at 1800 rpm and 250 bar | [dbA] | 74 | 76 | 78 | 80 | 78 | 80 |
| Weight with load sense control | [kg] | 37 | 44 | 63 | 78 | 62 | 76 |
| Mass moment of inertia (at axis of shaft) | [kg m2] | 0.0061 | 0.0101 | 0.0168 | 0.0241 | 0.0177 | 0.0264 |
| 1) Detailed inlet characteristics can be taken from page 18 and 36 2) For maximum operating pressures exceeding above mentioned nominal ratings please consult manufacturer | |||||||
