| Quantity: | |
|---|---|
BME2
Xeriwell or Others

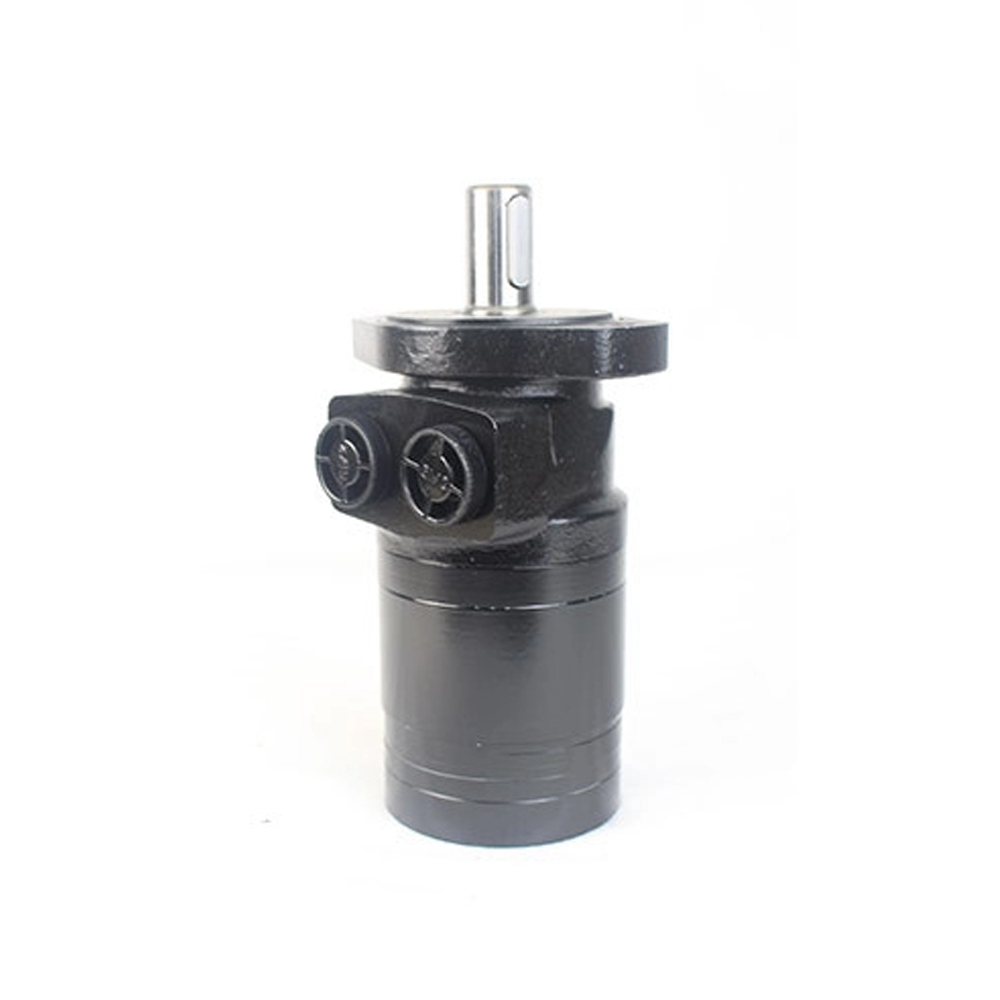

| Item: | PARKER Torqmotor | OEM #: | TE0250 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 250 Ml/r |
| Mounting Flange: | 2 BOLTS | Shaft Type: | 1INCH Keyed |
| Highlight: | parker orbit hydraulic motor,te0250 orbit hydraulic motor,parker orbit hydro motor | ||
Details specifications:
| Series: | TE |
| Shaft: | 1" Keyed |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0250 |
| Mounting: | SAE "A" 2 Bolt |
| Ports: | G1/2 |
| Geometric Displacement: | 250 cm3/rev |
| Maximum Speed: | 287rev/min |
| Maximum Oil Flow (continuous / intermittent): | 57 lpm / 75 lpm |
| Max. Differential Pressure (continuous / intermittent): | 110 bar / 155 bar |
| Maximum Supply Pressure: | 180 bar |
| Maximum Torque - Continuous / Intermittent: | 381 Nm / 543 Nm |
| Maximum Performance: | 18 KW |
| Minimum Starting Torque - Continuous / Intermittent: | 381 Nm / 543Nm |
| Item: | PARKER Torqmotor | OEM #: | TE0250 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 250 Ml/r |
| Mounting Flange: | 2 BOLTS | Shaft Type: | 1INCH Keyed |
| Highlight: | parker orbit hydraulic motor,te0250 orbit hydraulic motor,parker orbit hydro motor | ||
Details specifications:
| Series: | TE |
| Shaft: | 1" Keyed |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0250 |
| Mounting: | SAE "A" 2 Bolt |
| Ports: | G1/2 |
| Geometric Displacement: | 250 cm3/rev |
| Maximum Speed: | 287rev/min |
| Maximum Oil Flow (continuous / intermittent): | 57 lpm / 75 lpm |
| Max. Differential Pressure (continuous / intermittent): | 110 bar / 155 bar |
| Maximum Supply Pressure: | 180 bar |
| Maximum Torque - Continuous / Intermittent: | 381 Nm / 543 Nm |
| Maximum Performance: | 18 KW |
| Minimum Starting Torque - Continuous / Intermittent: | 381 Nm / 543Nm |
