Parker Orbit Hydraulic Motor Sae A" 2 Bolt 125 Cm3/Rev 1" Keyed Te Series
You are here: Home » Products » Hydraulic Motor » Ungrouped » Parker Orbit Hydraulic Motor Sae A" 2 Bolt 125 Cm3/Rev 1" Keyed Te Series

loading

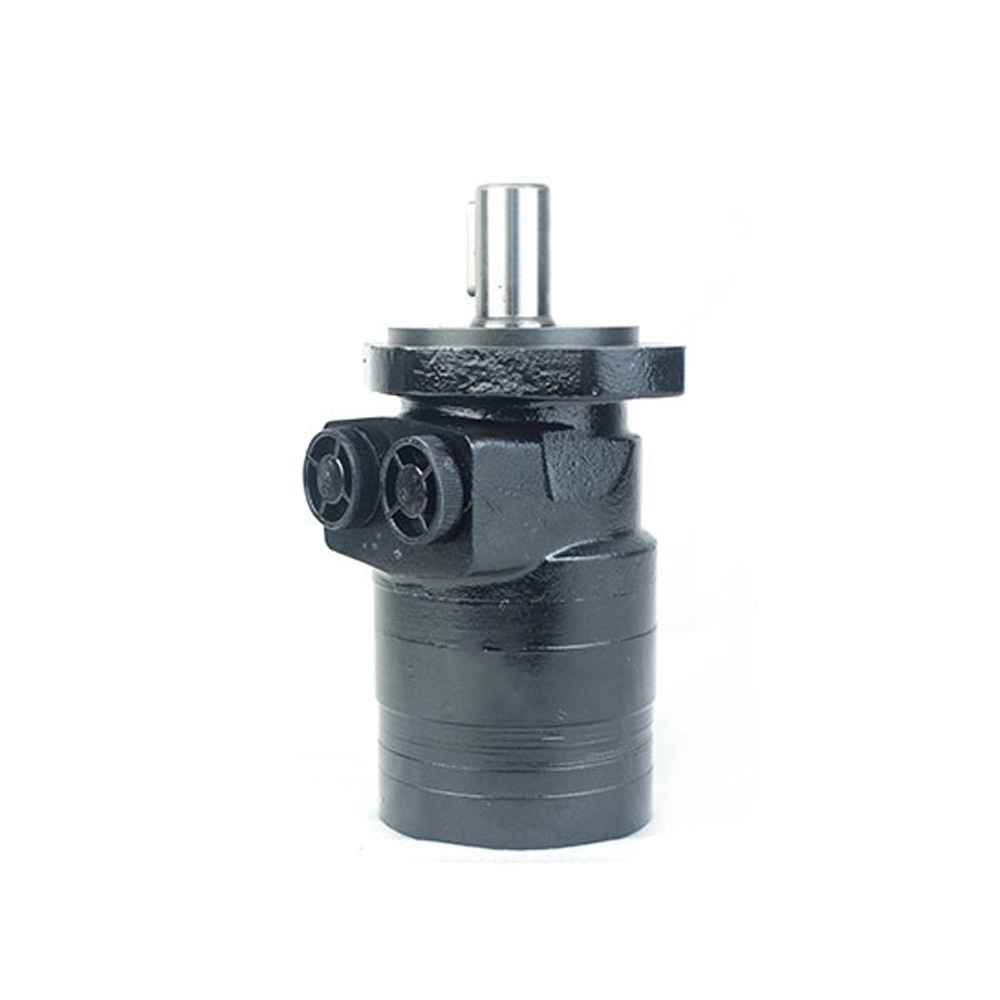

Parker Orbit Hydraulic Motor Sae A" 2 Bolt 125 Cm3/Rev 1" Keyed Te Series

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BME2

  • Xeriwell or Others

Item: Torqmotor OEM #: TE0125
Manufacturer: Xeriwell
Displacement: 125ml/r
Mounting Flange: SAE-2 BOLT FLANGE Shaft Type: 25.4MM Keyed
Highlight:

parker te series orbit hydraulic motor

,

125ml/r orbit hydraulic motor

,

parker te series motor orbit hydraulic


Parker Torqmotor SAE A" 2 Bolt 125 Cm3/Rev 1" Keyed TE Series hydraulic motors

Details specifications

Series: TE
Shaft: 1" Keyed
Rotation: Standard
Displacement (cm3/rev): 0125
Mounting: SAE "A" 2 Bolt
Ports: G1/2
Geometric Displacement: 125 cm3/rev (10 in3/rev)
Maximum Speed: 441rev/min
Maximum Oil Flow (continuous / intermittent): 45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent): 140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure: 200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent: 245 Nm / 335 Nm
Maximum Performance: 14.1 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent: 245 Nm / 335Nm (3637 lb in)

Hydraulic
