| Quantity: | |
|---|---|

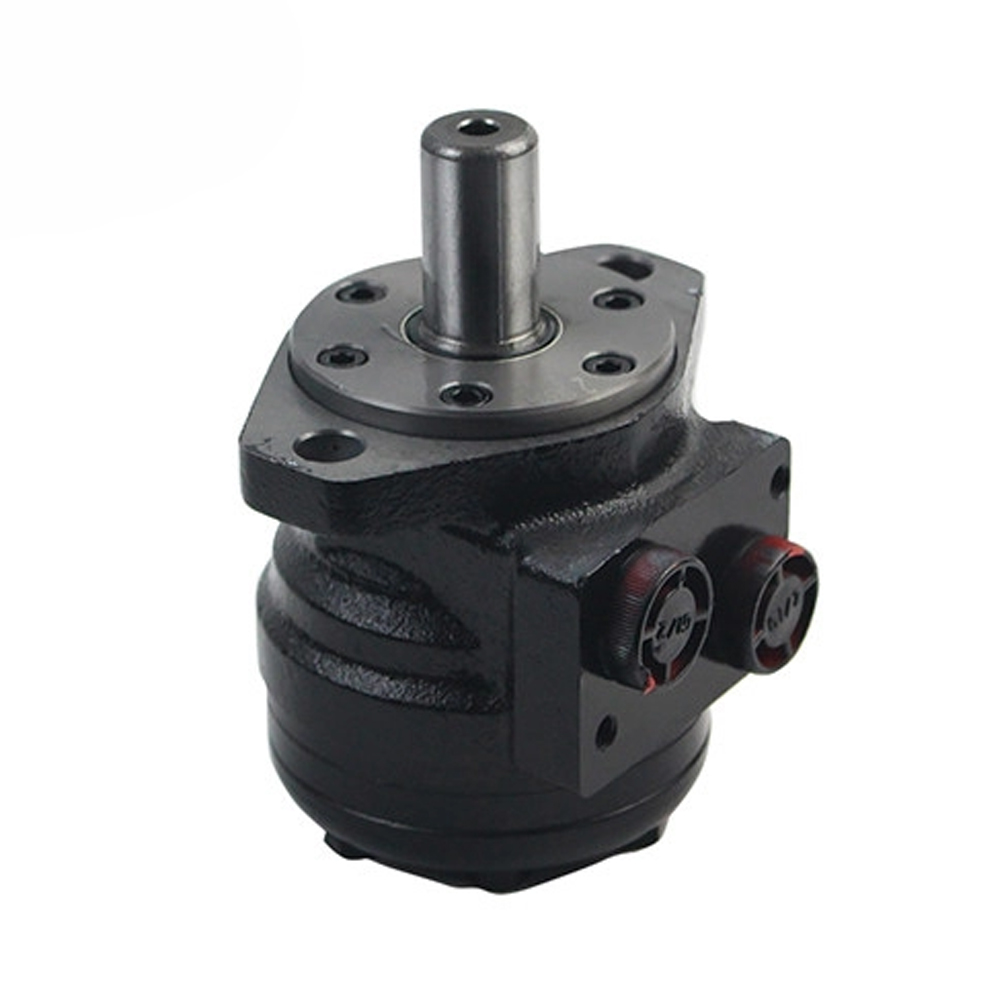

OK-050-2-A-D
Xeriwell or Others
| Type: | Orbital Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | OK-050-2-A-D | Displacement: | 50 Cc/r |
| Max Speed: | 780 Rpm | Max Torque: | 100Nm Cont. |
| Max Output: | 9KW Cont. | Max Oil Flow: | 14 L/min |
| More Displacement: | 36 Cc/r - 375 Cc/r | ||
| Highlight: | LSHT Hydraulic Motor,Parker Hydraulic Motor,Nichols Hydraulic Motor | ||
Parker 110A Hydraulic Motor 50 Ml/R 25mm Shaft Port G 1/2
Quick details:
OK-050-2-A-D
| Product | Orbital Hydraulic Motor |
| Model No. | OK-50-2-A-D |
| Flange | 2 bolt mounting |
| Shaft | straight 25mm, parllel key 8*7*32 |
| Port | Manifold G1/2, 4-M8, G1/4 |
Specification:
| Code | Displacement/ [cm/rev] | Max.Speed/ [rpm] | Max.Torque/[Nm] | Max.output/[kW] | Max.pressure/[MPa] | Max.Oil Flow[L/min] | |||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OK 36 | 36 | 1111 | 66 | 83 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 50 | 51.7 | 780 | 100 | 129 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 80 | 81.5 | 744 | 158 | 196 | 10.4 | 12.6 | 14 | 17.5 | 60 |
| OK 100 | 102 | 595 | 200 | 242 | 10.8 | 12.8 | 14 | 17.5 | 60 |
| OK 125 | 127.2 | 480 | 248 | 298 | 10.8 | 12.5 | 14 | 17.5 | 60 |
| OK 160 | 157.2 | 382 | 315 | 384 | 10.4 | 11.5 | 14 | 17.5 | 60 |
| OK 200 | 194.5 | 301 | 339 | 419 | 8.8 | 10.2 | 12.5 | 15.5 | 60 |
| OK 250 | 253.3 | 238 | 403 | 474 | 8.1 | 9.4 | 11 | 14 | 60 |
| OK 315 | 317.5 | 191 | 398 | 498 | 7.4 | 7.8 | 9 | 12.5 | 60 |
| OK 375 | 381.4 | 162 | 373 | 466 | 6.2 | 7.1 | 7.5 | 9 | 60 |
OK series motor are small volume,
economical type,
designed with shaft distribution flow,which adapt the Gerotor gear set design and
provide compact volume, high power and low weight.
Features:
Advanced manufacturing devices for the Gerotor gear set, which provide
small volume, high efficiency and long life.
Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
Applications:
This OK series hydraulic motors is a slow speed high torque type hydraulic motors, they are widely used on Farmland irrigation winch, Towing and mooring winches, Cable Laying winch, Oceanographic research winch, Nautical equipment and winches for fishing boats, Winch as an anchor, Capestani, Special systems for subsea pipelay, Winch Wood from deforestation, Wood processing and cutting machines, Agricultural and forestry machinery, Construction machinery and platform, Ground care and Mowing machinery, etc.
