| Product Name: | Hydrostatic Unit | Oil Port: | G1/2 |
|---|---|---|---|
| Quality: | Oem Quality | Material: | Metal |
| Displacement: | 100cc/125cc/160cc | Applications: | Tractors |
| Highlight: | orbitrol steering hydrostatic unit,81180300 hydrostatic unit | ||

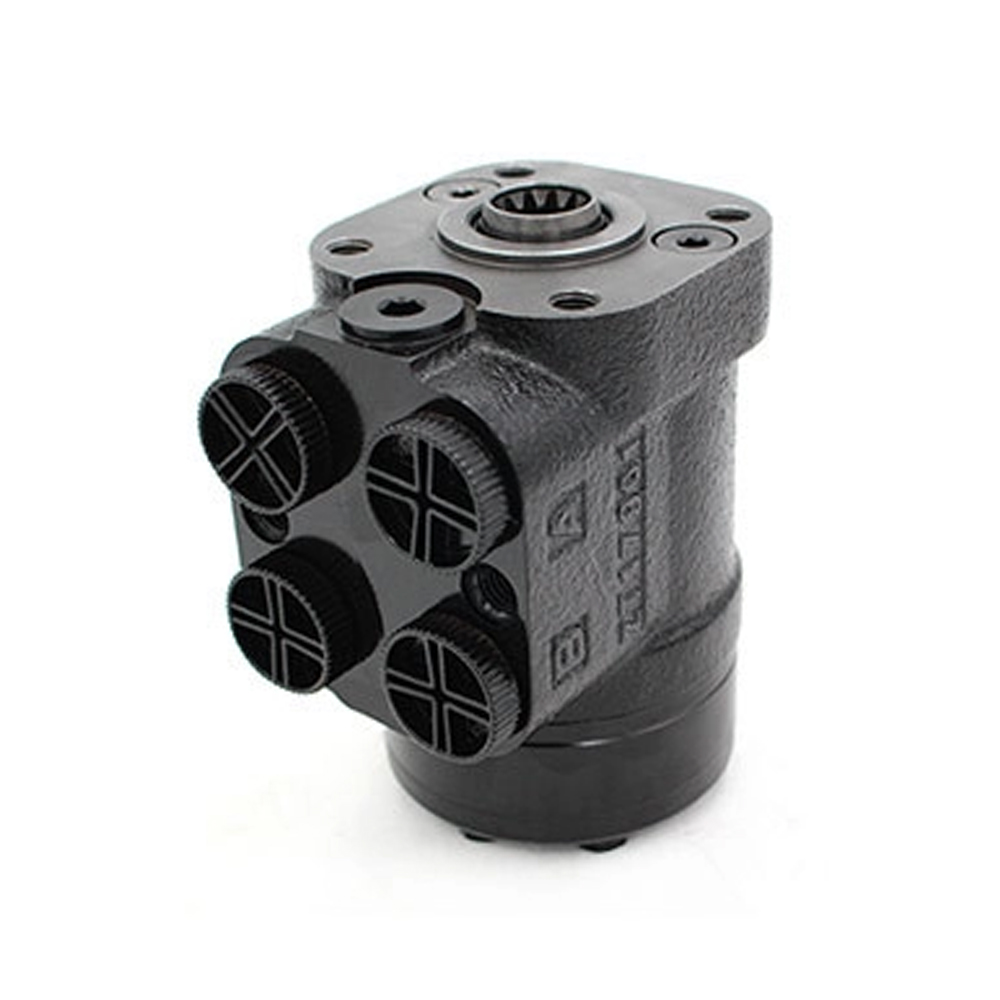

ORBITROL STEERING HYDROSTATIC UNIT (4X4 DRIVE-AGCO ORIGINAL) VALTRA AND MASSEY FERGUSON - 81180300
Xeriwell hydraulic supply ospc125,ospc160,ospc100 series hydraulic steering units,
used on VALTRA AND MASSEY FERGUSON tractors
the OEM NUMBER ---81180300
also for number 047153, 047370, 192060, 811803
same quality, high performance
specification:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
