| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Features: | Match Than ,M+S Hydraulic Steering Units | Product Name: | Tractor Hydraulic Steering Units |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 1000cc |
| Application: | Wheel Loader,Excavator,Tractor | Model Number: | 101s-80cc |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

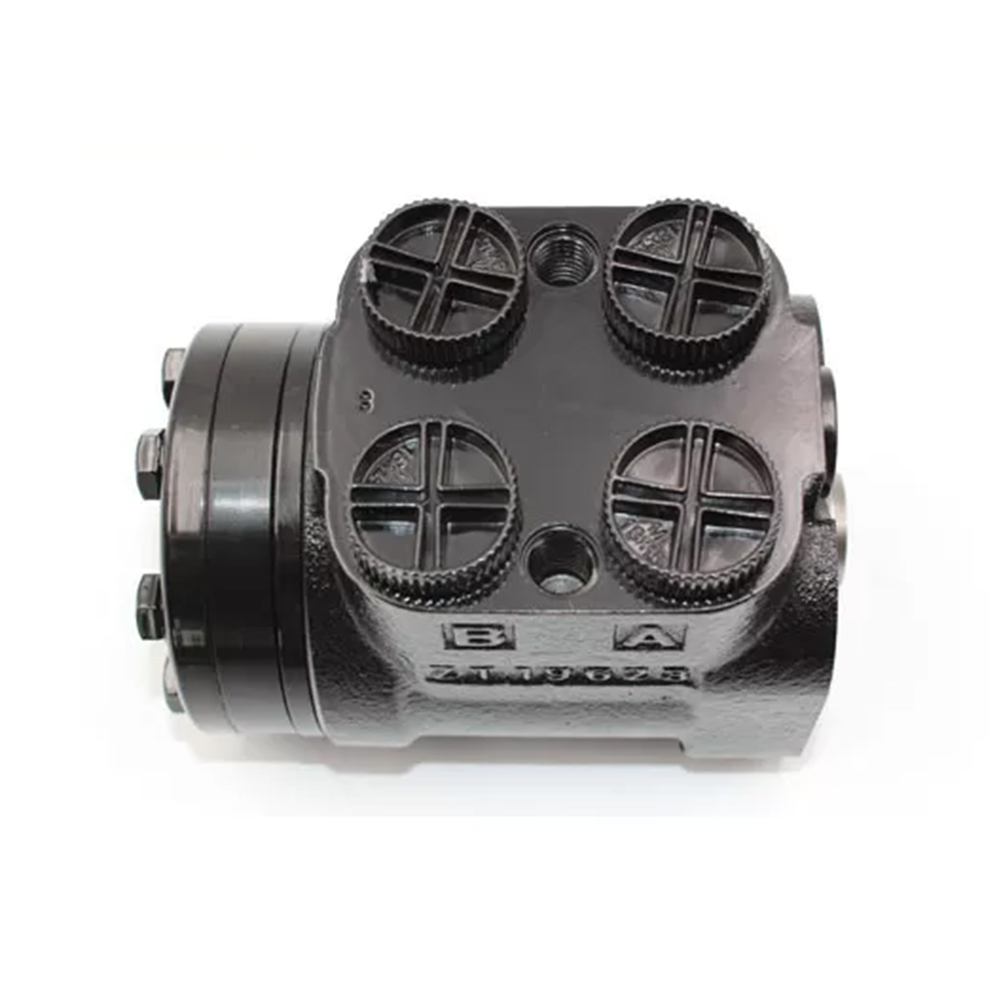

Orbital Valve Orbital Steering Control Unit Kubota M9540 hydraulic steering units tractor parts
This steering valve is a high quality part made in China, and comes with a one year warranty
Characteristic Features：
1) We are professional manufacturer produce Hydraulic steering units for tractors.
2) Quality match than , M+S, Eaton.
3) Match than OEM spare parts code number.
4) Application ,FORD,BELARUS,MASSEY FERGUSON,KUBOTA,
If you need other type steering units or details, please contact me and send your product details to me.
| Tractors Steering Units | 101s-... = OSPC = HKUS | OEM Parts |
80 cc 100cc 125cc 160cc 200cc 250cc 315cc 400cc 500cc | FORD BELARUS Massey Ferguson Kubota ...... |
Specification
we also make
Kubota 3N300-63074, 3N300-63073, 3N300-63072, and 3N300-63071
Used in some of the following Kubota models:
M95S
M96S
M105S
M108S
Replaces the Eaton Steering Valve Part Numbers:
WDE150Z16KUBD
WDE150Z16KUUD
WDE150Z16KUUE
| 油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | |
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||
