| Quantity: | |
|---|---|
150L2084
Xeriwell or Others
| Item: | Steering Unit | Type: | Hydraulic |
|---|---|---|---|
| Direction: | Left And Right | OEM #: | OSPM 50 ON |
| Displacement: | 8cc - 50cc | Function: | Open Center Non-reaction |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

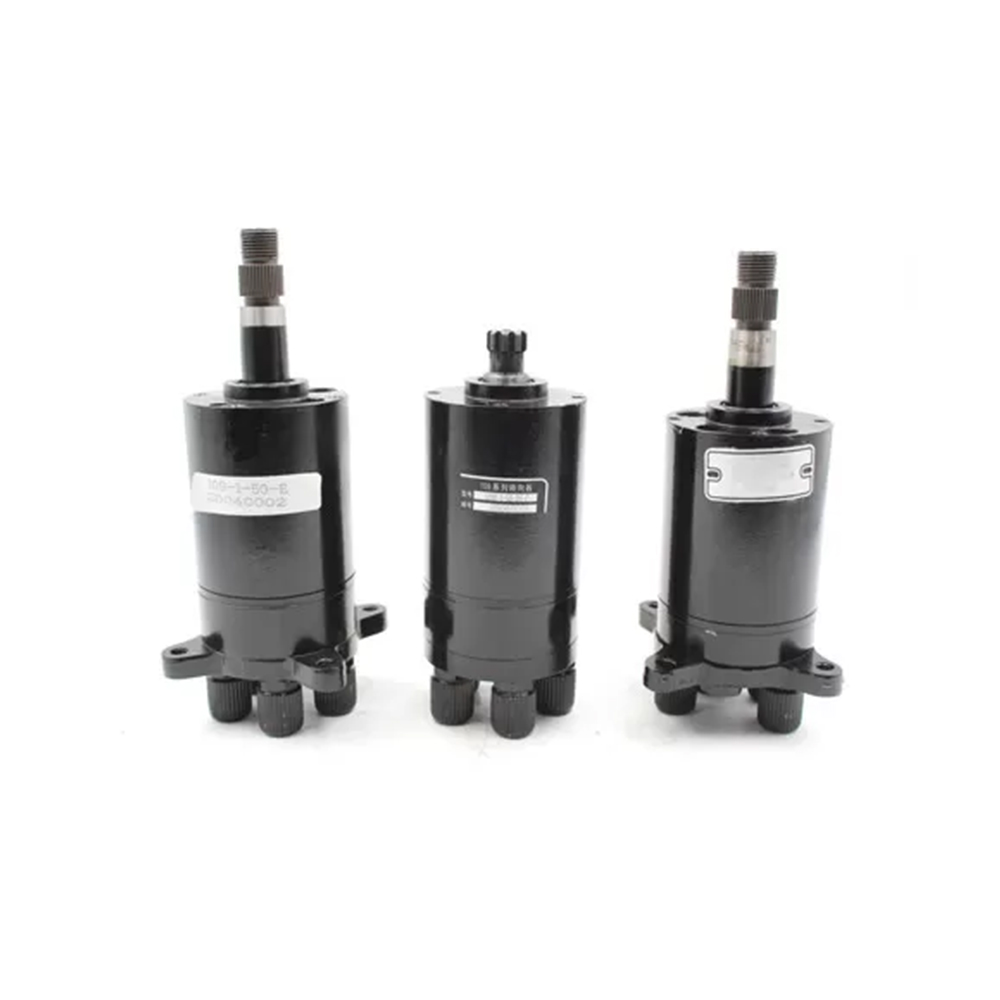

Orbital Steering Units 150L2084 OSPM 50 ON for road sweepers, turf care machinery and tractors
This is a replacement steering units for Danfoss OSPM Steering
OEM #: 150L2084, OSPM 50 ON
Aftermarket #: 109-50
The 109 hydraulic steering unit is available in: open-centre non-reaction.
It is particularly suited to road sweepers, turf care machinery and lawan tractors.
Features of 109 steering units include:
Good steering control
Low steering torque 1.2 to 2.0 N
One or several built in valve functions possible: shock in L + R, pressure relief valve and check valve in P and LS
Maximum steering pressure 150 bar (P-T).
| Main Specification | ||||||
| Parameters | Type 109*-1-***-**-* | |||||
| Displacement(mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
| Rated flow(L/min) | 3~20 | |||||
| Rated Pressure(MPa) | 12.5 | |||||
| Relief Valve Pressure Settings(MPa) | 06,07,08,09,10 | |||||
| Shock Valves Pressure Settings(MPa) | 12,13,14,15,16 | |||||
| Steering Torque(N·m) | ≤1.8 | |||||
| Max．Cont．Preesure in Line T-PT(MPa) | 1 | |||||
| Dimension L(mm) | 87 | 92 | 96 | 100 | 105 | 113 |
We provide many type steering unit to replace Danfoss OSPM :
| Code | No. |
| OSPM 32 ON | 150L2103 |
| OSPM 32 ON | 150L2104 |
| OSPM 40 ON | 150L2079 |
| OSPM 50 ON | 150L0111 |
| OSPM 50 ON | 150L0112 |
| OSPM 50 ON | 150L0133 |
| OSPM 50 ON | 150L2113 |
| OSPM 50 ON | 150L2114 |
| OSPM 50 ON | 150L2150 |
| OSPM 50 ON | 150L2132 |
| OSPM 63 ON | 150L0142 |
| OSPM 63 ON | 150L0143 |
| OSPM 63 ON | 150L0144 |
| OSPM 80 ON | 150L0121 |
| OSPM 80 ON | 150L0122 |
| OSPM 80 ON | 150L0137 |
| OSPM 80 ON | 150L2123 |
| OSPM 80 ON | 150L2124 |
| OSPM 80 ON | 150L2136 |
| OSPM 100 ON | 150L0154 |
| OSPM 100 ON | 150L0155 |
| OSPM 100 ON | 150L0156 |
