| Quantity: | |
|---|---|
BMTS250
Xeriwell or Others
| Categories: | Hydraulic Heavy Motor | Name: | BMTS250 |
|---|---|---|---|
| Max.output: | Cont.31.2kw/int.35kw | Max Torque: | Cont.1080N.m/int.1260N.m |
| Flange: | Square Flange | Shaft: | Spline Shaft |
| Highlight: | Bearingless Orbit Hydraulic Motor,Orbit Hydraulic Motor BMTS250,Interchangeable Orbit Hydraulic Motor | ||

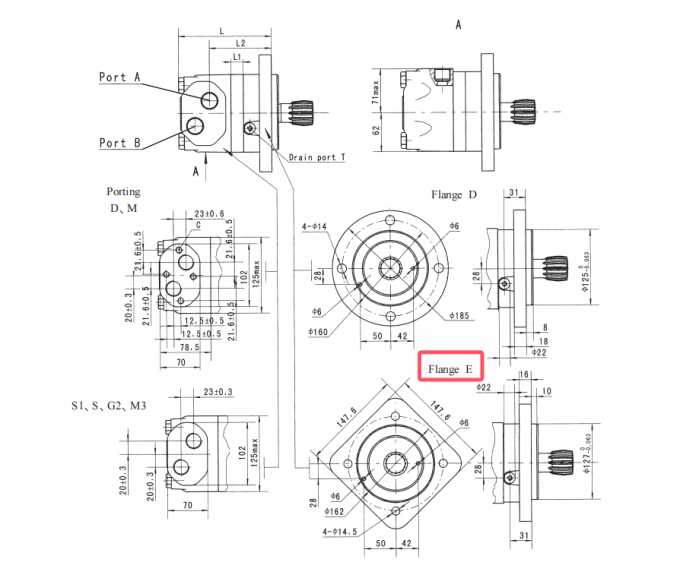

Orbit Hydraulic Motor BMTS250 Bearingless motor interchangeable charlynn 6000 series motor
Details
the order code BMTS-250-E-S1
Output volume (cc/rev): 250cc
max r.p.m.: 600
Torque max. (Nm): 730/880
Power max. (kW): 34.5
Pressure difference (bar): 200
Inlet pressure (bar): 280
Volume flow max. (l/min): 125
Engine version: with non-return valves
Connection: 1 1/16-12UN
Leakage oil connection: 7/16-UNF
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
Xeriwell Technology is constantly increasing its product range and customer base with a customer and quality-oriented perspective and continues to grow. Our company, which set out with the principles of Respect for Humanity and Society, Respect for the Environment, Respect for the Product, Respect for Labor, and Ethical Trade Ethics, has the aim of representing the world's most respected quality brands in its sector on this very difficult and long path.
