OMV630
Xeriwell or Others
| Product: | Orbital Motor | Model No.: | OMV630 |
|---|---|---|---|
| Flange: | 4 Hole Square | Shaft: | Straight 40mm With Paraller Key |
| Highlight: | omv 630 orbit hydraulic motor,151b3103 orbit hydraulic motor,151b3103 danfoss hydraulic motor | ||
Quick review:

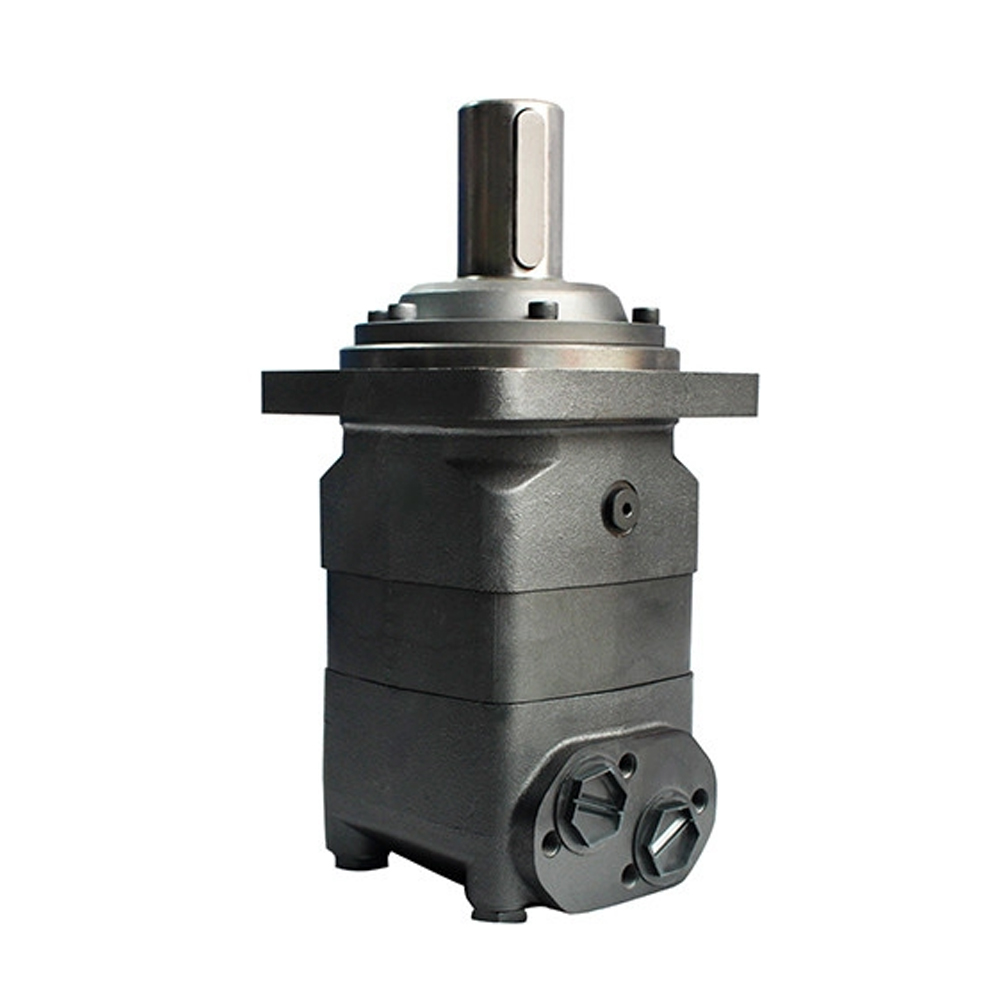

This is an OMV630 Orbital Motor with standard flange. It is form, fit and function compatible with Danfoss OMV630 151B3103. Dealers and users of Danfoss sell and use it directly as an OMV630 151B3103 compatible motor.

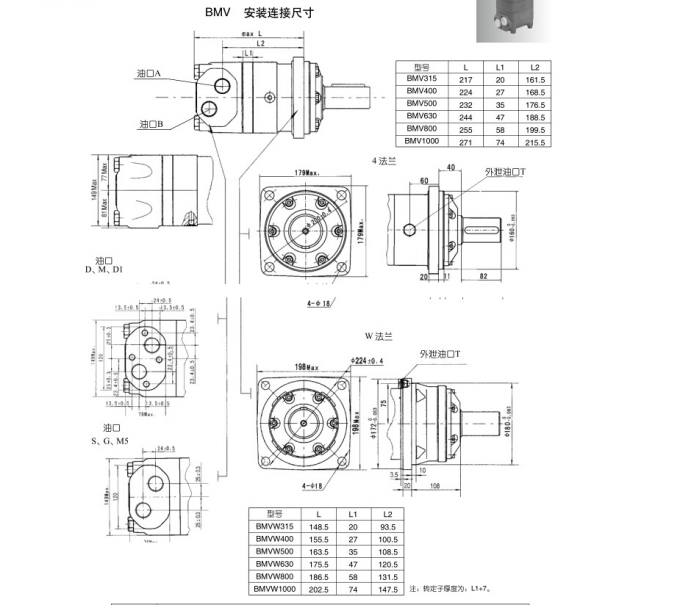

Technical information
"Tapered shaft Ø35 mm Flange 4 bolt
Ø200 - centring Ø160 mm lateral port
1""BSP - Drain 1/4 BSP ref Danfoss
151B3103"
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
