BMT 200
Xeriwell or Others
| Type: | Orbit Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Xeriwell Modell: | BMT 200 | Feature: | MEDIUM-SPEED MOTOR |
| Shaft: | PTO 6-tooth Splined | Max Continuous Inlet Pressure: | 210 Bar |
| Highlight: | 200cc danfoss hydraulic motor,omt danfoss hydraulic motor,200cc sauer danfoss hydraulic motor | ||

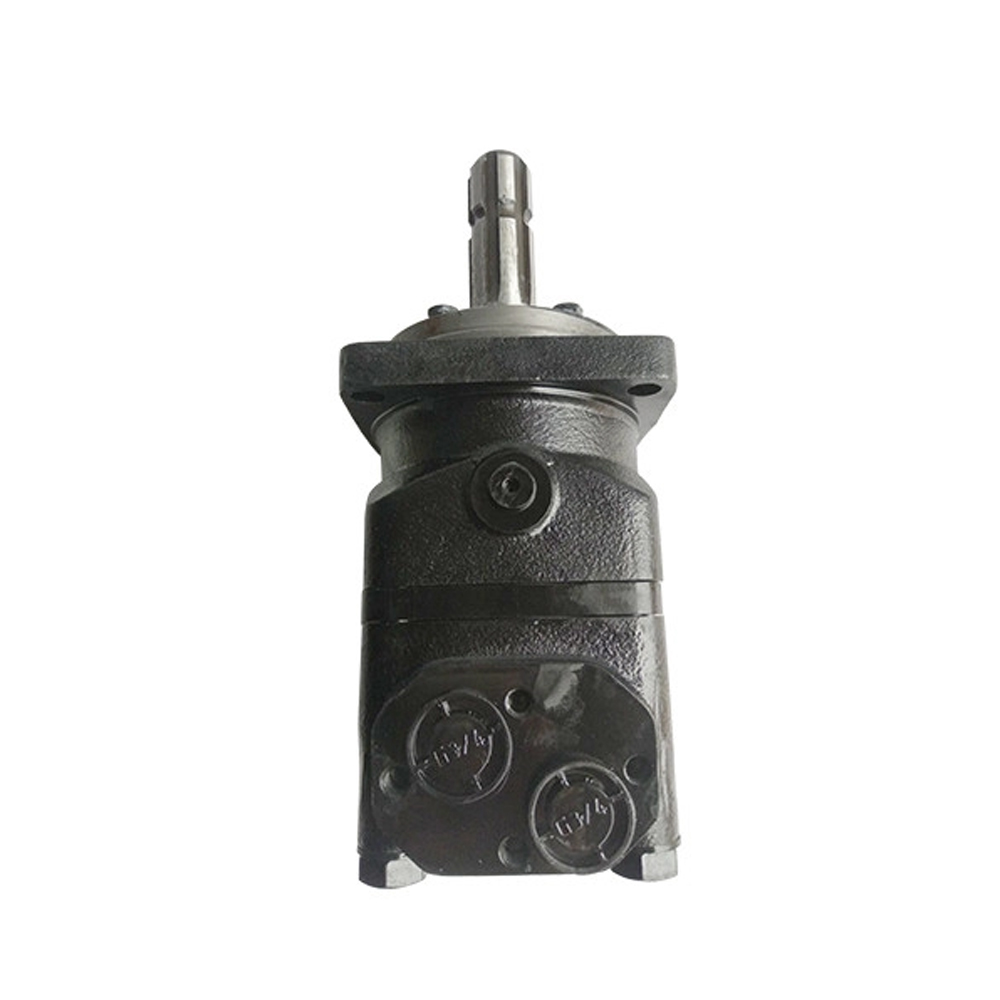

OMT 200CC DANFOSS REPLACEMENT MEDIUM-SPEED MOTOR 200CC 1"3/8 PTO SHAFT
Technical information
This is a DANFOSS replacement medium-speed motor
Technology: OMT, BMT

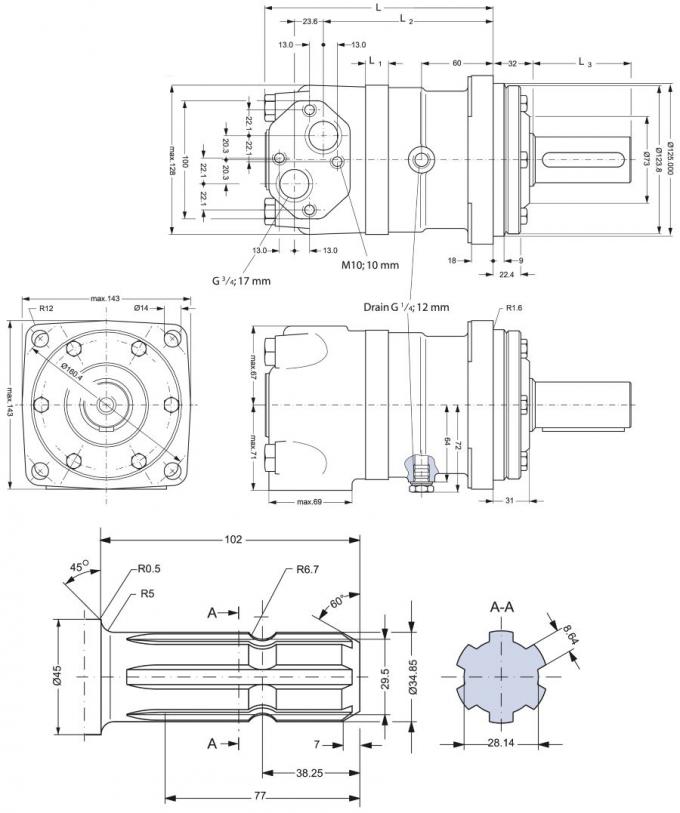

Flange: 4-hole, 113.4 x 113.4mm, Ø centring 123.8mm
Shaft: PTO 6-tooth splined Ø 1"3/8
Ports: 3/4" BSP (input and outlet) 1/4" BSP (drain)
Max continuous inlet pressure 210 bar
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. BMT has internal flush valves.These motors are perfect for long periods of operation under tough conditions (e.g. high pressure, slow speed, very light oils, frequent switches). The tapered roller bearings allows the absorption of static and dynamic radial loads. The distribution disc with a balancing plate is driven by a separated cardan shaft and it minimises the hydraulic and mechanical losses. As a result, the efficiency is considerable even under high pressures.
| Torque (Nm) | ||||||||
| Speed (rpm) | ||||||||
| Displacement (cm) | max continuous | min | max continuous | start min | max continuous power (kW) | max continuous drop of pressure (bar) | max continuous oil flow (l/mn) | Sauer danfoss reference |
| 161,1 | 625 | 10 | 470 | 340 | 26,5 | 200 | 100 | 151B3000 |
| 201,4 | 625 | 9 | 590 | 430 | 33,5 | 200 | 125 | 151B3001 |
| 251,8 | 500 | 8 | 730 | 530 | 33,5 | 200 | 125 | 151B3002 |
| 326,3 | 380 | 7 | 950 | 740 | 33,5 | 200 | 125 | 151B3003 |
| 410,9 | 305 | 6 | 1080 | 840 | 30 | 180 | 125 | 151B3004 |
| 532,6 | 240 | 5 | 1220 | 950 | 26,5 | 160 | 125 | 151B3005 |
| 161,1 | 625 | 10 | 470 | 340 | 26,5 | 200 | 100 | 151B30 |
