OMS400
Xeriwell or Others
| Product Name: | OMS400 ORBIT MOTOR | Displacement: | 400CC |
|---|---|---|---|
| Max Speed: | Cont185/int225rpm | Max Torque: | Cont880/int980 N.m |
| Oil Temperature: | Normal-30℃-90℃ | Max Flow: | Cont 75/int90 L/min |
| Highlight: | oms 400 danfoss orbit hydraulic motor,tapered shaft orbit hydraulic motor,orbit danfoss hydraulic motor oms 400 | ||

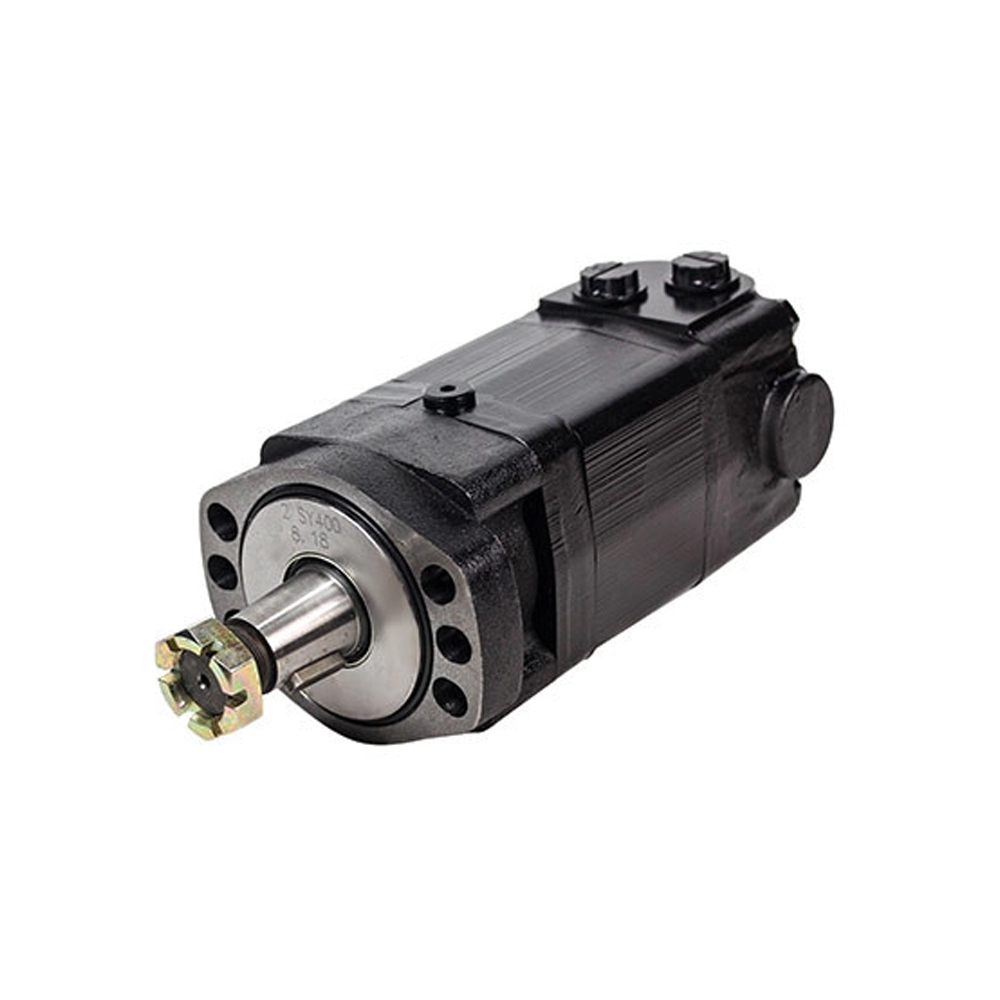

OMS-400 MOTOR DANFOSS ORBIT MOTOR TAPERED SHAFT MAGNETO FLANGE BSP PORTS
OMS400 is a hydraulic motor manufactured by Xeriwell Technology
Port Size:7/8-14 UNF
displacement:400cc
Shaft:31.75 tapered shaft
Port Location Side Ported
Flow Rating :75l/min
Max Speed:cont.185rpm,int.225 rpm
Shaft seal:High pressure seal Kit
function:low leakage
Country of Manufacture China
Main Specifications:
| Type | BMSY 80 | BMSY 100 | BMSY 125 | BMSY 160 | BMSY 200 | BMSY 250 | BMSY 315 | BMSY 400 | BMSY | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
The Oms-400motor is produced according to the technical parameters and standards provided by Xeriwell Hydraulics. By changing the direction of the input and output flow rates, the motor is quickly reversed and an equivalent torque is generated in both directions. Therefore, we also take technical improvements to improve the performance of our products according to the needs of the market. The main features are:
1. The use of end face distribution and axial surface distribution, simple and compact structure, high distribution accuracy.
2. The rotational inertia is small, it is easy to start under the load, the forward and reverse can be used, and there is no need to stop when changing.
3. After the air is removed, fill the fuel tank, and then start to gradually increase the load on the motor until the maximum load, and observe whether there are abnormal phenomena, such as noise, oil rise and oil leakage.
Oms-400 orbit motor is widely used in agricultural machinery, fishing machinery, plastics industry, mining, construction machinery and other industries.
The Oms-400 motor has the advantages of high efficiency, long life, wide speed range, high starting torque, smooth and compact high-speed rotation, and can be directly connected with the working machine to adapt to various low-speed heavy-duty facilities.
