| Quantity: | |
|---|---|

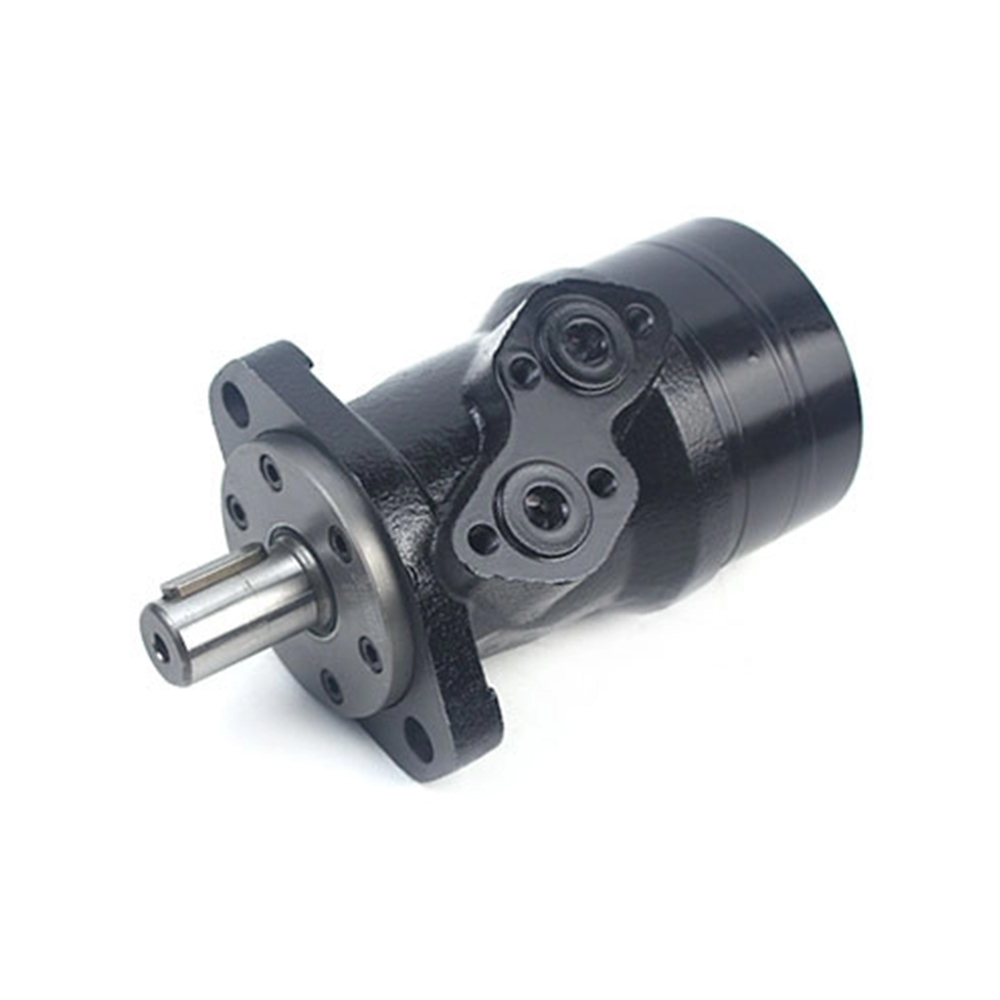

OMPX100
Xeriwell or Others
| Type: | Geroler And Gerotor Motor | Model No.: | BMR100 |
|---|---|---|---|
| Max Speed: | Cont.600/int.750rpm | Max Torque: | Cont.240/int.280N.M |
| Max Output: | Cont.13/int.15kw | Max Pressure: | Cont.17.5/int20mpa |
| Highlight: | omr danfoss hydraulic motor,100cc gerotor hydraulic motor,end ports gerotor hydraulic motor | ||
| Type | BMR |
| Displacement | 100CC |
| Shaft | 25MM Cylindrical |
| Flange | A2 (2 Bolt 106.1 pcd) |
| Port Position | End |
| Shaft Seal | High Pressure |
| Drain | Yes |
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 | |
| displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13.0 | 12.5 | 12.5 | 10 | 7.0 | 6.0 | 5 |
| int. | 9.8 | 11.2 | 15 | 15.0 | 14.5 | 14 | 13 | 9.5 | 9.0 | 8 | |
| Max. pressure drop (MPa) | cont. | 14.0 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8.0 | 8.5 | 9.0 | 9.5 | |
