| Quantity: | |
|---|---|
OMR
Xeriwell or Others
| Item: | Orbital Motor | Model Number: | OMR |
|---|---|---|---|
| Manufacturer: | Xeriwell | Feature: | With Rear Negative Break |
| Highlight: | omr motor orbit hydraulic,ce motor orbit hydraulic | ||

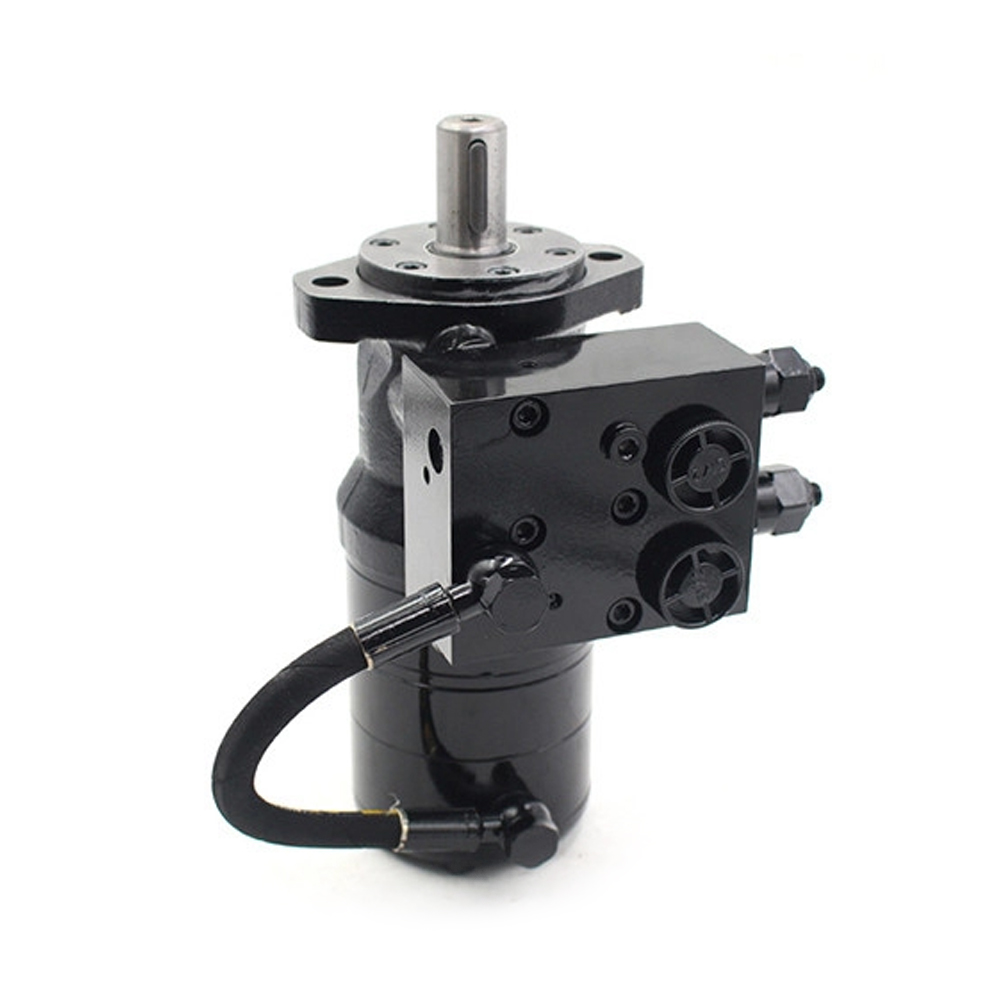

OMR Orbital with an integrated holding brake for use in both open and closed circuits
Quick review:
OMR motors to include a version with an integrated holding brake (negative brake) for use in both open and closed circuits. The brake is a spring-applied, multiple-disc type which is released by hydraulic pressure. This is an OMR Orbital Motor with negative break. It is form, fit and function compatible with Danfoss OMR F. Dealers and users of Danfoss sell and use it directly as an OMR F compatible motor.
Characteristics:
| 1 | High holding torque |
| 2 | Compact unit with maximum brake/motor integration |
| 3 | Minimum servicing, the brake is lubricated automatically by drain oil (no separate oil change |
| 4 | Application: The brake motors are designed for hydrostatic transmissions and for applications where a load must be held in a given position. |
| 5 | Application examples : Road rollers, Work platforms, Mowing machines, Miniloaders, Sweepers, Winches, Machine tools |
Parameters:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
