| Quantity: | |
|---|---|
OMR 200
Xeriwell or Others
| Item: | Orbital Motor | Model Number: | OMR 20 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Feature: | With Sensor |
| Highlight: | danfoss hydraulic motor omr,medium speed orbit hydro motor,151-6393 orbit hydro motor | ||

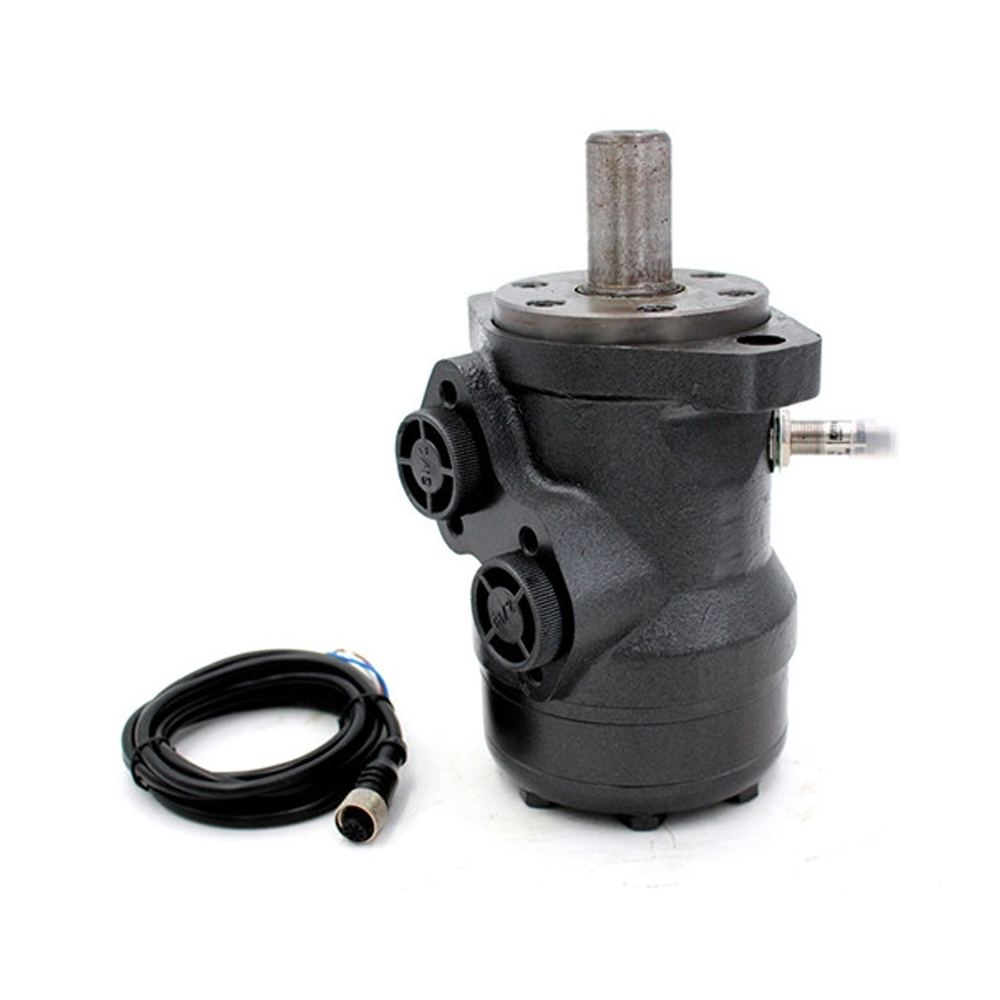

OMR Medium Speed Orbital Motor with Sensor Compatible with DANFOSS 151-6393
Quick review:
This is an OMR Orbital Motor. It is form, fit and function compatible with Danfoss OMR. Dealers and users of Danfoss sell and use it directly as an OMR compatible motor.
Specification:
| Item | OMR MEDIUM-SPEED MOTOR |
| Displacement: | 200cc |
| Flange: | 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm |
| Shaft: | Ø25mm, cylindrical |
| Ports: | 1/2" BSP (inlet and outlet) 1/4" BSP (drain) |
| PNP speed of rotation sensor | (35 impulsion per rev) |
| Danfoss reference: | 151-6393 |
Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
About manufacturer:
Xeriwell is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Xeriwell that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.
Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.
