| Quantity: | |
|---|---|
BMPW200
Xeriwell or Others
| Type: | Wheel Motor | Model No.: | BMPW200 |
|---|---|---|---|
| Speed: | Cont.310/int.385rpm | Torque: | Cont.360/int.440 Nm |
| Max Power: | Cont.10/int.12KW | Max Flow: | Cont.60/int.75LPM |
| Highlight: | hydraulic engine danfoss wheel motor,bmpw200 danfoss wheel motor | ||

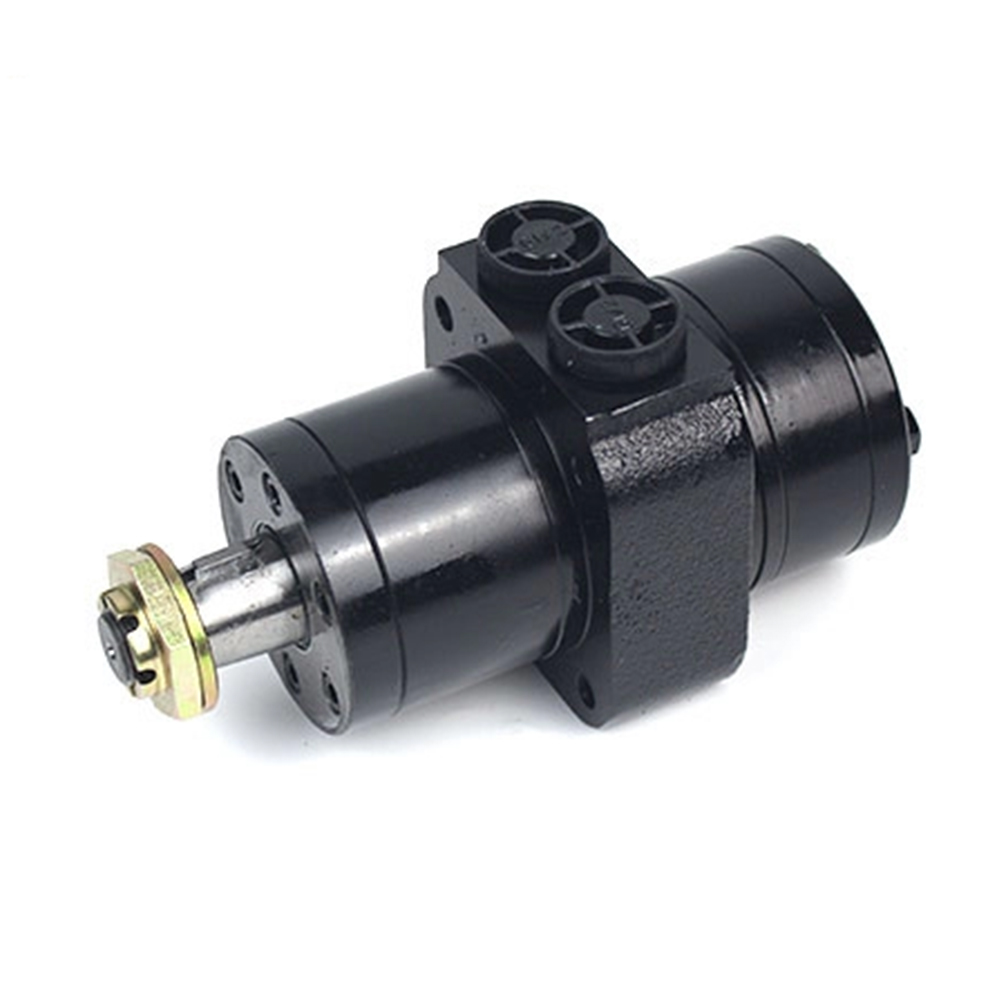

Danfoss Wheel Motor Hydraulic Engine OMPWN 1515306, Tap. Ø28.5 Mm Shaft With Needle Bearing
Xeriwell BMPWN-200 motors has the same specification of OMPWN 151-5306
hydraulic motors specification as below:
- Displacement: 200cc
- Flange :wheel Ø103mm
- Shaft: Tap. Ø28.5 mm
- Ports: G1/2
- Drain port:G1/4
Specification:
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Xeriwell is specializing in producting the hydraulic orbit motors, with quick leading time, excellent quality and 7/24 hours aftersales service
we have the most competley range of hydraulic motors, 100% same as below types
choose Xeriwell, is your best business coopeartion partner!
OMPW125 151-5304 OMPWX125 N 11186750
OMPW160 151-5305 OMPWX160 N 11185882
OMPW200 151-5306 OMPWX200 N 11186748
OMPW250 151-5307 OMPWX250 N 11185884
OMPW315 151-5308 OMPWX315 N 11185885
OMPW400 151-5309 OMPWX400 N 11185886
OMPW200 151-5310 OMPWX200 N 11186749
OMPW40 151-5324 OMPWX40 N 11185889
OMPW50 151-7101 OMPWX50 11185873
OMPW80 151-7102 OMPWX80 11185875
OMPW100 151-7103 OMPWX100 11185877
OMPW125 151-7104 OMPWX125 11185876
OMPW160 151-7105 OMPWX160 11186746
OMPW200 151-7106 OMPWX200 11186747
OMPW250 151-7107 OMPWX250 11185870
OMPW315 151-7108 OMPWX315 11185871
OMPW400 151-7109 OMPWX400 11185872
OMPW200 151-7110 OMPWX200 11185869
OMPW160 151-7120 OMPWX160 11185868
