| Quantity: | |
|---|---|
OMW200
Xeriwell or Others
| Item: | Orbital Motor | Model: | OMPW |
|---|---|---|---|
| Mounting: | Wheel Mount | Shaft: | Taper |
| Highlight: | ompw200 orbit hydraulic motor,tapered shaft orbit hydraulic motor,wheel mount motor orbit hydraulic | ||
Quickly item review

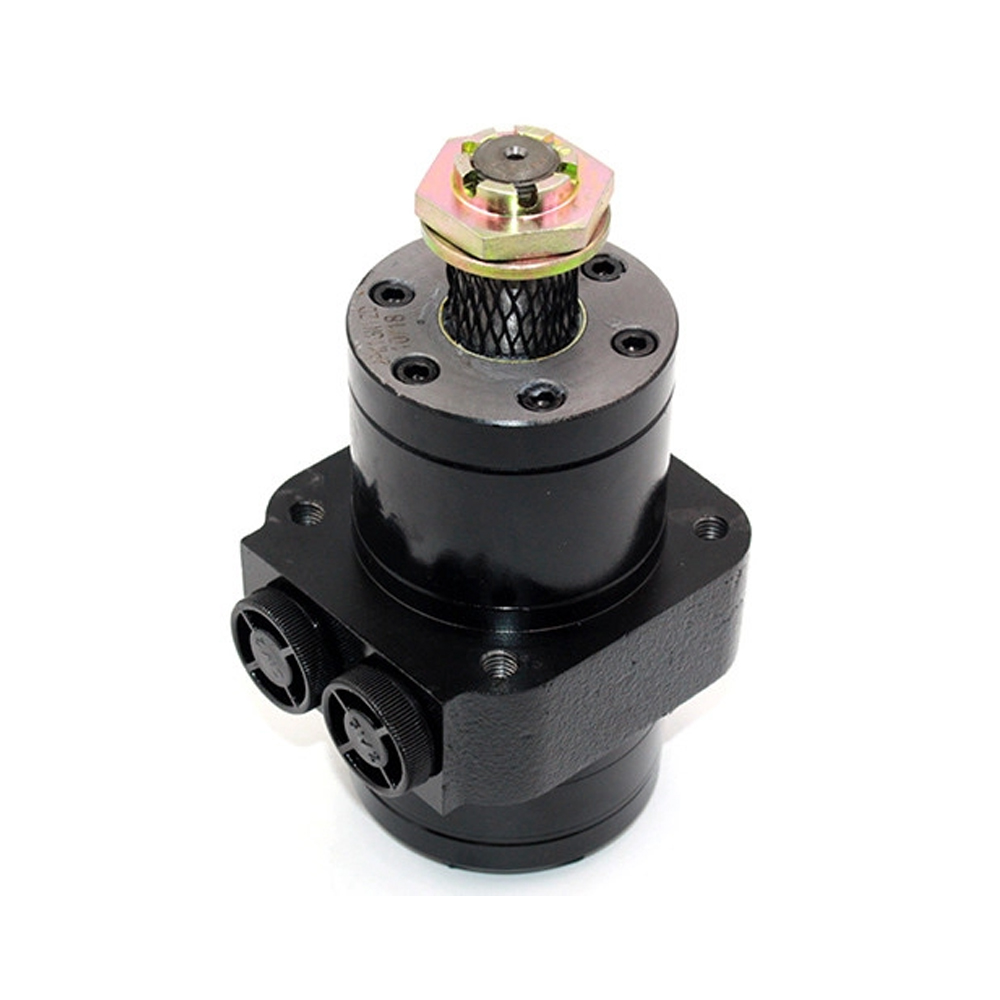

This is an OMPW Orbital Motor.It is form, fit and function compatible with Danfoss OMPW. Dealers and users of Danfoss sell and use it directly as an OMPW compatible motor.
Technical information

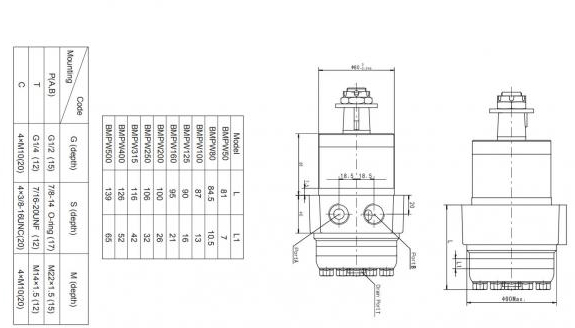

Taper shaft 1:10 on wheel mount Flange
OMPW parameters:
| Type | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | |
| 36 | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | ||
| Displacement | 36 | 51.7 | 77.7 | 96.2 | 117.9 | 155.5 | 189.9 | 231 | 311.7 | 386.2 | |
| Max. speed (rpm) | rated | 1050 | 850 | 650 | 520 | 390 | 310 | 260 | 200 | 156 | 130 |
| cont. | 1078 | 879 | 740 | 589 | 475 | 370 | 296 | 237 | 189 | 149 | |
| Max. torque (N•m) | int. | 1210 | 975 | 827 | 673 | 594 | 463 | 370 | 297 | 236 | 185 |
| rated | 55 | 81 | 129 | 161 | 202 | 204 | 259 | 325 | 345 | 435 | |
| cont. | 55 | 81 | 129 | 161 | 202 | 245 | 286 | 360 | 406 | 435 | |
| Max. output (kW) | int. | 76 | 108 | 171 | 213 | 268 | 342 | 390 | 456 | 505 | 533 |
| rated | 6 | 7 | 8.6 | 8.6 | 8 | 6.5 | 6.9 | 6.6 | 5.5 | 5.8 | |
| Max.pressure drop (MPa) | cont. | 6 | 7 | 9.1 | 9 | 9.1 | 8.7 | 8.1 | 8.2 | 7.2 | 6.1 |
| int. | 8 | 8.9 | 11.8 | 11.9 | 11.8 | 11.9 | 10.9 | 10.1 | 8.6 | 7.2 | |
| rated | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 10 | 10 | 10 | 8.5 | 8.5 | |
| Max. flow (L/min) | cont. | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 11 | 11 | 10 |
| int. | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 | |
| Max.inlet pressure (MPa) | peak | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 |
| rated | 40 | 45 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Max.flow | cont. | 40 | 45 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight(kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 | |
DESCRIPTION
Displacement [25 -490 cm3]
Max. cont. pressure [160 bar]
Max. cont. torque [490 Nm]
Max. cont. flow [60 lpm]
Available with aligned side ports
Recessed mouting flange allows better radial load distribution
About the manufacturer:
Xeriwell is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Xeriwell that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.
Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.
