| Quantity: | |
|---|---|
OMM
Xeriwell or Others
| Type: | Orbital Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | OMM 8 | Displacement: | 8.2cm³ |
| Port: | Side Port | Shaft: | Cylinderical |
| Highlight: | orbital sauer danfoss hydraulic motor,omm 8 sauer danfoss hydraulic motor,orbital danfoss hydraulic motor | ||

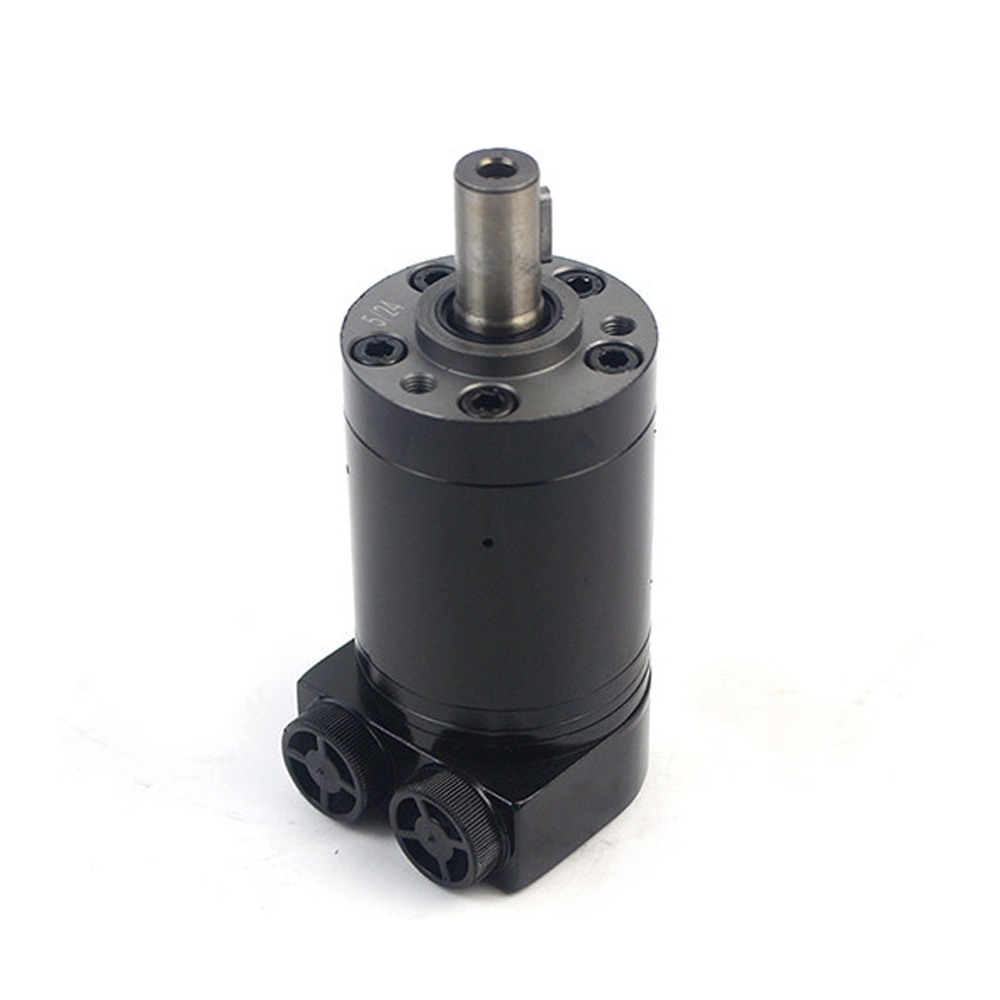

Orbital Motor OMM8 - 151G0049, Sauer Danfoss Orbital Motors 8.2cm³
Quick review:
This is an OMM8 Orbital Motor. It is form, fit and function compatible with Danfoss OMM8 151G0049. Dealers and users of Danfoss sell and use it directly as an OMM8 151G0049 compatible motor.
Specifications
Suitable for applications where high speed is required more than the torque, like sweepers or underwater hull cleaning
Cylindrical output shaft 5/8" with 9/16-18UNF side ports
Parallel key 3/16 x 3/16 x 3/4"
Main parameters:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |

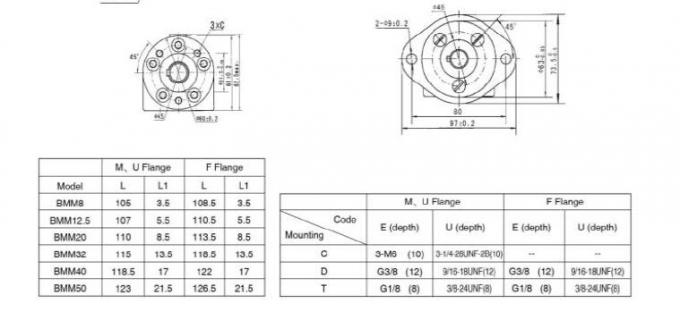

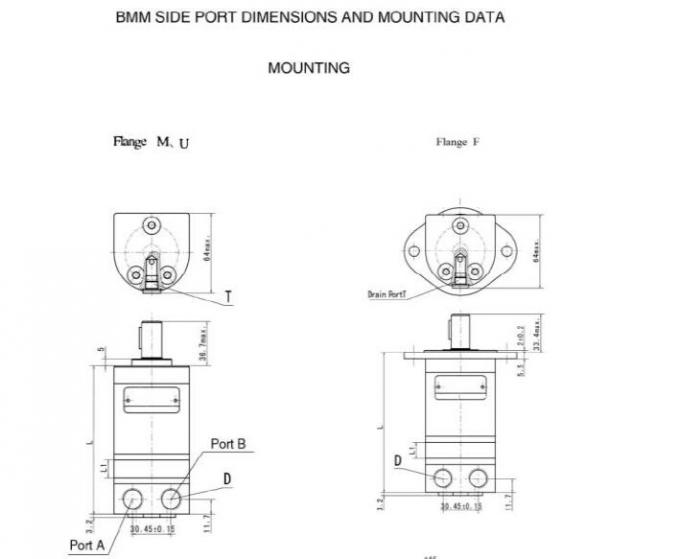

Below drawing you will see more option for OMM motors.
More motor like OMP, OMR, OMH, OMS, OMT,OMV all available.
Please do not hesitate to contact us to talk your needs, we will meet your request with best offer.
About Manufacturer:
Xeriwell is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Xeriwell that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.
Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.
