| Quantity: | |
|---|---|
BMM
Xeriwell or Others
| Type: | Hydraulic Small Motor | Max Torque: | Cont.11n.m/int15n.m |
|---|---|---|---|
| Max Speed: | Cont1950rpm/int.2450rpm | Displacement: | 8,12, 20, 32, 40, 50ML/R |
| Max Flow: | Cont.16l/min Int.20l/min | Max.output: | Cont.1.8kw/int.2.6kw |
| Highlight: | omm-8 eaton orbit motor,shaft 16mm eaton orbit motor,side ports motor orbit hydraulic | ||
Output volume (cc/rev): 8,2
Shaft Ø (mm): 16
max r.p.m.: 1950
Torque max. (Nm): 11
Power max. (kW): 1,8
Pressure difference (bar): 100
Inlet pressure (bar): 140
Volume flow max. (l/min): 16
Engine version: with non-return valves
Connection: G 3/8"
Leakage oil connection: G 1/8"
L (mm): 104
L1 (mm): 3,5

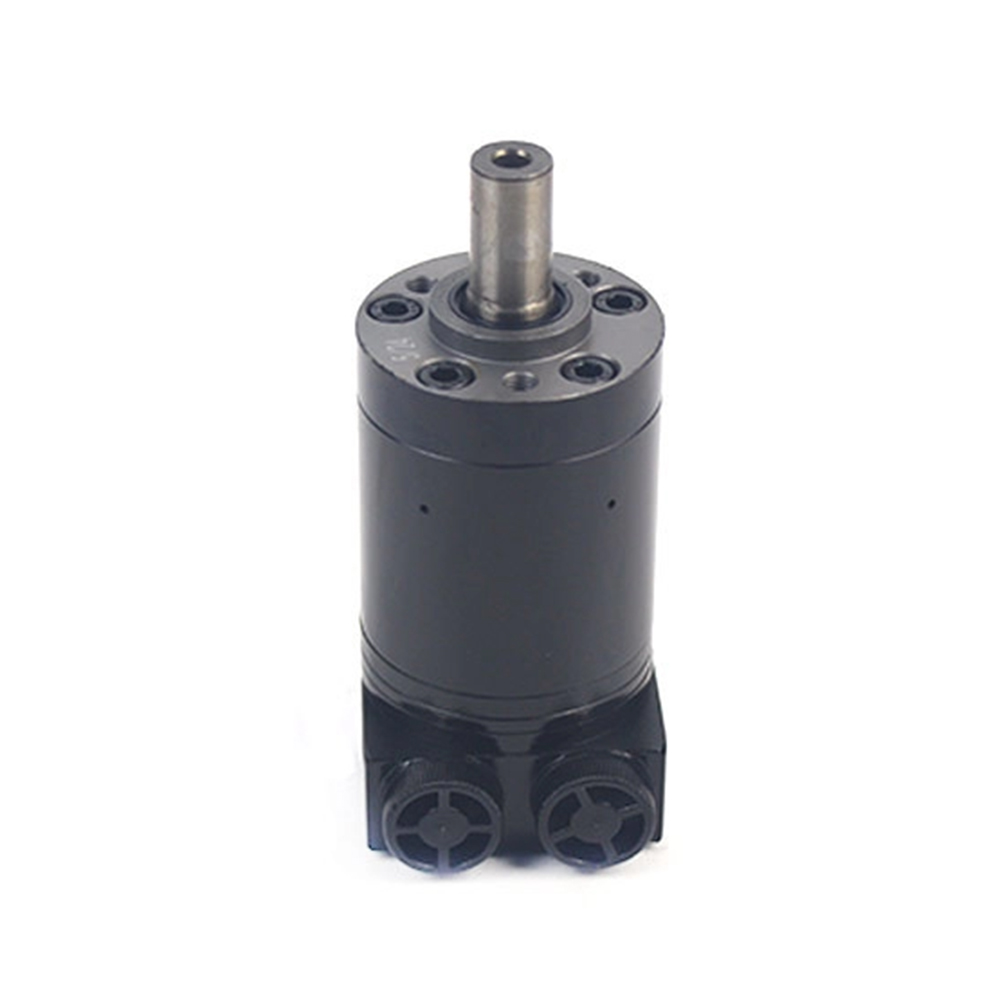

Xeriwell hydraulic supply OMM series motor are small volume, economical type, which is designed with shaft distribution flow,which adopt the Gerotor gear set design and provide compact volume, high power and low weight.
Chartacteristic fectures:
*Advanced manufacturing devices for the Gerotor gear set,which provide small volume, high efficiency and long life.
*Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
*Advanced construction design, high power and low weight.
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
Xeriwell brand OMM/BMM orbit motors have the same performance with Danfoss OMM, m+s MM motor
100% interchangable for below code
151G0040
151G0041
151G0048
151G0049
151G0047
151G0046
