| Quantity: | |
|---|---|

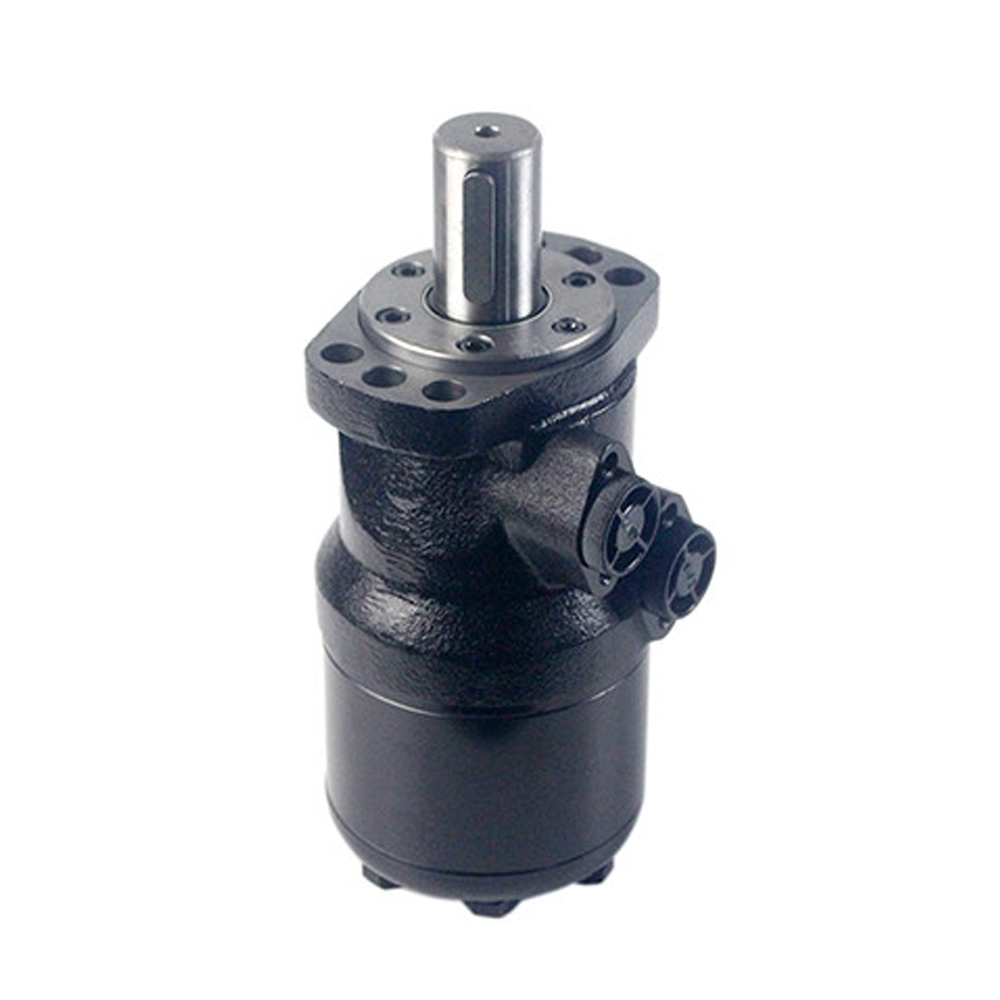

BMH-500-6-M-D-B
Xeriwell or Others
| Mounting Type: | 4×Ø13.5 Rhomb×flange Pilot Ø82.5×6 | Temperature Range: | -20℃~80℃ |
|---|---|---|---|
| Weight: | 13kg | Displacement: | 155 - 184 Ml/r |
| Max Pressure: | 18 MPa | Warranty: | 1 Year |
| Rated Speed: | 155 - 185 Rpm | Material: | Cast Iron/ Alloy |
| Highlight: | omh 500cc orbit hydraulic motor,35mm cyclindrical shaft orbit hydraulic motor,omh 500cc orbit motor | ||
BMH500-6-M-D-B(35MM)Hanjiu hydraulic motor is a type of motor designed for reliable operation in any hydraulic system. The motor features a unique design that allows it to deliver high torque at low speed, making it ideal for a variety of applications. The motor has a shaft type that can be spline, taper, or cylindrical. It also has a rated torque of between 155 - 185 rpm, and is covered by a 1-year warranty.
Product Name: Low Speed High Torque Hydraulic Motor
Rated Speed: 155 - 184 rpm
Max Flow: 75 - 90 L/min
Displacement: 500 ml/r
Max Pressure: 18MPa
Mounting Type: 4×Ø13.5 Rhomb×flange Pilot Ø82.5×6
Feature: replace Danfoss OMH, replace M+S MH
| Parameter | Value |
|---|---|
| Brand | Xeriwell |
| Warranty | 1 Year |
| Displacement | 500ml/r |
| Temperature Range | -20℃~80℃ |
| Control Type | Hydraulic |
| Weight | 13kg |
| Vibration Level | ≤0.2mm/s |
| Shaft Type | Cylindrical |
| Rated Speed | 155 - 184 rpm |
| Noise Level | ≤80dB |
| Rated Torque | 830 -1170Nm |
| Mounting Type: | 4×Ø13.5 Rhomb×flange Pilot Ø82.5×6 | Temperature Range: | -20℃~80℃ |
|---|---|---|---|
| Weight: | 13kg | Displacement: | 155 - 184 Ml/r |
| Max Pressure: | 18 MPa | Warranty: | 1 Year |
| Rated Speed: | 155 - 185 Rpm | Material: | Cast Iron/ Alloy |
| Highlight: | omh 500cc orbit hydraulic motor,35mm cyclindrical shaft orbit hydraulic motor,omh 500cc orbit motor | ||
BMH500-6-M-D-B(35MM)Hanjiu hydraulic motor is a type of motor designed for reliable operation in any hydraulic system. The motor features a unique design that allows it to deliver high torque at low speed, making it ideal for a variety of applications. The motor has a shaft type that can be spline, taper, or cylindrical. It also has a rated torque of between 155 - 185 rpm, and is covered by a 1-year warranty.
Product Name: Low Speed High Torque Hydraulic Motor
Rated Speed: 155 - 184 rpm
Max Flow: 75 - 90 L/min
Displacement: 500 ml/r
Max Pressure: 18MPa
Mounting Type: 4×Ø13.5 Rhomb×flange Pilot Ø82.5×6
Feature: replace Danfoss OMH, replace M+S MH
| Parameter | Value |
|---|---|
| Brand | Xeriwell |
| Warranty | 1 Year |
| Displacement | 500ml/r |
| Temperature Range | -20℃~80℃ |
| Control Type | Hydraulic |
| Weight | 13kg |
| Vibration Level | ≤0.2mm/s |
| Shaft Type | Cylindrical |
| Rated Speed | 155 - 184 rpm |
| Noise Level | ≤80dB |
| Rated Torque | 830 -1170Nm |
