| Quantity: | |
|---|---|
OZ
Xeriwell or Others
| Type: | Replace Motor Hydraulics | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | OZ-160 | Displacement: | 160 Cc/r |
| Max Speed: | 257 Rpm | Max Torque: | 216/ 288 Nm |
| Max Output: | 5.2/ 8.6 KW | Max Oil Flow: | 40 L/min |
| More Displacement: | 36 Cc/r - 400 Cc/r | Speed Range: | 104 Rpm - 1081 Rpm |
| Highlight: | mini hydraulic motor,omm hydraulic motor |
||

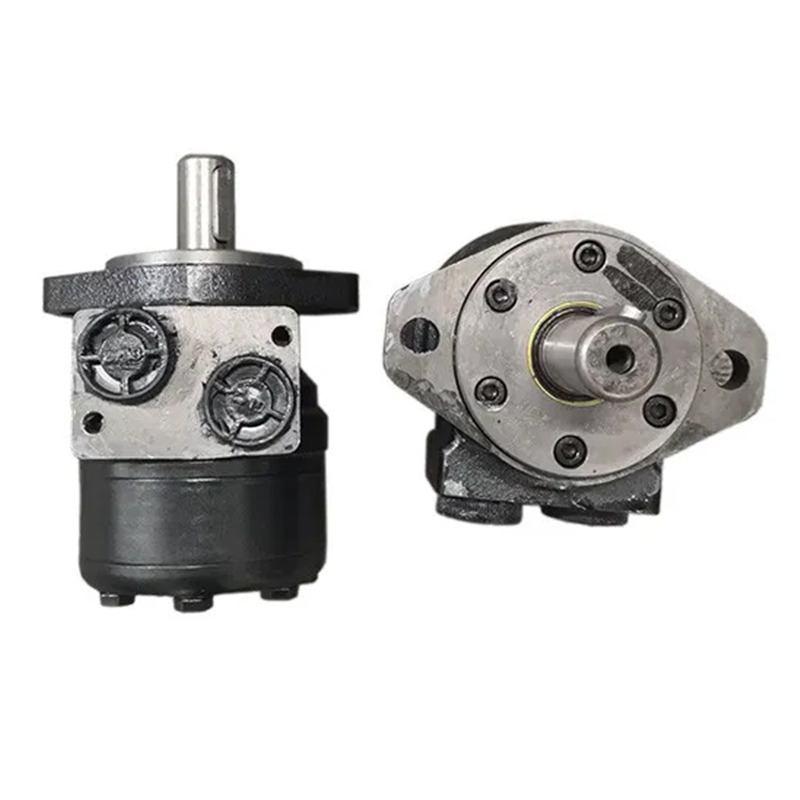

Hydraulic Motor Hitachi Drive Shortmotor OZ 160ml/r, 25mm shaft, 2-bolt mounting
Quick details:
we produce hydraulic motors for Heavy duty vehicles, Ag machinery, Special vehicles
variety version available from OZ, OK, BMM, BMP, BMR, BMH, BMS, BMT, BMV, BMK2, BMK6, BMER
variety types with same specifications with most Eaton Char-lynn, , Parker, and many more

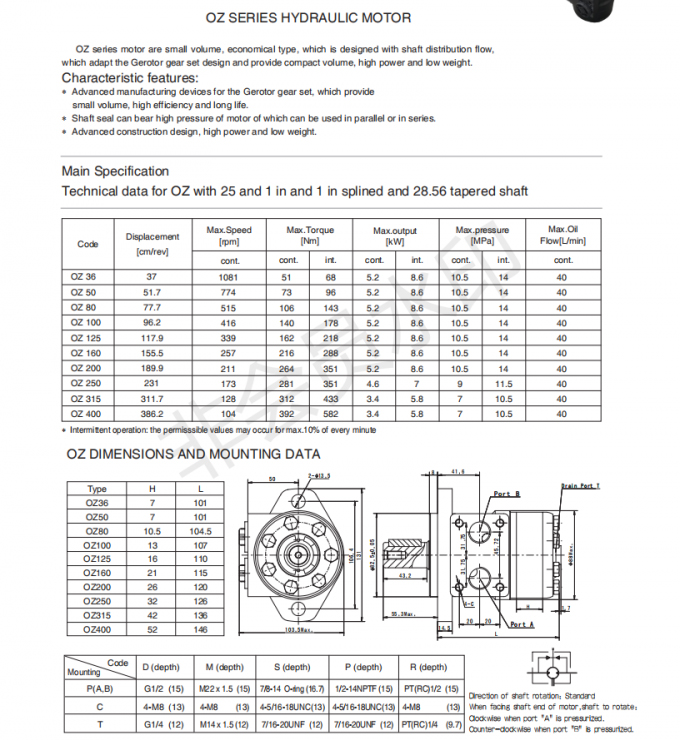

OZ introduction:
OZ series motor are small volume,
economical type,
designed with shaft distribution flow,which adapt the Gerotor gear set design and
provide compact volume, high power and low weight.
Features:
Advanced manufacturing devices for the Gerotor gear set, which provide
small volume, high efficiency and long life.
Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
Applications:
The OZ-series hydraulic motors are low-speed high-torque units. They are extensively applied across diverse equipment: farm irrigation winches, hauling & mooring winches, cable laying winches, oceanographic research winches, marine and fishing vessel winches, anchor winches, capstans, subsea pipelaying special systems, timber logging & processing machinery, agricultural & forestry equipment, construction machinery, work platforms, as well as turf maintenance and mowing machines.
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 |
BMP BMPH BMPW 50 |
BMP BMPH BMPW 80 |
BMP BMPH BMPW 100 |
BMP BMPH BMPW 125 |
BMP BMPH BMPW 160 |
BMP BMPH BMPW 200 |
BMP BMPH BMPW 250 |
BMP BMPH BMPW 315 |
BMP BMPH BMPW 400 |
BMP BMPH BMPW 500 |
|
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
