| Quantity: | |
|---|---|
101AS-1-160-16-C
Xeriwell or Others
| Product: | Hydraulic Steering Orbitrol | Brand: | Xeriwell |
|---|---|---|---|
| Size: | 160 Ml/r | Founction: | ON (Open Center Non Reaction) |
| Valves: | Safety Valve, Shock Valves, Check Valve | Used For: | Tractors, And Many More |
| Replace: | OSPC 160 | Oil Port: | M18 X 1.5 |
| Mounting C: | M10 | Mounting V: | M12 |
| Highlight: | power steering valve,power steering control unit | ||

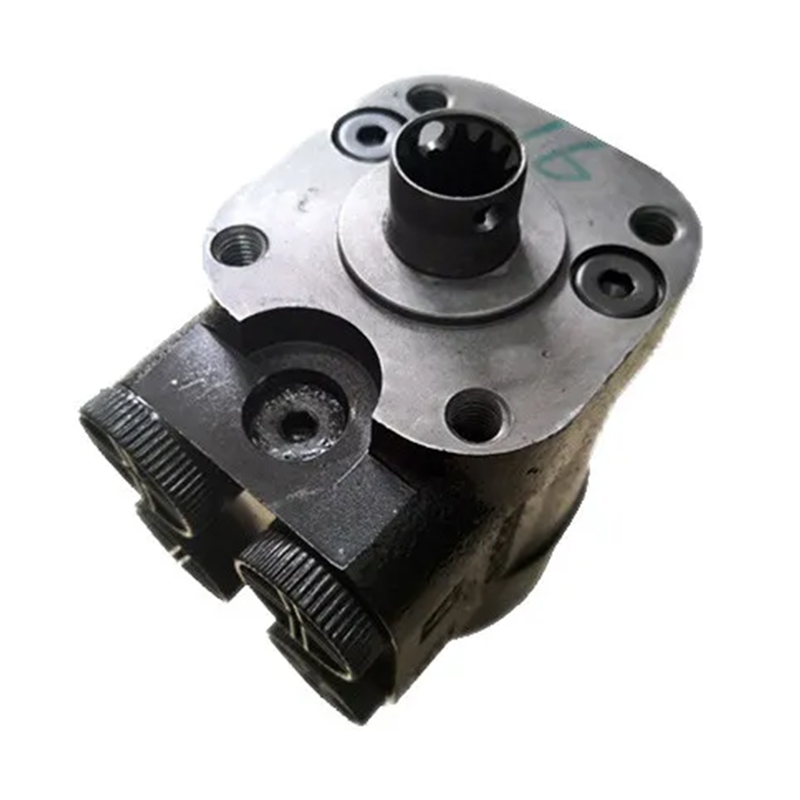

Tractor Hydraulic Steering Orbitrol OSPC 160 Open Center
Xeriwell also have more types steering orbitrols to suit , Fiat, Ford, , Massey Furguson, , MTZ, and many more.
Xeriwell Provide Tractor Steering Orbitrols, with variety options and variety sizes.
This steering is an OEM replacement parts for .
| 1, | 101AS-1-160-16-C |
| 2, | replace OSPC 160 ON |
| 3, | function Open Center Non Reaction |
| 4, | displacement 160cc |
| 5, | Ports P,T,A,B: M18 x 1.5 |
| 6, | Safety valve pressure 16 MPa. |
| 7, | Mounting C: M10 |
| 8, | Mounting V: M12 |
| 9, | Packing: 34×33×15cm/ 3 pcs |
We also make analogue steering orbitrol of M+S, , Eaton, , , Massey Ferguson, Claas, , ...
| Xeriwell | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 | 1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Xeriwell | Massey FergusonOEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON | 240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Xeriwell | Fiat OEM | Fiat |
| 101s 100 ON | (5140383) / 5143319/ 2WD HKUS100/ON OSPC100/ON | 100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |
Technical data sheet:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
101S series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
