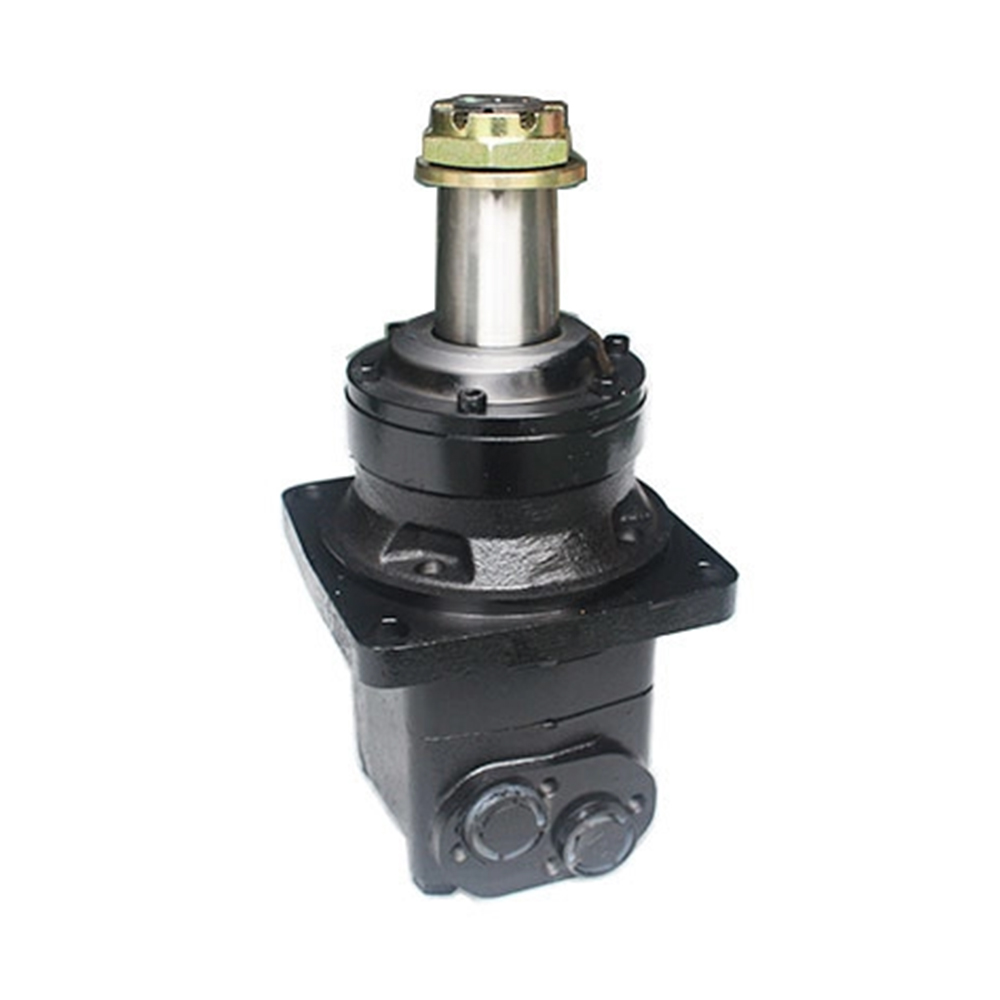

OMVW630HD Danfoss Hydraulic Motor Harvester Head Spare Parts 151B3158

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMVW MOTOR
Brand:
Xeriwell or Others

Product Description

Displacement:	630cc	Max.speed(rpm):	Cont.320rpm/int.380rpm
Max.torque(N.m):	Cont.1660N.m/int.1940N.m	Max.pressure Drop:	Cont.18mpa/int.21Mpa
Flow:	Cont200/int240l/min	Viscosity:	42-74mm2/s
Highlight:	omvw630hd danfoss hydraulic motor , harvester head danfoss hydraulic motor , 151b3158 orbital hydraulic motor

OMVW630HD ORBITAL MOTOR HARVESTER HEAD SPARE PARTS DANFOSS 151B3158 TAPERED 1:10 KEY SHAFT

Description

Manufacturer: Xeriwell

Country of origin: CHINA

Condition: NEW packaging

Materialnumber: 151B3158

Modelcode: BMVW

Motorseries: O-Series

Displacement: 630

Mounting Flange: wheel flange

Mounting Thread Dimension:φ60mm

Shaft Style: tapered shaft

Shaft Size: 1-10

Shaft Key: B16 X10X32 mm (DIN 6885)

Port Size: Side port

Port Dimension: G 1

Drain Port Style: Standard

Drain port Dimension: G 1/4

Brake Release Port: None

Brake Release Port Dimension: None

Painted: BLACK

Special Features External 1: None

Special Features External 2: None

Special features External 3: None

Dust Seal: Standard

Shaft Seal: NBR - Standard

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Gear wheel set: Standard

Check valve: Yes

Valve function: None

Special Features Internal 1: None

Special Features Internal 2: None

Packaging: Single pack

Option Type: Standard

Xeriwell Motor BMVW inerchange OMVW 630 HD 151B3158 Rotor

The hydraulic motor is used as the hydraulic motor for the traction roller on the

Waratah (John Deere) 758HD and HTH470HD harvester heads.

The working volume is 630 cc/rev, and the working pressure is 200 bar.

Waratah (John Deere) order codes F034495, F069034.

A similar product is the MVW630KLLHD hydraulic motor manufactured by M+S.

Main Specification:

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6
