BMV630 / OMV630
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Drive Motor BMV630 |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMV630 |
| Displacement: | 315cc - 1000cc | Application: | Wood Cone Splitter / Drilling Rigs |
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||

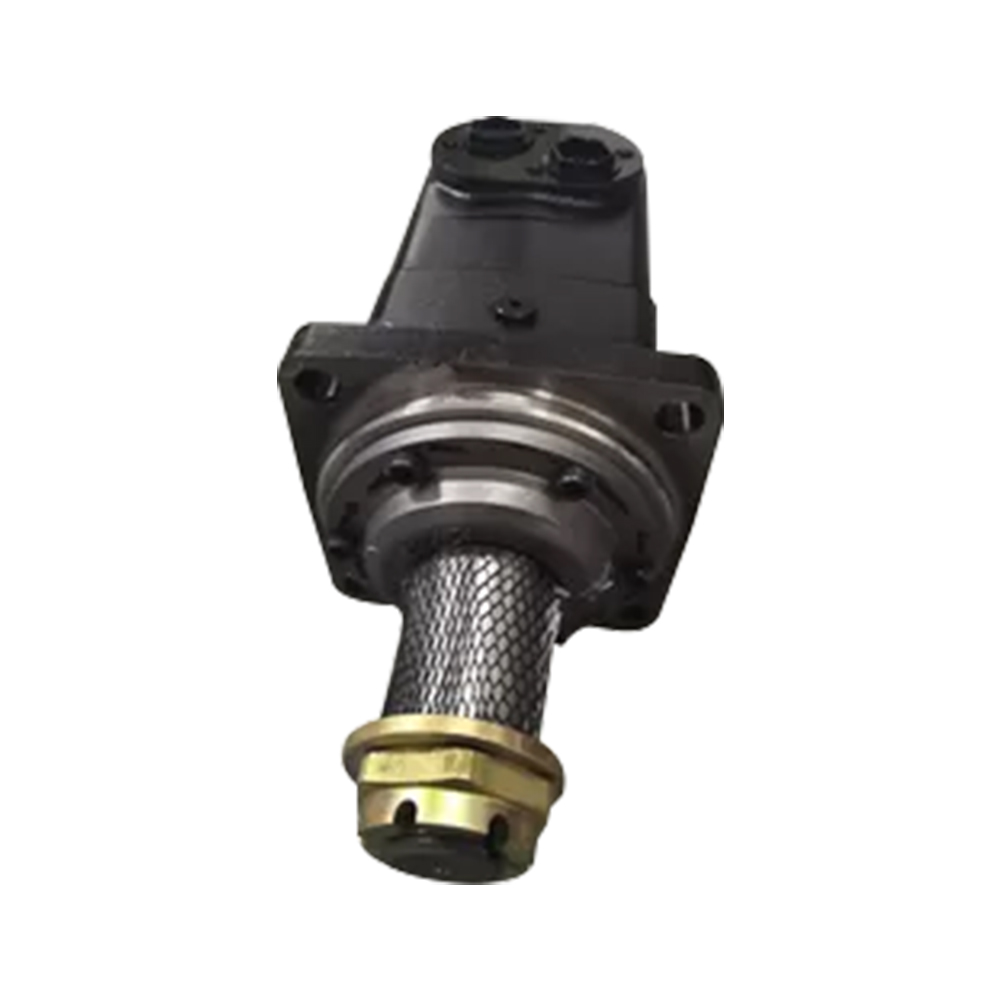

OMV630 151B3103 Cone Shaft 60mm Hydraulic Drilling Motor
Details
| Shaft: Cone Shaft Ø60 |
| Key: B16*10*32 |
| Oil Port: G1 |
• Xeriwell are professional manufacturer produce Hydraulic Orbital Motors.
• Xeriwell Motors match than ,M+S,Eaton,Brevini,Parker and White.
| Xeriwell Motor | Motor | M+S Motor |
| BMV315 | OMV315 | MV315 |
| BMV400 | OMV400 | MV400 |
| BMV500 | OMV500 | MV500 |
| BMV630 | OMV630 | MV630 |
| BMV800 | OMV800 | MV800 |
| BMV1000 | OMV1000 | MV1000 |
Specification
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
Application
• Cone Splitter
• Excavator Splitter
• Drilling Machine
• Mining Equipment
• Hydraulic Drilling Rigs

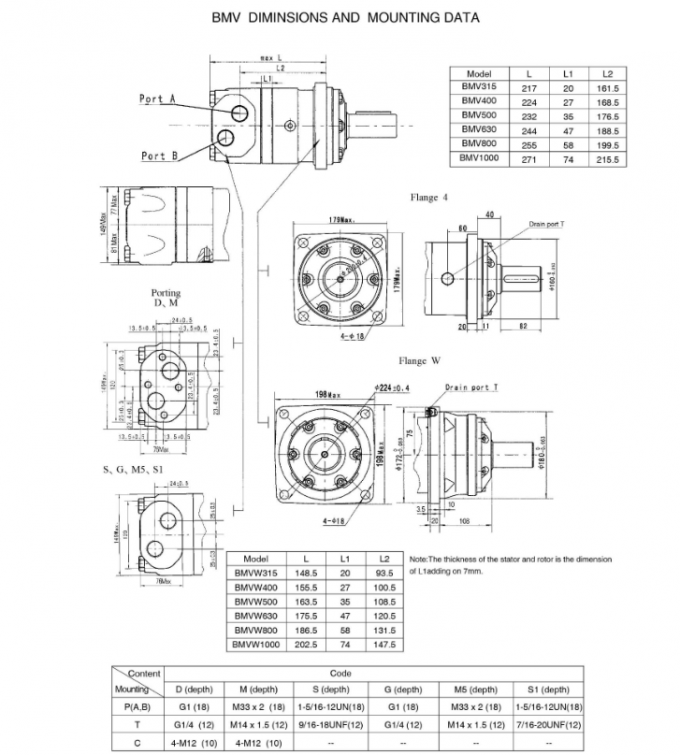

| Model | L | L1 | L2 |
| BMVW315 | 148.5 | 20 | 93.5 |
| BMVW400 | 155.5 | 27 | 100.5 |
| BMVW500 | 163.5 | 35 | 108.5 |
| BMVW630 | 175.5 | 47 | 120.5 |
| BMVW800 | 186.5 | 58 | 131.5 |
| BMVW1000 | 202.5 | 74 | 147.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M5 (depth) | S1 (depth) | |
| P(A,B) | G1 (18) | M33 x 2（18） | 1-5/16-12UN(18) | G1 (18) | M33 x 2 (18) | 1-5/16-12UN(18) |
| T | G1/4（12） | M14 x 1.5 (12) | 9/16-18UNF(12) | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF(12) |
| C | 4-M12（10） | 4-M12（10） | -- | -- | -- | -- |
| Model | L | L1 | L2 |
| BMV315 | 217 | 20 | 161.5 |
| BMV400 | 224 | 27 | 168.5 |
| BMV500 | 232 | 35 | 176.5 |
| BMV630 | 244 | 47 | 188.5 |
| BMV800 | 255 | 58 | 199.5 |
| BMV1000 | 271 | 74 | 215.5 |
