OMT BMT BM4 Orbital Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	BMT160 BMT200 BMT230 BMT250 BMT315 BMT400 BMT500 BMT630 BMT800 Danfoss OMT BM4 OMTW OMTS
Spare parts:	On sale
Availability:





Inquire Add to Basket

Model:
BMT
Brand:
Xeriwell or Others

Product Description

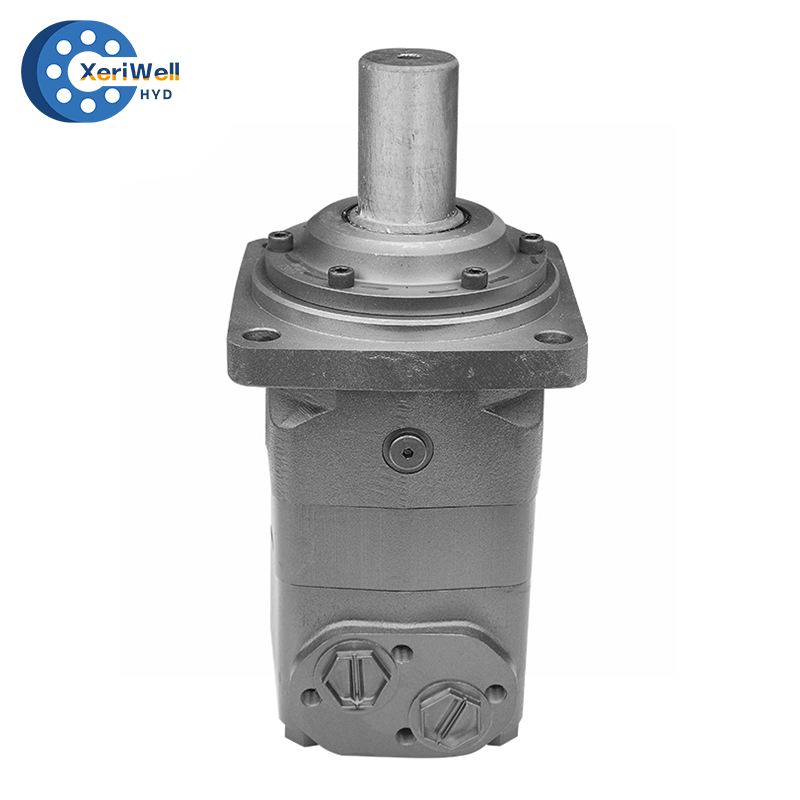

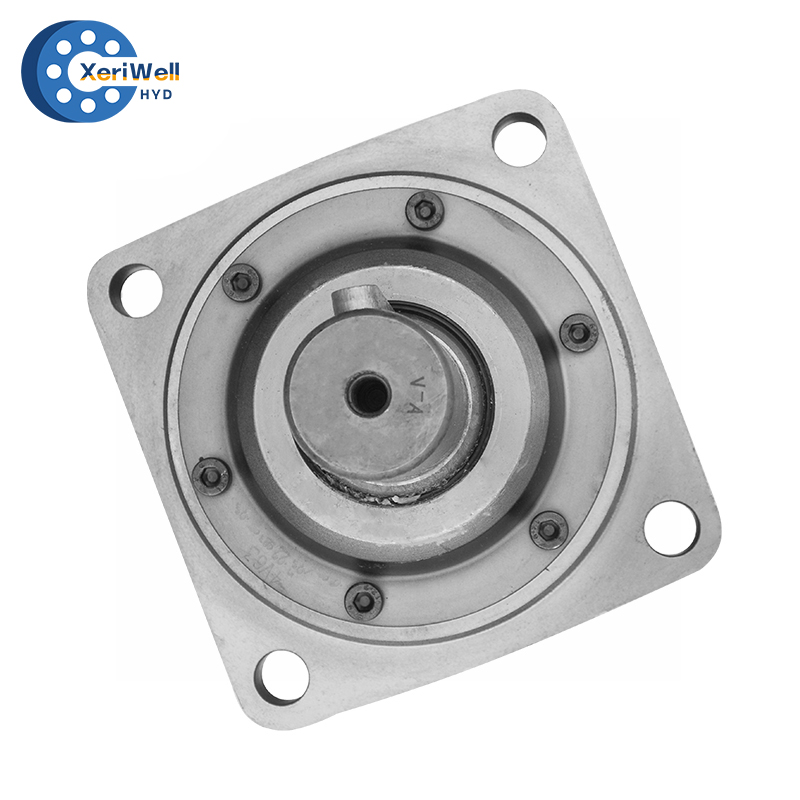

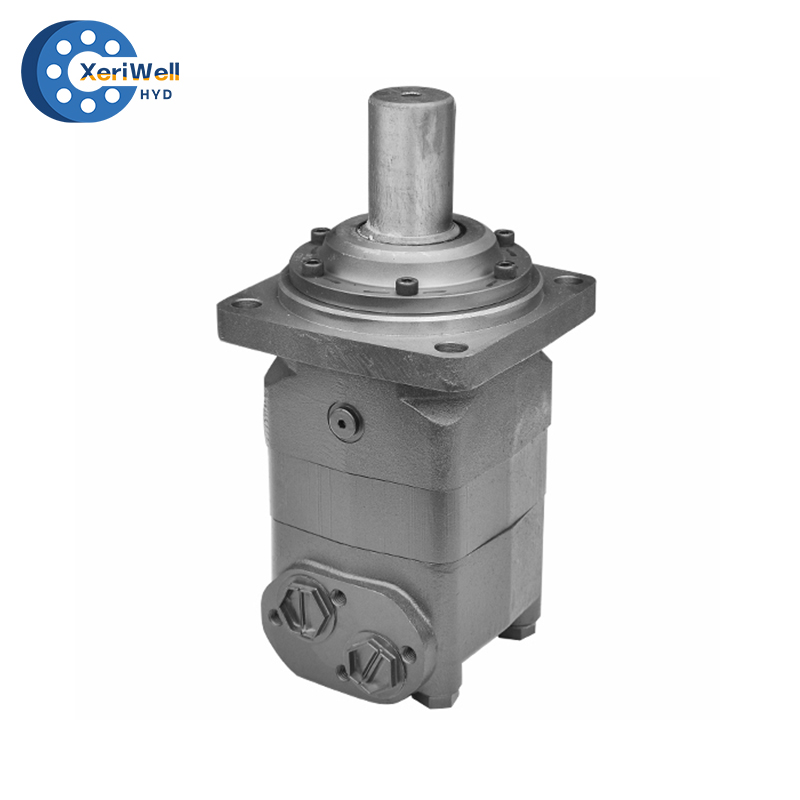

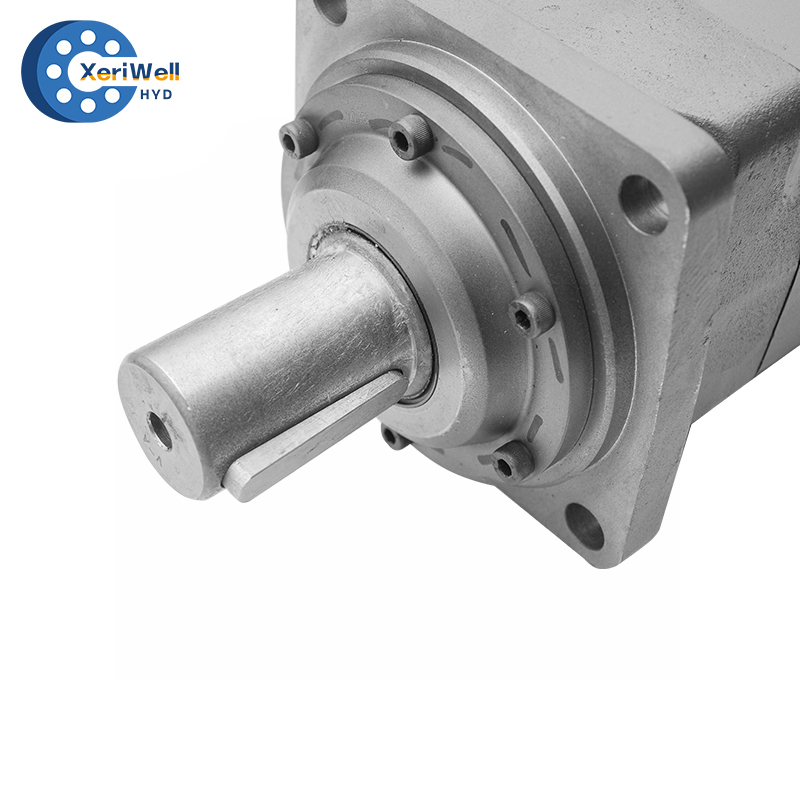

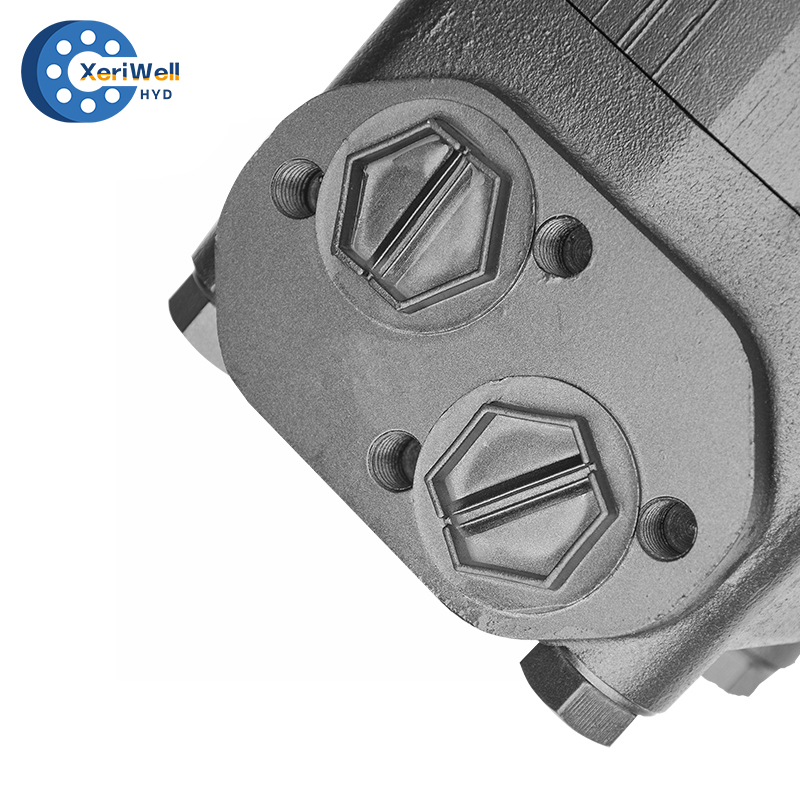

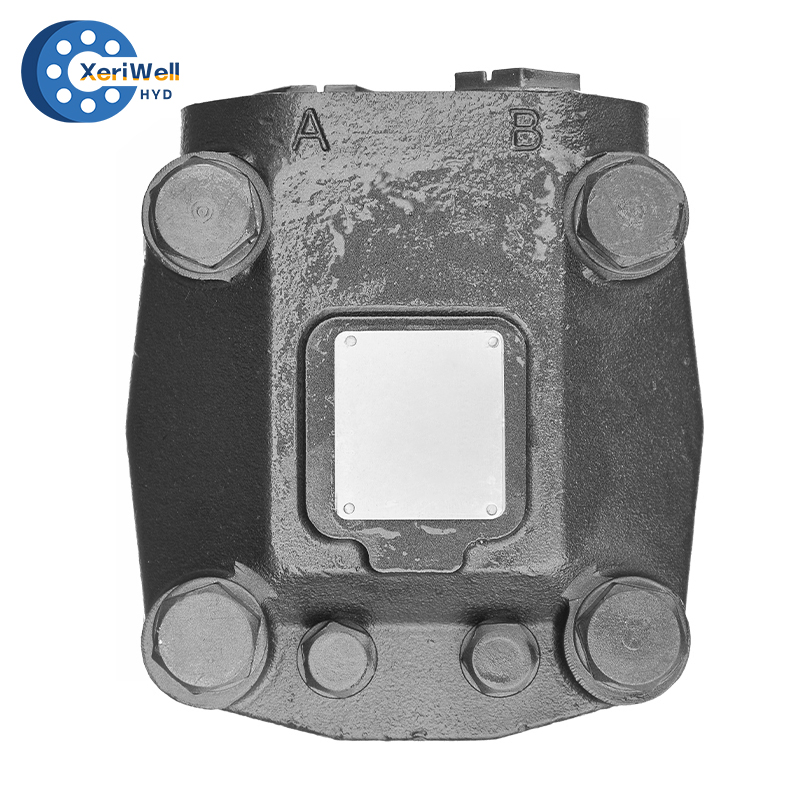

OMT BMT BM4 Orbital Hydraulic Motor and spare parts

OMT BMT 160/200/230/250/315/400/500/630/800 orbital hydraulic motor technical data:

sauer danfoss orbital motor

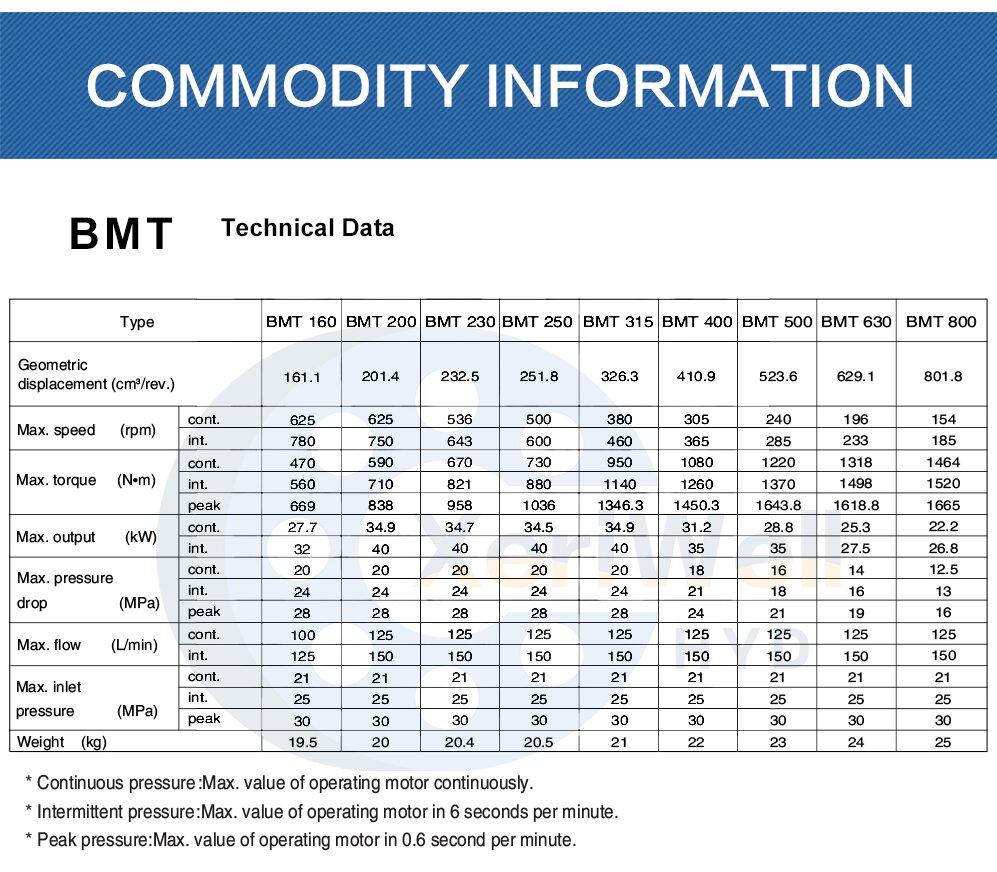

BMT Technical Data
BMT Technical Data
Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3/rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N•m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25
* Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute.
