| Quantity: | |
|---|---|
BMSY-315-W-T1
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Replace: | Eaton 2-200; OMSY |
|---|---|---|---|
| Apply To: | All Hydraulic Winches | Displacement: | 315 Ml/r |
| Flange: | Wheel Flange | Shaft: | 35mm |
| Max Flow: | 90 L/min | Max Speed: | 280 Rpm |
| Highlight: | OMSW hydraulic wheel motor,BMSW hydraulic wheel motor,Straight Cone Shaft hydraulic wheel motor | ||

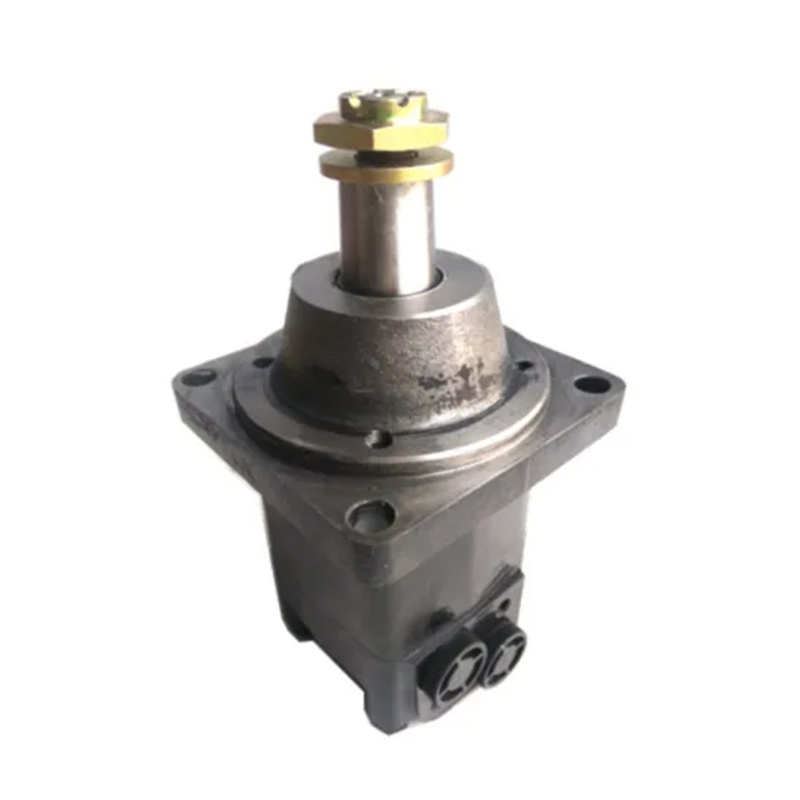

Hydraulic Motor OMSW BMSW Wheel Motors Hydromot Disc Motor Straight Cone Shaft
Eaton Char‑Lynn 2K Series (USA)
OMS Series (Denmark)
M+S MS Series (Bulgaria)
We possess strong capabilities in matching OEM part numbers and delivering premium‑grade customer service.
Displacement: 315 cc/rev
Shaft: 35 mm cone shaft
Max Speed: 280 rpm
Max Torque: 1080 Nm
Max Power: 18.9 kW
Main Port Connection: G 1/2"
Drain Port Connection: G 1/4"
Specifications/ Technical Data:
This Hydraulic Winch Motor is a dis valve type motor. It's displacement start from 80 ml/r to 375 ml/r, speed from 200 rpm to 988 ml/r, torque from 190 N.m to 751 N.m, max output from 11.8 kw to 23.5 kw, max flow from 65 L/min to 90 L/min. Below is the detail specifications of this BMS hydraulic winch motors.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
