| Quantity: | |
|---|---|
BMSY80
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Apply To: | Sweepers,loader Attachment |
|---|---|---|---|
| Flange: | 4bolts Flange | Shaft: | SAE B -6spline Shaft |
| Max Flow: | Cont.65/int.80L/min | Max Speed: | Cont.800rpm/int.988rpm |
| Highlight: | P.T.O Shaft Hydraulic Orbital Motor,OMS80-151F0560 Hydraulic Orbital Motor,clean sweeper Hydraulic Orbital Motor | ||

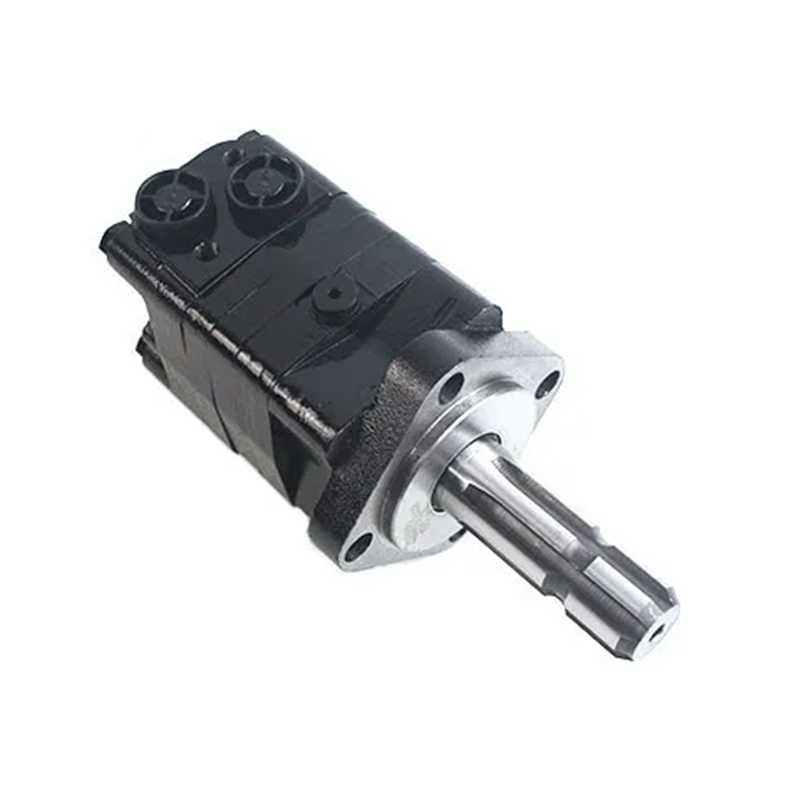

Hydraulic Orbital Motor OMS80-151F0560 P.T.O Shaft for clean sweeper
PTO DRIVE MOTOR DETAILS:
| BRAND | Xeriwell |
| TYPE | BMSY80 |
| REPLACEMENT | OMS80--151F0560 |
| FLANGE | 4 BOLTS FLANGE,DIAMETERS 106.4MM |
| SHAFT | 6 SPLINE SHAFT |
| PORTS | G1/2 |
| APPLICATION | 3-POINT ATTACHMENT |
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
PTO DRIVE MOTOR
Brand new, hydraulic motor with agricultural standard six tooth splined shaft. Tapered roller bearings on output shaft for high axial and radial load capacity. Shaft has retention groove centered 1-1/2" from shaft end.
Interchangeable with the following motor lines: CHAR-LYNN 2000, OMS/OMSS, WHITE RE/DH, PARKER-ROSS MB/TF.
