| Quantity: | |
|---|---|
BMSY315
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Material: | Cast Iron |
|---|---|---|---|
| Flange: | 2 Bolts Flange | Shaft: | Tapered Shaft |
| Max Flow: | Cont.75/int.90L/min | Max Speed: | Cont.240rpm/int.280rpm |
| Highlight: | 2 bolt flange Hydraulic Orbital Motor,Tapered shaft Hydraulic Orbital Motor,BSPP ports Hydraulic Orbital Motor | ||

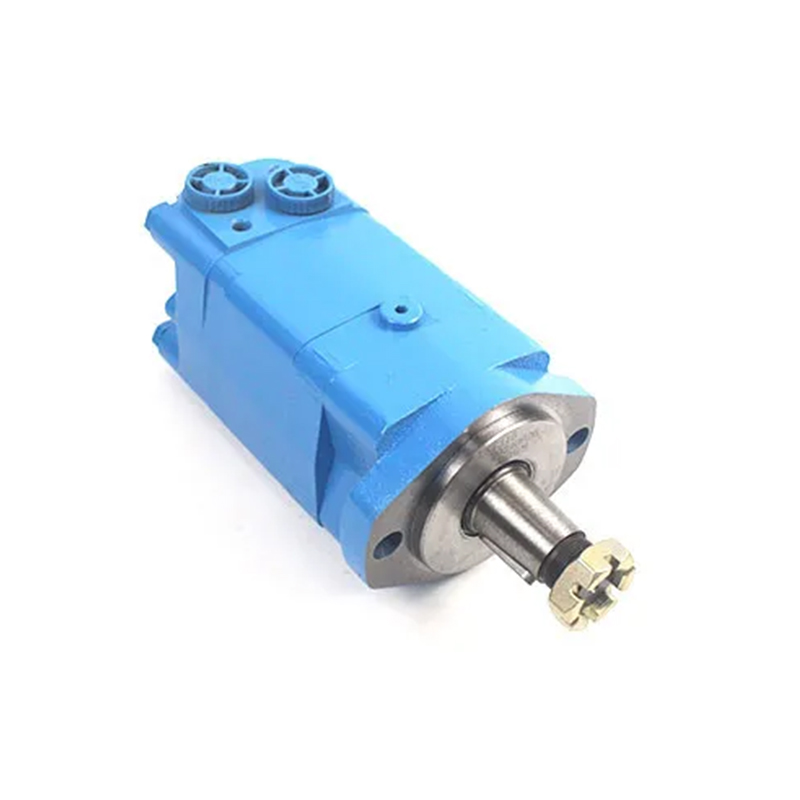

Hydraulic Orbital Motor OMS315, 2 bolt flange tapered shaft with BSPP ports
PTO DRIVE MOTOR DETAILS:
| BRAND | Xeriwell |
| TYPE | BMSY315 |
| REPLACEMENT | OMS315,MS315 |
| FLANGE | 2 BOLTS FLANGE,DIAMETERS 106.4MM |
| SHAFT | Tapered SHAFT |
| PORTS | G1/2 |
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
High torque output, ideal for heavy-load operation
Smooth running performance with steady output and no flow pulsation
Compact and lightweight design, saving installation space
Reversible rotation, available for both clockwise and counterclockwise operation
Wide adjustable speed range, suitable for diverse working conditions
Construction machinery: Excavators, cranes, drilling rigs
Agricultural machinery: Tractors, harvesters
Industrial equipment: Hydraulic presses, conveyors, mixers
Marine systems: Winches, marine steering systems
Mobile handling equipment: Forklifts, aerial work platforms
We provide one-stop solutions for all your hydraulic motor problems.
