| Quantity: | |
|---|---|
BMSY-200-E4-B-D-B
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Replace: | Eaton 2-200; OMSY |
|---|---|---|---|
| Apply To: | All Hydraulic Winches | Displacement: | 200 Ml/r |
| Flange: | 4 Hole, Rhomb | Shaft: | 32mm |
| Max Flow: | 90 L/min | Max Speed: | 280 Rpm |
| Highlight: | high power hydraulic motor,two speed hydraulic motor | ||

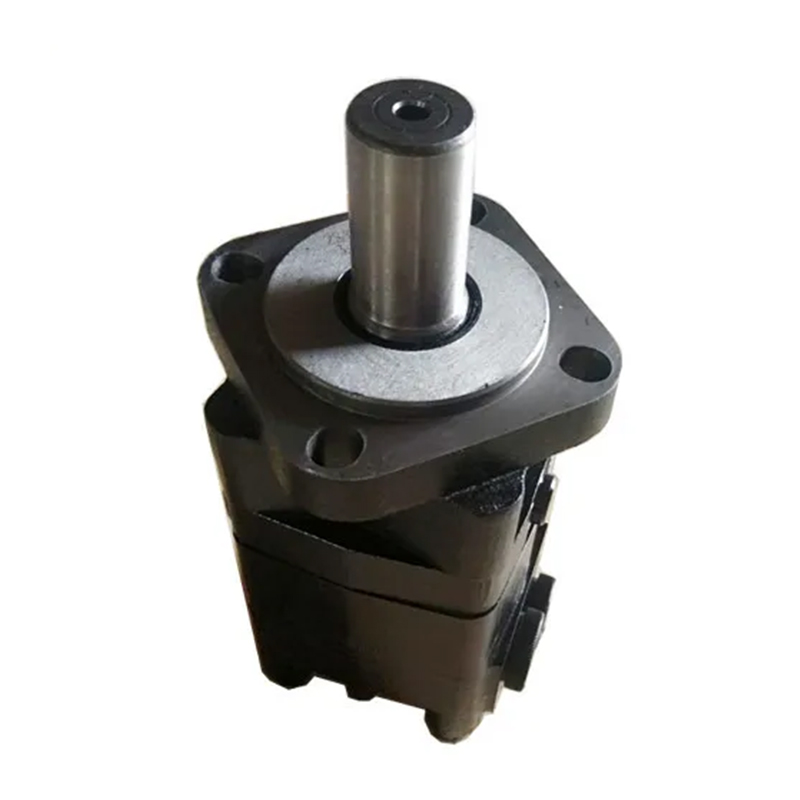

hydraulic motor OMS bms 4-bolt flange Hydromot disc motor straight shaft 32''
BMS indroduction:
This motor is a hydraulic winch motor, be it's widely used on kind of winches of Agri, Farm, Construction and Industrial machineries. Except winched, of course it have numerouse applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Characteristics:
This motor produced by Xeriwell from China, it's a alternative hydraulic motor to Eaton Char lynn 2000 series, also alternative with OMS series, also alternative with M+S MS series, and alternative with many other manufacturers from USA and European.

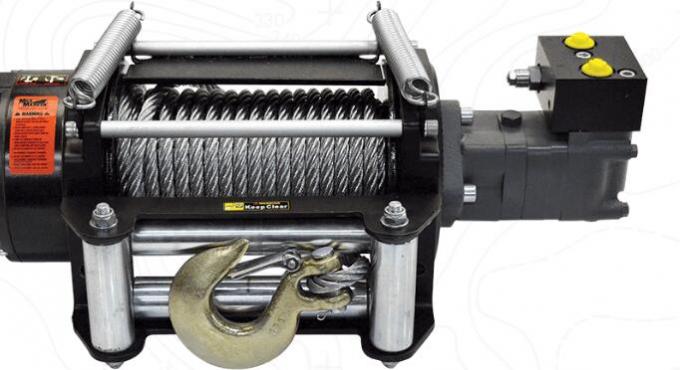

This hydraulic winch motor is a BMSY type, widely used on Farmland irrigation winch, Towing and mooring winches, Cable Laying winch, Ocean ographic research winch, Nautical equipment and winches for fishing boats, Winch as an anchor, Capestani, Special systems for subsea pipelay, Winch Wood from deforestation, Wood processing and cutting machines, Agricultural and forestry machinery, Construction machinery and platform, Ground care and Mowing machinery, etc.
What benefit can you get?
If you are doing hydrualic business, you ae distributing hydraulic components, you can take this motor, add this motor into your catagories, this motor will help you to enlarge your market, If you sell $1,000,000.00 a year, you raise profit by at least 30%, that is $300,000.00.
Xeriwell BMS-200-E4BDB = Eaton Char lynn 2k series, from USA
Xeriwell BMS-200-E4BDB = OMS series, from Danmark
Xeriwell BMS-200-E4BDB = M+S MS series, from Bulgaria
we have strong ability to match OEM part no. and provide you highest service
Specifications/ Technical Data:
This Hydraulic Winch Motor is a dis valve type motor. It's displacement start from 80 ml/r to 375 ml/r, speed from 200 rpm to 988 ml/r, torque from 190 N.m to 751 N.m, max output from 11.8 kw to 23.5 kw, max flow from 65 L/min to 90 L/min. Below is the detail specifications of this BMS hydraulic winch motors.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475
How to work with Xeriwell ?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand that after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at least twice
each item supplied by 'Xeriwell' will be with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
