| Quantity: | |
|---|---|
OMS80
Xeriwell or Others
| Product Name: | Orbital Motor | Displacement: | 80CC |
|---|---|---|---|
| Max Speed: | Cont800/int988rpm | Max Torque: | Cont190/int240 N.m |
| Oil Temperature: | Normal-30℃-90℃ | Max Flow: | Cont 65/int.80 L/min |
| Highlight: | Sauer Danfoss Hydraulic Motor OMS 80,80CC Sauer Danfoss Hydraulic Motor,Hydraulic Orbital Motor 106.4mm Flange | ||

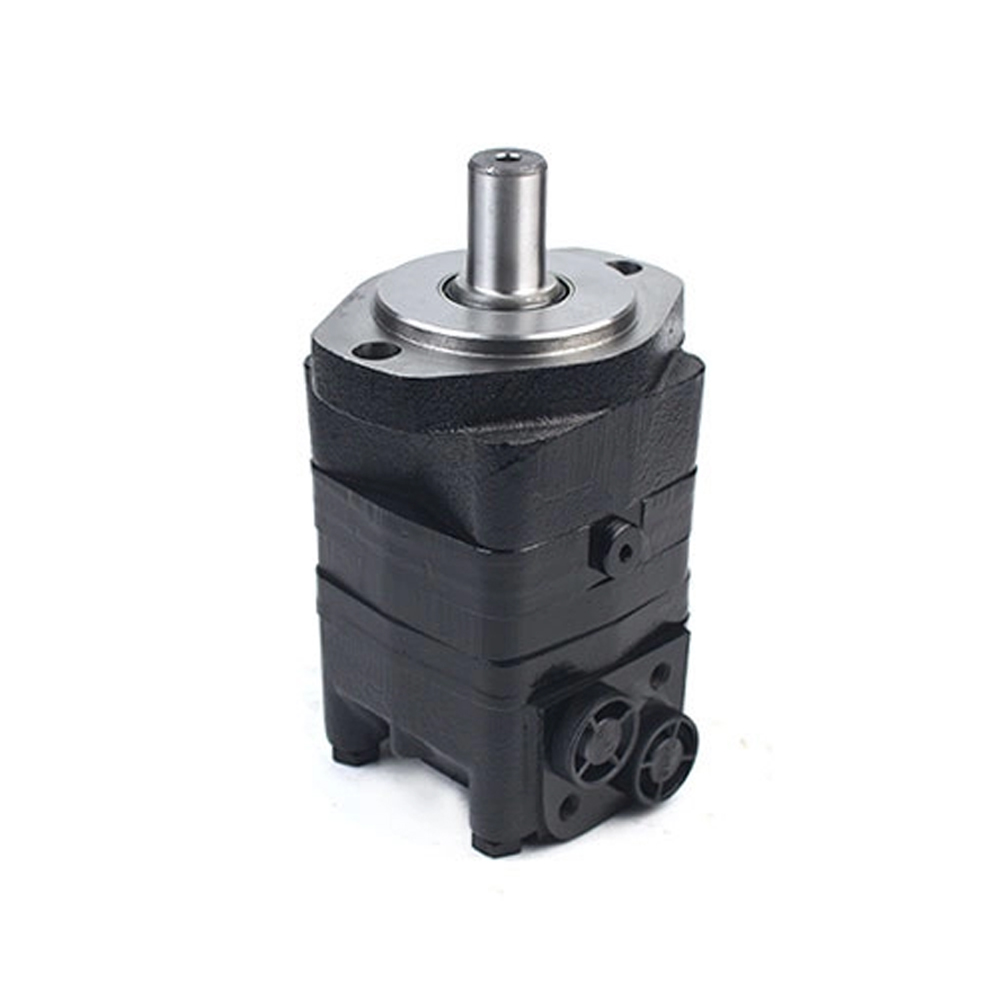

sauer danfoss hydraulic motor OMS 80 ,MS 80 Hydraulic Orbital Motor ,106.4mm flange,25 mm key shaft
OMS 80, MS 80 is a hydraulic orbital motor manufactured by Hanjiu Technology
Port Size:7/8-14 UNF
displacement:80cc
Shaft:25mm key shaft
Port Location Side Ported
Flow Rating :75l/min
Max Speed:cont.800rpm,int.988 rpm
Shaft seal:High pressure seal Kit
function:low leakage
Country of Manufacture China
Main Specifications:
| Type | BMSY 80 | BMSY 100 | BMSY 125 | BMSY 160 | BMSY 200 | BMSY 250 | BMSY 315 | BMSY 400 | BMSY | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
The BMSY series motor adapts the advanced GEROLER gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9001-2015 quality system.
