| Quantity: | |
|---|---|
BMSY160
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Interchanble: | DANFOSS,M+S,TRW |
|---|---|---|---|
| Apply To: | All Hydraulic Rock Drills | Displacement: | 160ml/r |

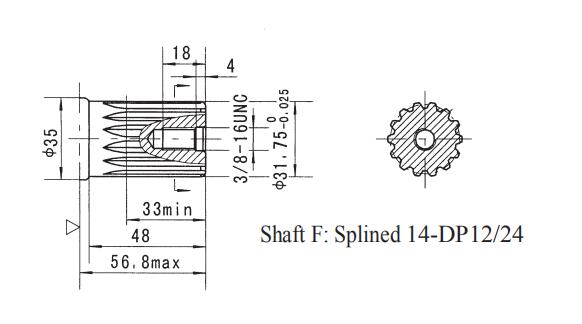

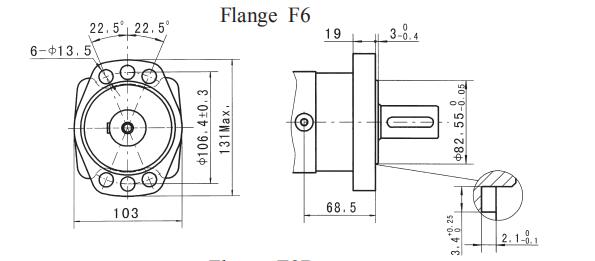

| Flange: | Magneto Flange | Shaft: | 14-dp12/24 Spline Shaft |
| Max Flow: | Cont.75/int.90L/min | Max Speed: | 470rpm |
| Highlight: | Orbital gerotor hydraulic motor,gerotor Orbital hydraulic motor,470rpm gerotor hydraulic motor | ||

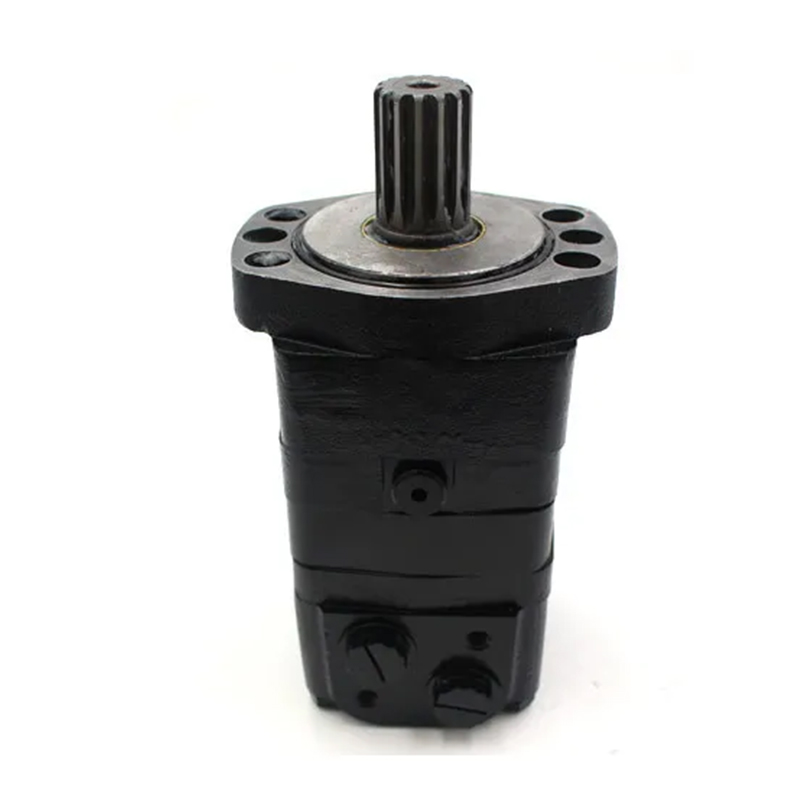

Motor Orbital Gerotor OMS 160 CM⊃3; Eixo 1.1/4 Magneto Flan 14spline
BMSY Series Introduction:
Characteristics:
This motor produced by Xeriwell from China, it's a alternative hydraulic motor to Eaton Char lynn 2000 series, also alternative with OMS series, also alternative with M+S MS series, and alternative with many other manufacturers from USA and European.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Xeriwell is committed to becoming a top‑tier engineering and manufacturing enterprise specializing in complete hydraulic system solutions.
Every hydraulic motor supplied by Xeriwell undergoes at least two rounds of testing at our in‑house test facility.
All products come with an official quality certificate.
Free replacement parts, free products and free maintenance services will be provided for failures or defects caused by quality issues under normal operating conditions within the warranty period.
We offer a 1‑year quality warranty for all our products.
