OMS 160
Xeriwell or Others
| Features: | Compatible With Danfoss | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | OMS 160 |
| Displacement: | 160 Ml/r | Flow Rate: | 75 Lpm Cont. |
| Highlight: | 75lpm Low Speed High Torque Motor,160ml/r Low Speed High Torque Motor,160ml/r High Torque Motor | ||

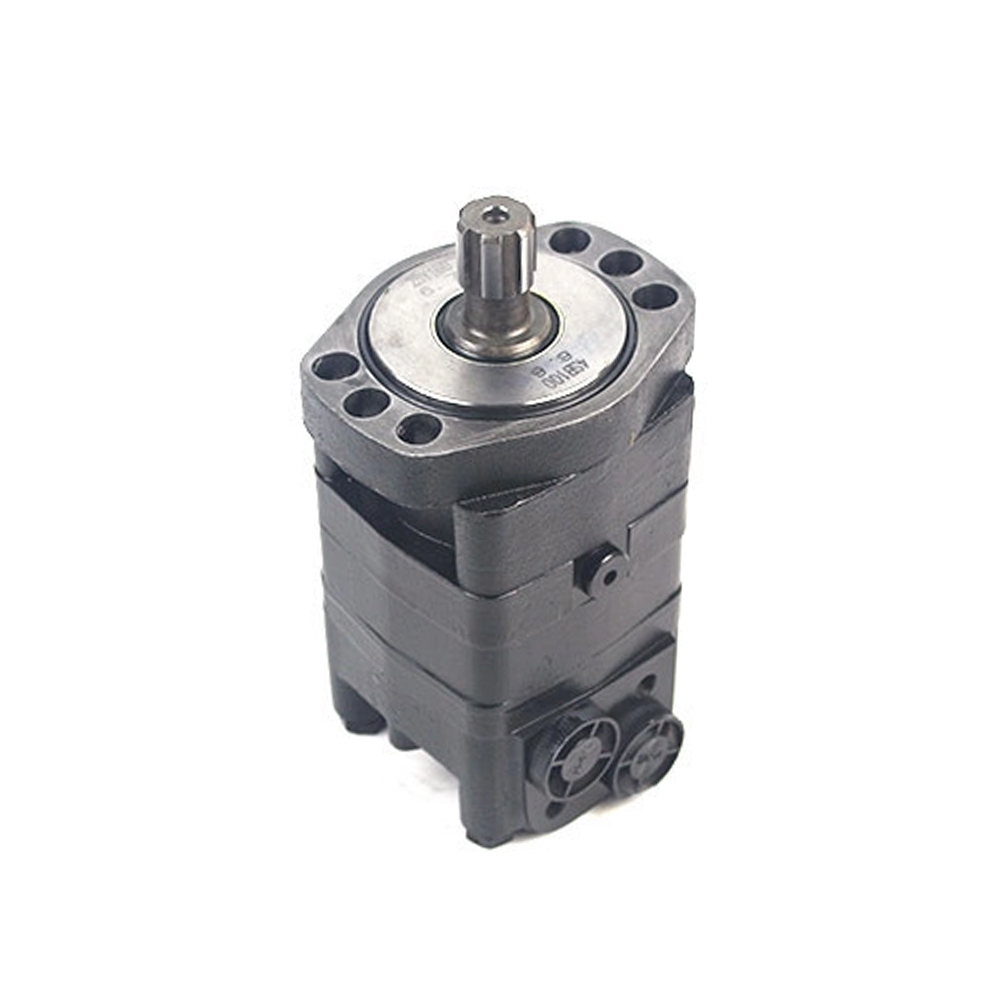

OMS 160 Low Speed High Torque Motor 6B Spline shaft for platform
Quick view of OMS 160:
| Xeriwell Model No. | OMS 160 |
| Displacement | 160 CM3/R |
| Flange | 6 -Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3 |
| Port Position | 7/8-14UNF O-ringˈ 7/16-20 UNF |
| Shaft | Shaft Ø25.4, Splined |
| Rotation | Left and Right |
| Max. speed (rpm) | 470rpm 560rpm |
| Max. torque (N•m) | 485N.M 590N.m |
| Max. flow (L/min) | 75l/min 90l/min |
| Features: | Compatible With Danfoss | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | OMS 160 |
| Displacement: | 160 Ml/r | Flow Rate: | 75 Lpm Cont. |
| Highlight: | 75lpm Low Speed High Torque Motor,160ml/r Low Speed High Torque Motor,160ml/r High Torque Motor | ||
OMS 160 Low Speed High Torque Motor 6B Spline shaft for platform
Quick view of OMS 160:
| Xeriwell Model No. | OMS 160 |
| Displacement | 160 CM3/R |
| Flange | 6 -Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3 |
| Port Position | 7/8-14UNF O-ringˈ 7/16-20 UNF |
| Shaft | Shaft Ø25.4, Splined |
| Rotation | Left and Right |
| Max. speed (rpm) | 470rpm 560rpm |
| Max. torque (N•m) | 485N.M 590N.m |
| Max. flow (L/min) | 75l/min 90l/min |
