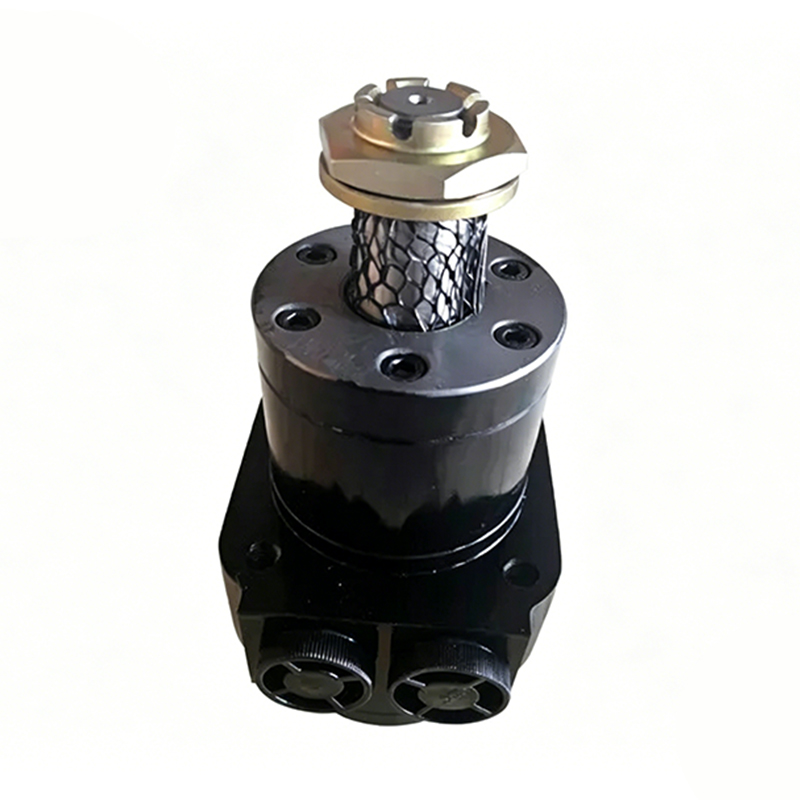

OMPW200 / BMPW200 / MPW200 Hydraulic Wheel Motor for Johnston Sweeper Equipment

You are here: Home » Products » Hydraulic Motor » Ungrouped » OMPW200 / BMPW200 / MPW200 Hydraulic Wheel Motor for Johnston Sweeper Equipment

OMPW200 / BMPW200 / MPW200 Hydraulic Wheel Motor for Johnston Sweeper Equipment

Pictures are for display only, please contact us to choose the right product for you.

Features:	High Pressure Oil Seal	Product Name:	Hydraulic Wheel Motor
Brand Name:	Xeriwell	Model Number:	BMPW160,200,250,315CC
Application:	Sweepers	Advantage:	Match Than , M+S Motor
Highlight:	hydraulic wheel drive motors , hydraulic track motor

Wheel Hydraulic Motor OMPW / BMPW / MPW For JOHNSONS SWEEPER

Characteristic Features:

1. Robust and compact construction
2. Shaft has a very high radial load capacity
3. Low space requirement

4. High starting torque
5. With leak oil outlet
6. Rotor design
7. Wide shaft slip bearing
8. Recessed flange mounting

Other Type:

OMPW50, OMPW80, OMPW100, OMPW125, OMPW160, OMPW200, OMPW250 , OMPW315, OMPW400 hydraulic wheel Motor

Specification:

Type		BMPW 36	BMPW 50	BBMPW 80	BMPW 100	BMPW 125	BMPW 160	BMPW 200	BMPW 250	BMPW 315	BMPW 400	BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8
