| Quantity: | |
|---|---|
BMPHX-050-H2-K-S-TRB
Xeriwell or Others
| Item: | Hydraulic Motor | Direction: | Left And Right |
|---|---|---|---|
| OEM #: | BMPHX-050-H2-K-S-TRB | Displacement: | 50cc |
| Flange: | 2-Bolt | Shaft Size: | 1" Shaft With Woodruff Key |
| Port: | 7/8-14 O-ring | Speed: | 1150 - 1450 Rpm |
| Torque: | 100 - 148 Nm | Max Flow: | 60 - 75 Lpm |
| Highlight: | 1" shaft motor omr,omp 50 hydraulic motor | ||

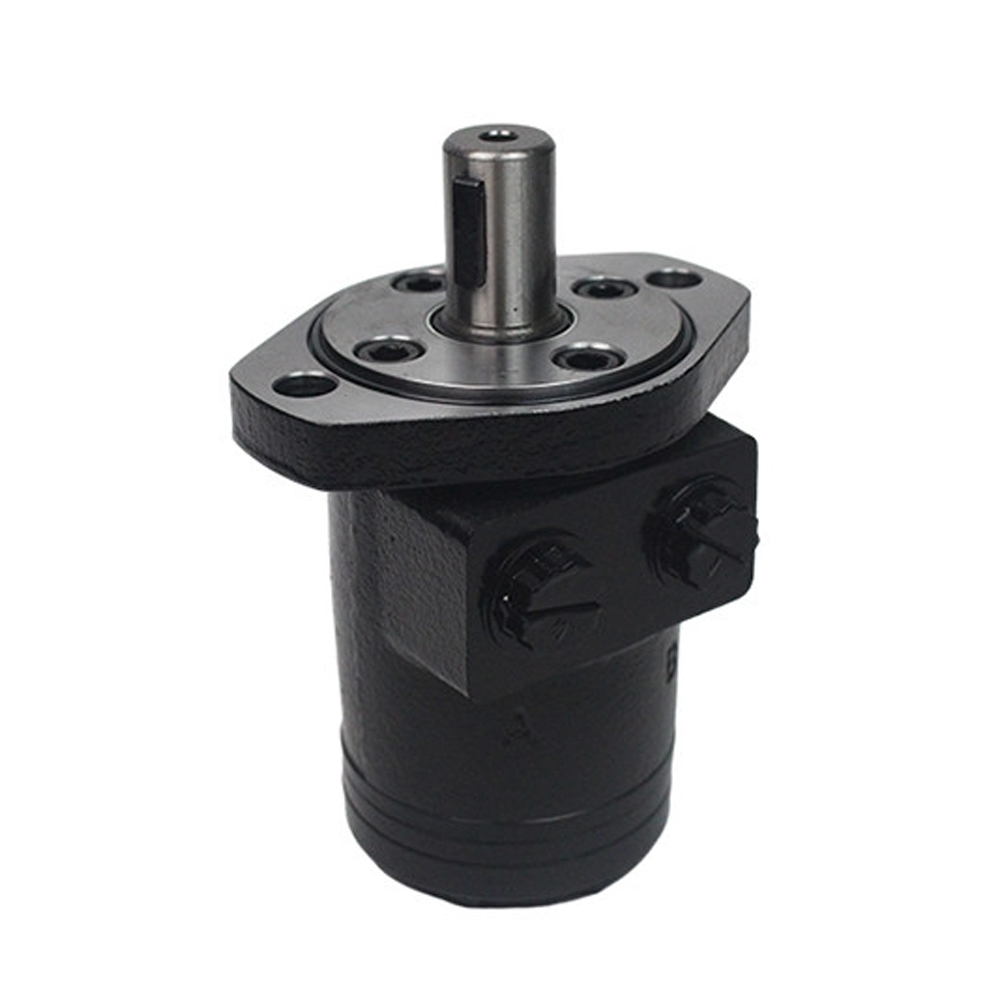

OMP MP H BMPH series hydraulic motor 50ml/r 2 bolt flange 1'' shaft
Quick review:
Item , Hydraulic Motor
Direction , Left and right
OEM #, BMPHX-050-H2-K-S-TRB
Displacement , 50cc
Flange , 2-Bolt
Shaft Size , 1" shaft with woodruff key
Port , 7/8-14 O-ring
Speed , 1150 - 1450 rpm
Torque , 100 - 148 Nm
Max Flow , 60 - 75 Lpm
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |

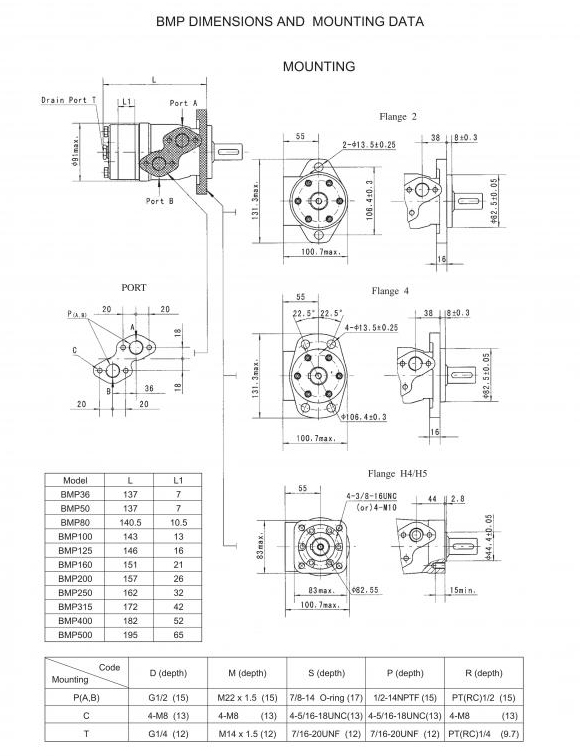

| Model | L | L1 |
| BMP36 | 137 | 7 |
| BMP50 | 137 | 7 |
| BMP80 | 140.5 | 10.5 |
| BMP100 | 143 | 13 |
| BMP125 | 146 | 16 |
| BMP160 | 151 | 21 |
| BMP200 | 157 | 26 |
| BMP250 | 162 | 32 |
| BMP315 | 172 | 42 |
| BMP400 | 182 | 52 |
| BMP500 | 195 | 65 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2（15） | M22 x 1.5（15） | 7/8-14 O-ring（17） | 1/2-14NPTF（15） | PT(RC)1/2 （15） |
| C | 4-M8（13） | 4-M8（13） | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8（13） |
| T | G1/4（12） | M14 x 1.5（12） | 7/16-20UNF（12） | 7/16-20UNF（12） | PT(RC)1/4 （9.7） |
