BMP100
Xeriwell or Others
| Type: | Orbit Motor | Model No.: | OMP100 |
|---|---|---|---|
| Speed: | 615/770rpm | Torque: | 182/227 Nm |
| Max Power: | 11/13KW | Max Flow: | Cont.60/int.75LPM |
| Highlight: | OMP 100 Hydraulic Gerotor Motor,Oval Flange hydraulic motors,Side Ports Hydraulic Gerotor Motor | ||

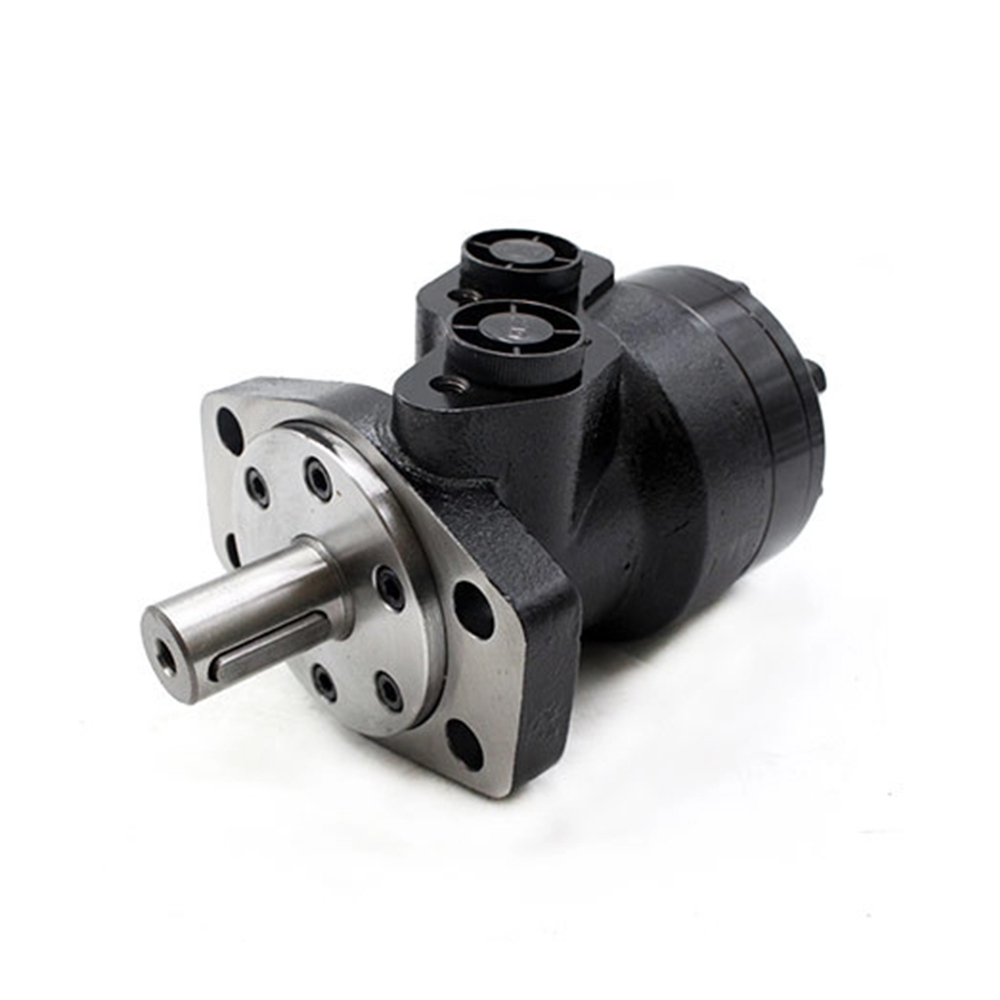

OMP 100 with 32 mm cylindrical shaft, 4 hole oval flange, side ports hydraulic gerotor motor
hydraulic motors specification as below
- Displacement: 100cc
- Flange 4 Ø82.5mm
- Shaft: Straight key32mm, paralle key 10x8x45
- Ports: G1/2
- Drain port:G1/4
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-5011 | 151-5012 | 151-5013 | 151-5014 | 151-5015 | 151-5016 | 151-5017 | 151-5018 | 151-5019 |
| Cylindrical shaft 32 mm | 151-5001 | 151-5002 | 151-5003 | 151-5004 | 151-5005 | 151-5006 | 151-5007 | 151-5008 | 151-5009 |
| Splined shaft 1 inch | 151-5031 | 151-5032 | 151-5033 | 151-5034 | 151-5035 | 151-5036 | 151-5037 | 151-5038 | 151-5039 |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 |
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-1208 | 151-1209 | 151-1210 | 151-1211 | 151-1212 | 151-1213 | 151-1214 | 151-1215 | |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7 |
| Type: | Orbit Motor | Model No.: | OMP100 |
|---|---|---|---|
| Speed: | 615/770rpm | Torque: | 182/227 Nm |
| Max Power: | 11/13KW | Max Flow: | Cont.60/int.75LPM |
| Highlight: | OMP 100 Hydraulic Gerotor Motor,Oval Flange hydraulic motors,Side Ports Hydraulic Gerotor Motor | ||
OMP 100 with 32 mm cylindrical shaft, 4 hole oval flange, side ports hydraulic gerotor motor
hydraulic motors specification as below
- Displacement: 100cc
- Flange 4 Ø82.5mm
- Shaft: Straight key32mm, paralle key 10x8x45
- Ports: G1/2
- Drain port:G1/4
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-5011 | 151-5012 | 151-5013 | 151-5014 | 151-5015 | 151-5016 | 151-5017 | 151-5018 | 151-5019 |
| Cylindrical shaft 32 mm | 151-5001 | 151-5002 | 151-5003 | 151-5004 | 151-5005 | 151-5006 | 151-5007 | 151-5008 | 151-5009 |
| Splined shaft 1 inch | 151-5031 | 151-5032 | 151-5033 | 151-5034 | 151-5035 | 151-5036 | 151-5037 | 151-5038 | 151-5039 |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 |
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-1208 | 151-1209 | 151-1210 | 151-1211 | 151-1212 | 151-1213 | 151-1214 | 151-1215 | |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7 |
