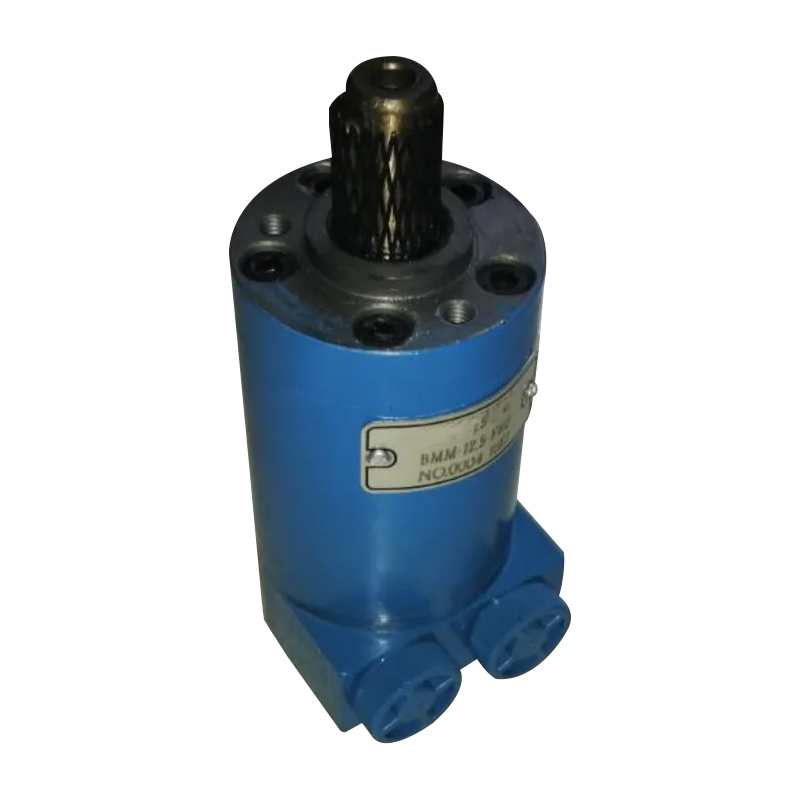

OMM32 Orbital Hydraulic Motor | Model BMM32-MAE, Part No.151G0006, Shaft Φ16mm, G3/8'' Port

OMM32 Hydraulic Orbital Motors 151G0006 BMM32-MAE 16mm G3/8''

Quick details:

• BMM32-MAE = 151G0006 OMM32

One type of Xeriwell motor, which can replace OMM series, M+S, White, Eaton etc.

• Xeriwell BMM = OMM = M+S MM = EATON J

• With the axial oil distribution structure, it is smaller, high efficiency and long life.

• Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

• The Gerotor gear set design and provide compact volume,high power and low weigth.

• Rolling bearing design, which has a greater lateral load capacity.

• Direction of shaft rotation and speed can be controlled easily and smoothly.

• A variety of connection types of flange, output shaft and oil port.

• Can be used on Agricultural, Construction, Forestry, Mining, Industrial, etc.

Applications:

• Machines for agriculture and forestry

• Mining machinery

• Construction plant equipment and access platforms

• Grass cutting machinery

• Special vehicles

• Ship's equipment and winches on fishing vessels

• Machine tools

• Woodworking and sawmill machinery

• Plastic and rubber machinery etc.

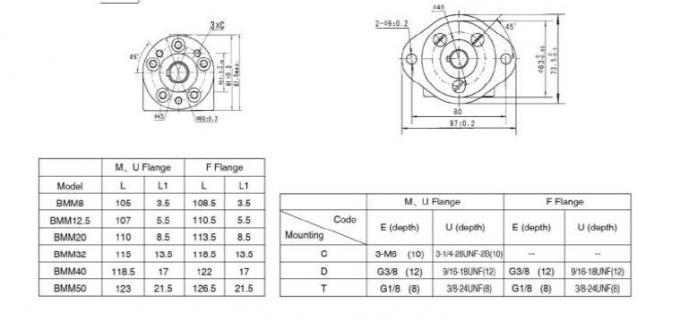

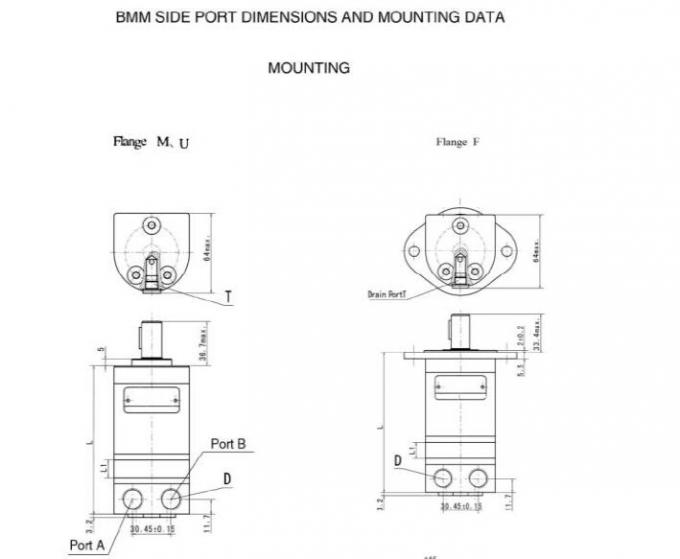

Main Specifications:

Model Crossing:
