BMM32-MAEB
Xeriwell or Others
| Product: | Small Hydraulic Motor | Replace: | OMM32, 151G0003 |
|---|---|---|---|
| Alternative: | Eaton J Series | Performance: | 99% |
| Displacement: | 32 Ml/r (32 Cc, 32 Cm3/r) | Flange: | 3 Hole Mounting |
| Max Speed: | 800 Rpm | Net Weight: | 2.2 Kgs |
| Max Flow: | 25 L/min | Measurement: | 1pc/10x10x20cm |
| Highlight: | compact hydraulic motor,omm hydraulic motor | ||

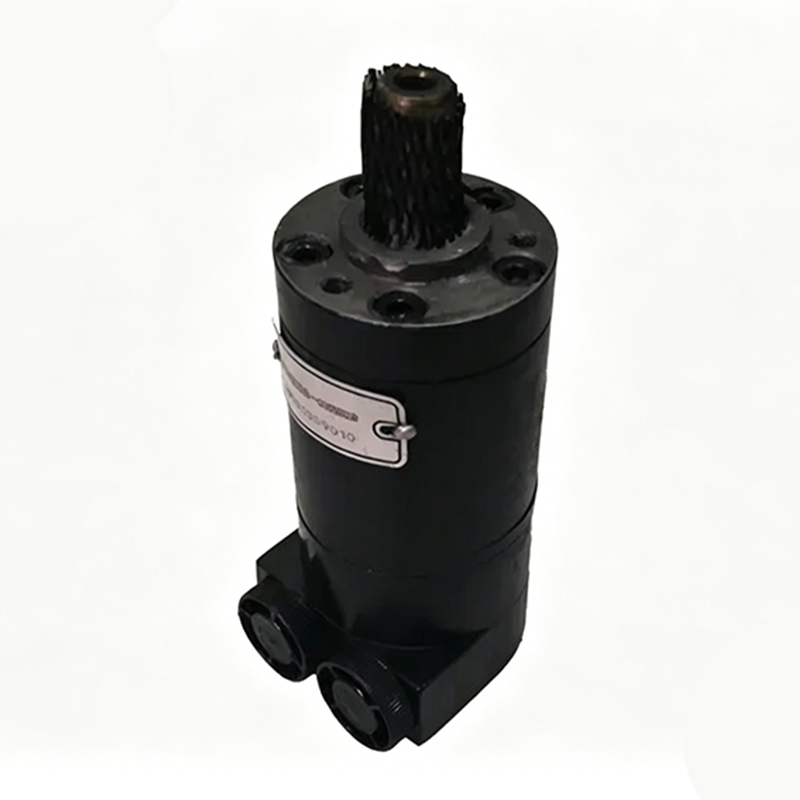

151G0003 OMM32 BMM32-MAEB Small Hydraulic Motor, G3/8 oil ports
BMM indroduction:
This motor is a Small hydraulic motor, also called Gerotor Hydraulic Motor, also called Orbit Hydraulic Motor, or Low Speed High Torque Hydraulic Motor, also spool valve hydraulic motor.
What benefit can you get?
As it's performance is 99% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in numerous industries, and have very large market as aftermarket parts or OEM parts. If you sell $1,000,000.00 a year, you raise profit by at least 30%, $300,000.00.
Xeriwell BMM32-MAEB = Eaton Char lynn J series, from USA
Xeriwell BMM32-MAEB = OMM series, from Danmark
Xeriwell BMM32-MAEB = M+S MM series, from Bulgaria
we have strong ability to match OEM part no. and provide you.
BMM series small hydraulic motor replace 151G0003 OMM32
Specifications/ Technical Data:
This Small Hydraulic Motor BMM is a small motor compare with other series like BMS(OMS,MS, MSY), BMT(OMT, MT), BMV(OMV, MV), it's displacement start from 8 ml/r to 50 ml/r, speed from 400 rpm to 2450 ml/r, torque from 11 N.m to 100 N.m, max output from 1.8 kw to 3.2 kw, max flow from 16 L/min to 25 L/min. Below is the detail specifications of this BMM Small hydraulic motors.
BMM32-MAEB
displacement 32 ml/r
3 hole mounted small hydraulic motor
16 mm shaft
G 3/8 oil ports
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
How to work with Xeriwell?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand what after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice
each item supplied by 'Xeriwell' will with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
