| Quantity: | |
|---|---|
BMM
Xeriwell or Others
| Features: | Same As OMM | Products Name: | Hydraulic Orbital Motor BMM OMM |
|---|---|---|---|
| Model No.: | BMM | Displacement: | 8cc, 12.5cc, 20cc, 32cc, 40cc, 50cc |
| Warranty: | 12-18 Months | Application: | Heavy Equipments, Construction Machines, Mining Machines, Agricutural Machines And Industrial Machines Etc. |
| Highlight: | compact hydraulic motor,omm hydraulic motor | ||

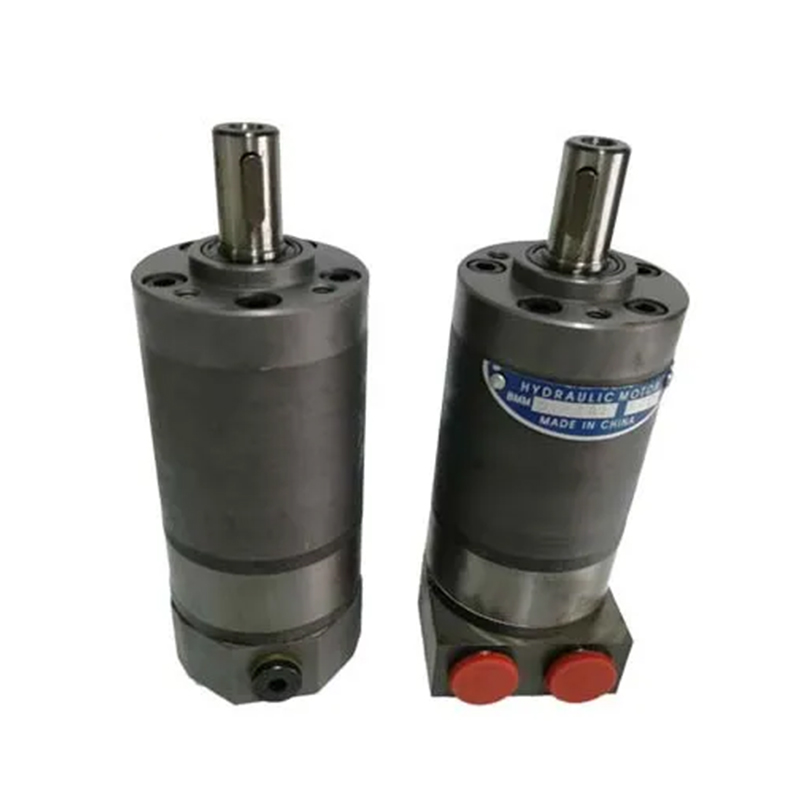

Small Hydraulic Motors BMM OMM 8cc 12.5cc 50cc Hydraulic Components Manufacturer
1. Characteristic features:
BMM series motor are small volume,economical type,which is designed with shaft distribution flow, which adapt
the Gerotor gear set design and provide compact volume,high power and low weigth.
Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
Advanced construction design, high power and low weight.
2. Main specification
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
3. BMM Hydraulic Orbit Motor Applications:
Agricutural Machines: Various Combine Harvesters, Seeders, Rotary Tillers, Lawn Mowers, Sprayers, Feed Mixers, Ground Boring Machines.
Fisheries use: Netting Machine
Construction machines: Rollers, Cement Mixers, Sweepers.
Industrial machines:Winding Machines, Textile Machines, Printing Presses, Business Washing Machines.
