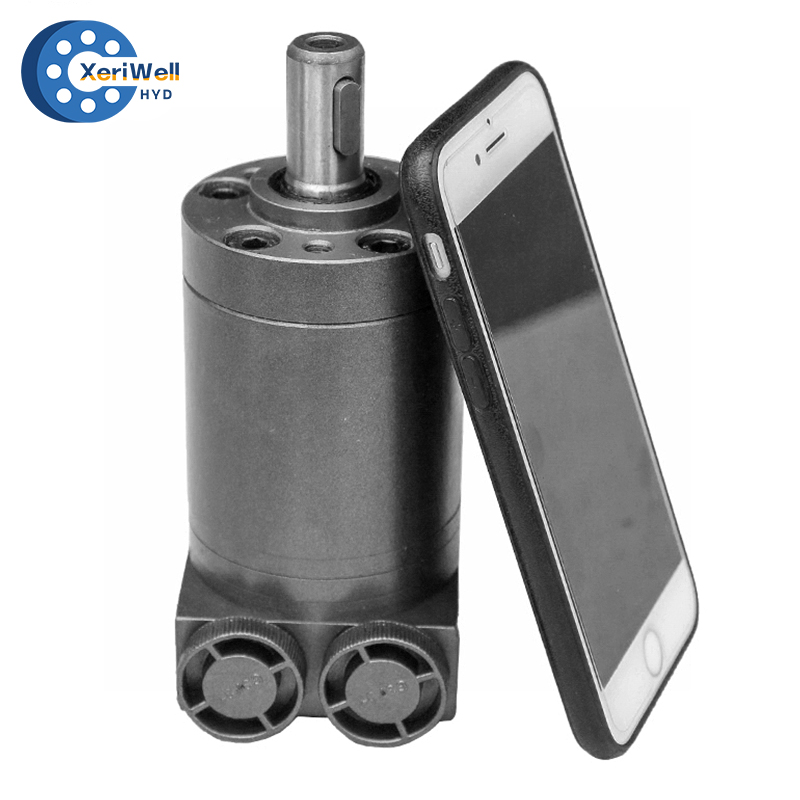

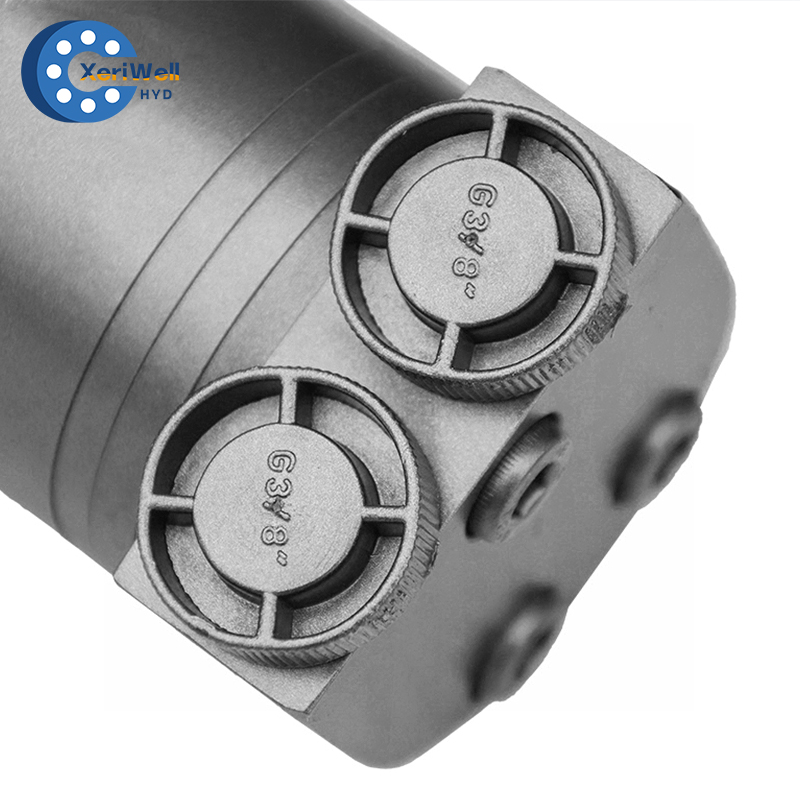

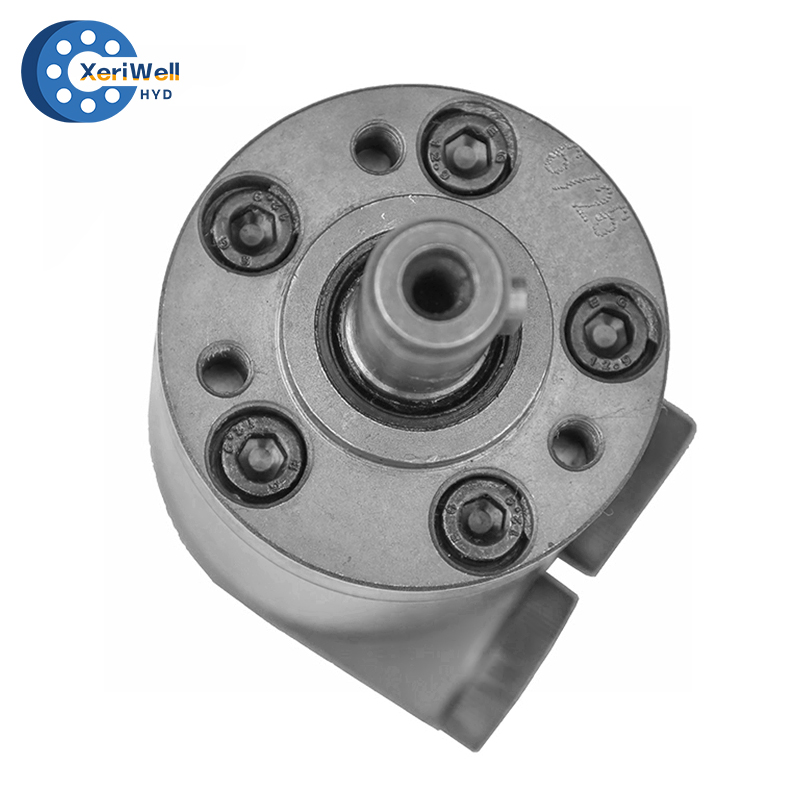

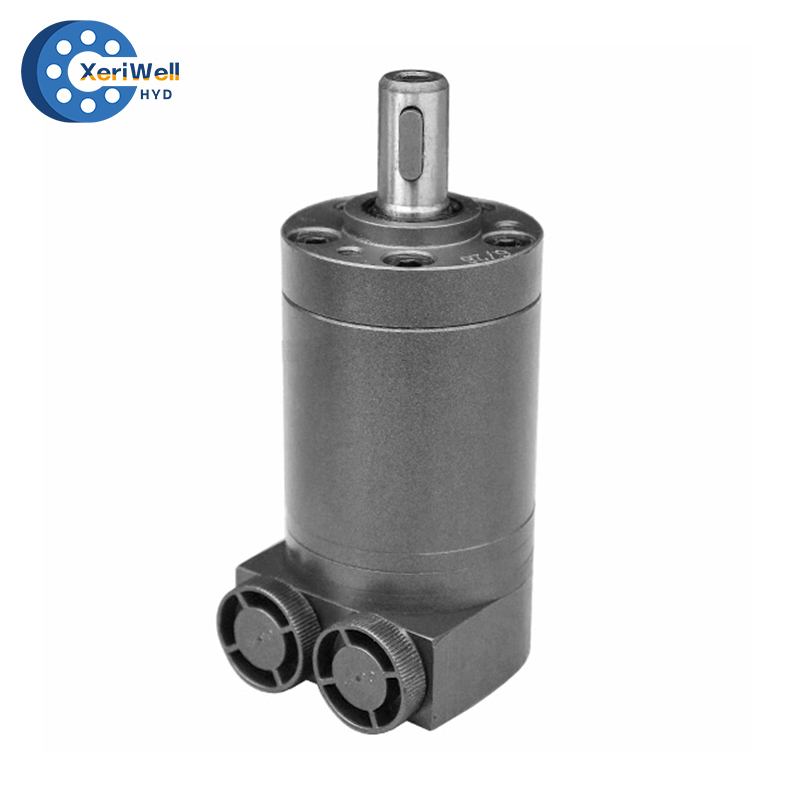

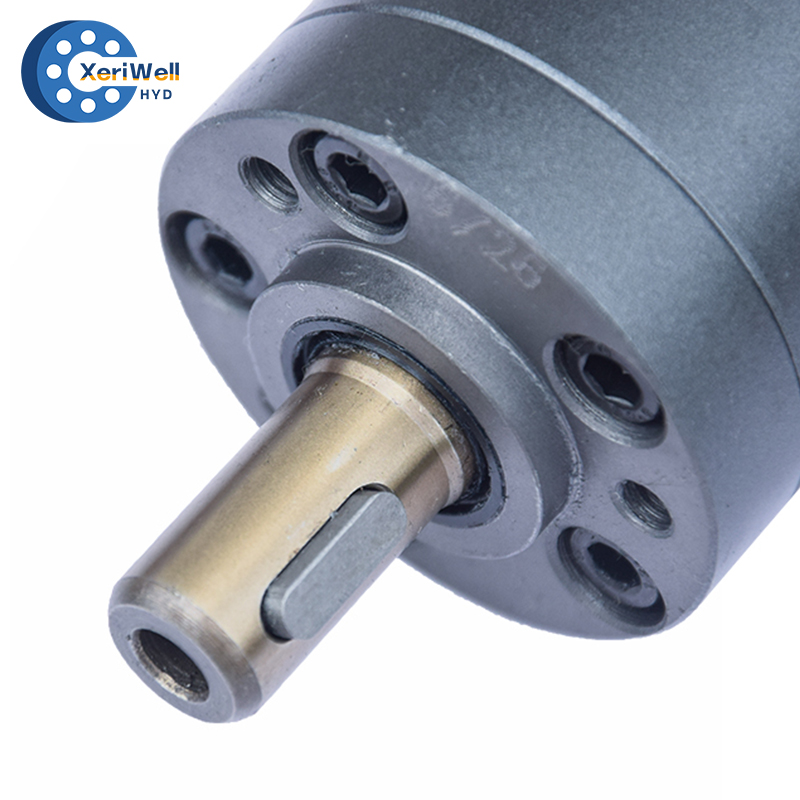

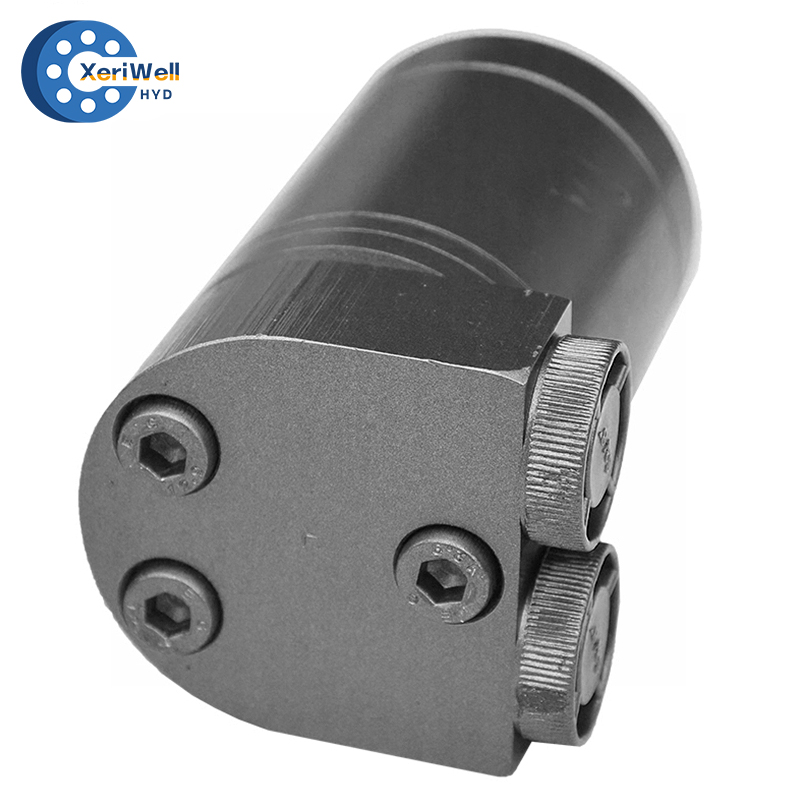

OMM BMM Orbital Small Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	BMM8 BMM12.5 BMM20 BMM32 BMM40 BMM50 Danfoss OMM
Spare Parts:	On Sale
Availability:





Inquire Add to Basket

Model:
BMM/OMM
Brand:
xeriwell or others

OMM BMM Orbital Small Hydraulic Motor and Sapre parts

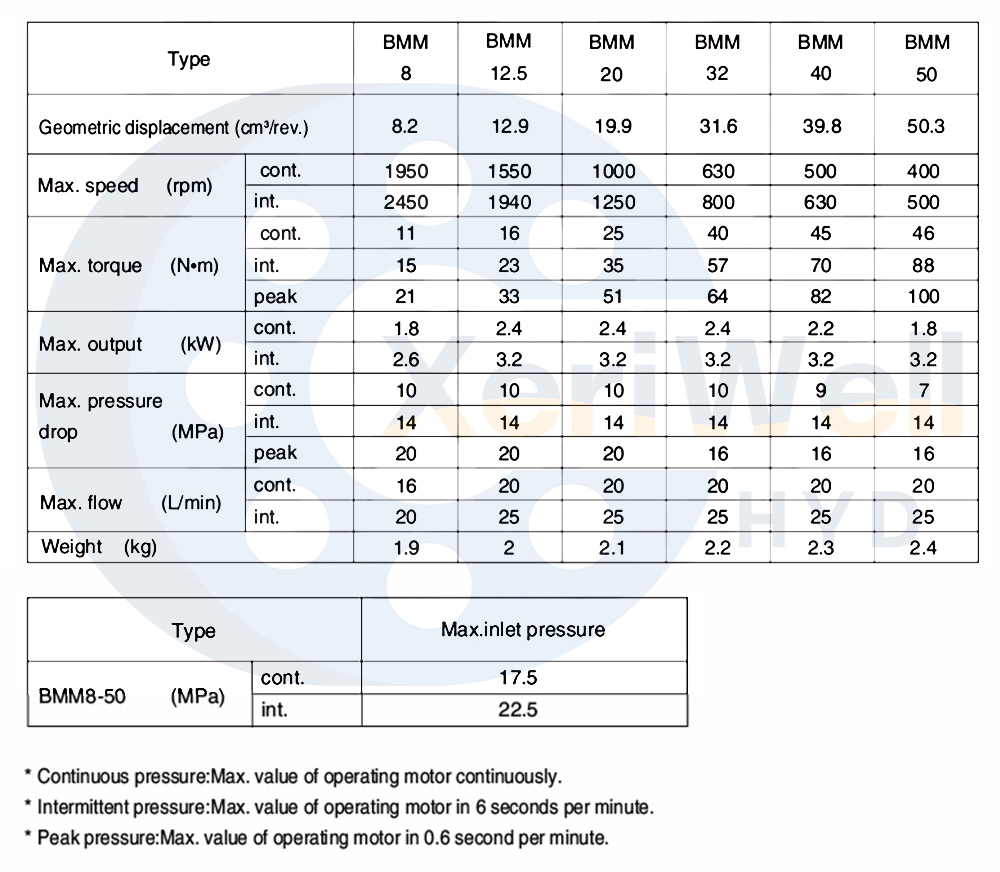

BMM OMM 8/12.5/20/32/40/50 Orbital Hydraulic Motor Technical Data：

bmm50

Type		BMM 8	BMM 12.5	BMM 20	BMM 32	BMM 40	BMM 50
Geometric displacement (cm3/rev.)		8.2	12.9	19.9	31.6	39.8	50.3
Max. speed (rpm)	cont.	1950	1550	1000	630	500	400
Max. speed (rpm)	int.	2450	1940	1250	800	630	500
Max. torque (N•m)	cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max. output (kW)	cont.	1.8	2.4	2.4	2.4	2.2	1.8
Max. output (kW)	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max. pressure drop (MPa)	cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max. flow (L/min)	cont.	16	20	20	20	20	20
Max. flow (L/min)	int.	20	25	25	25	25	25
Weight (kg)		1.9	2	2.1	2.2	2.3	2.4

Type		Max.inlet pressure
BMM8-50 (MPa)	cont.	17.5
	int.	22.5
* Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute.
