OMH 315
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | OMH | Displacement: | 315ml/r |
| Flange: | 2 Bolt | Shaft: | 1'' SAE 6B |
| Port Size: | G 1/2 | Drain Line: | G 1/4 |
| Highlight: | OMH 315 Hydraulic Motor,Hydraulic Motor Danfoss Version,Hydraulic Motor With A2 Flange | ||

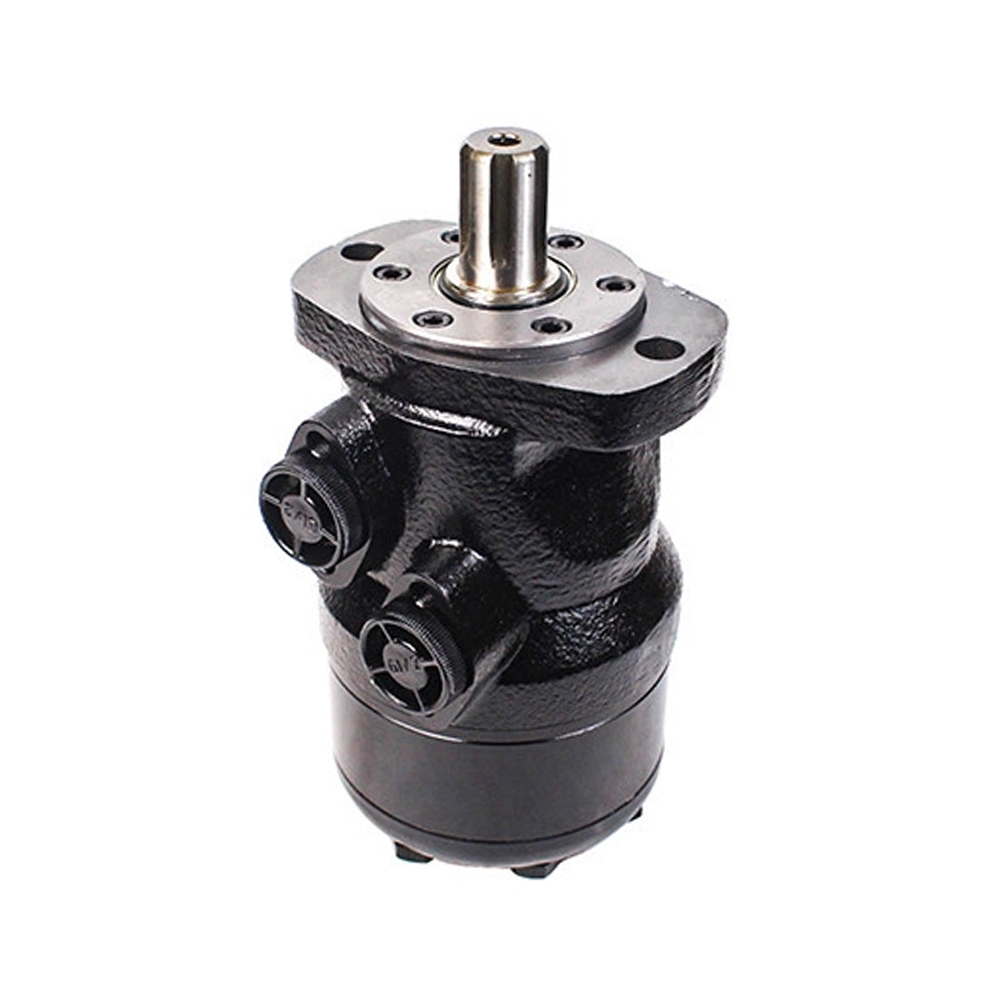

OMH 315 Hydraulic Motor, Danfoss version, with A2 flange, 1'' SAE 6B shaft, port size 1/2 BSPP
Quick review:
Output volume (cc/rev): 314,9
Shaft Ø (mm): 25.4mm
max r.p.m.: 282
Torque max. (Nm): 980
Power max. (kW): 15.5
Pressure difference (bar): 225
Volume flow max. (l/min): 90
Shaft seal version: Standard
Engine version: with needle bearing
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 186,8
L1 (mm): 43,5
Main specifiction:
| Type | OMH 200 | OMH 250 | OMH 315 | OMH 400 | 0MH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |

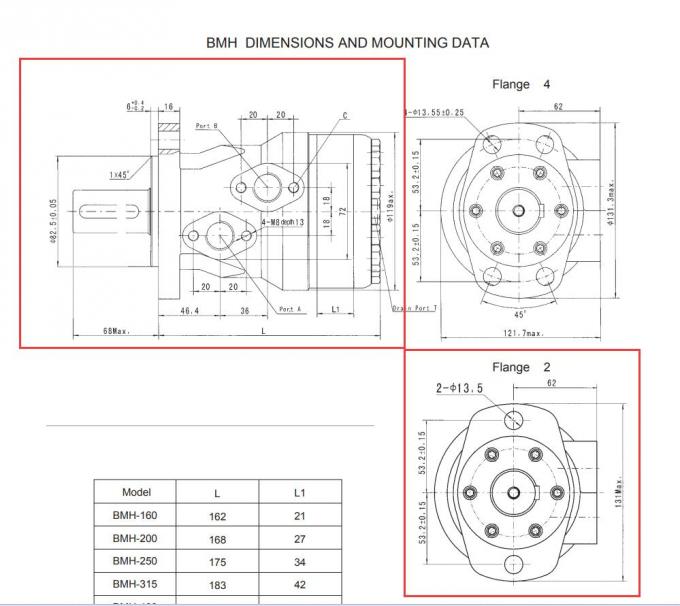

Measurement:
