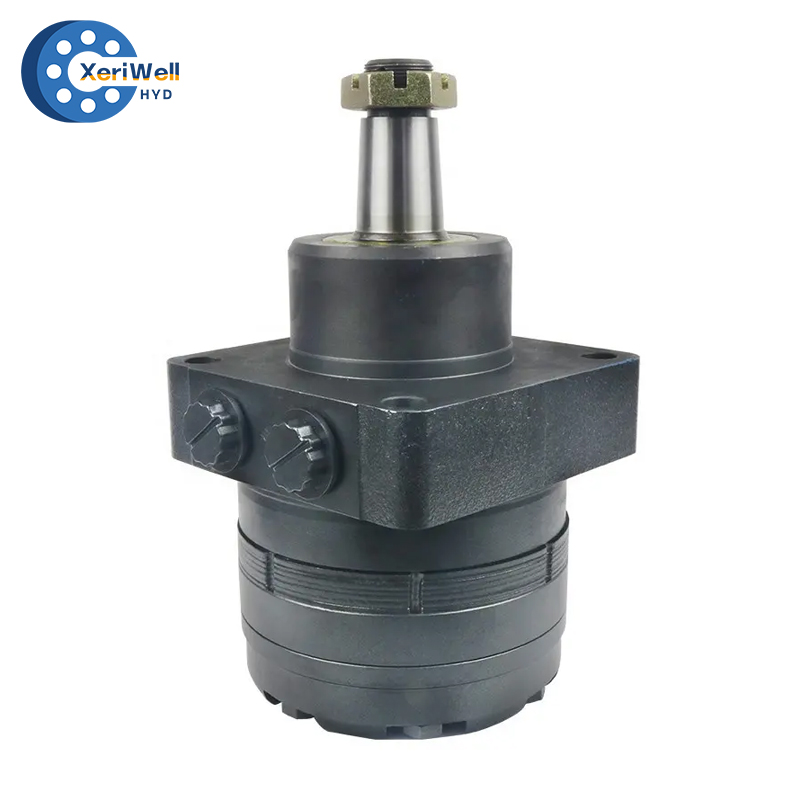

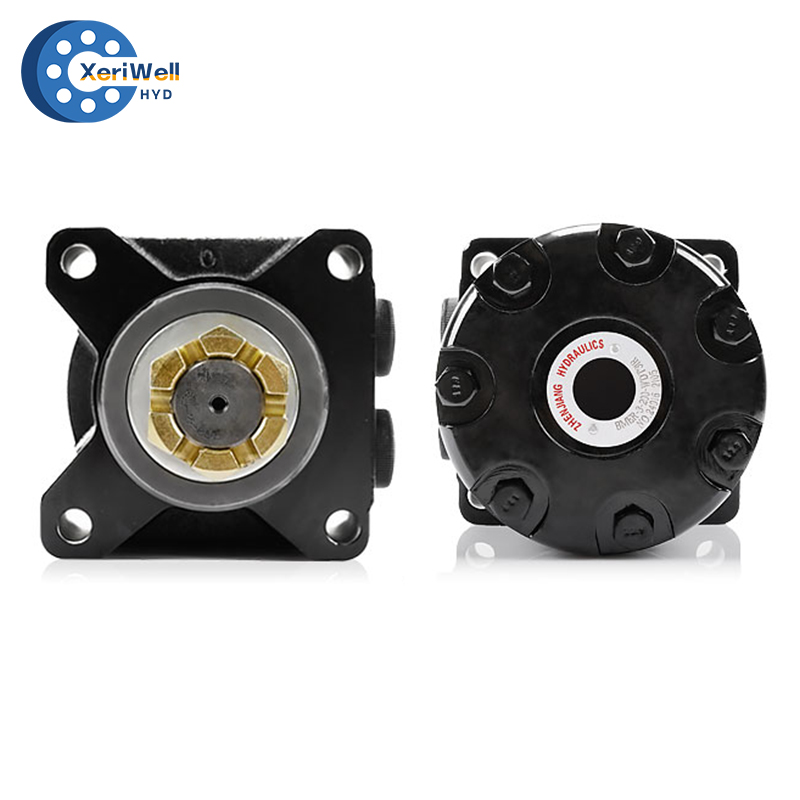

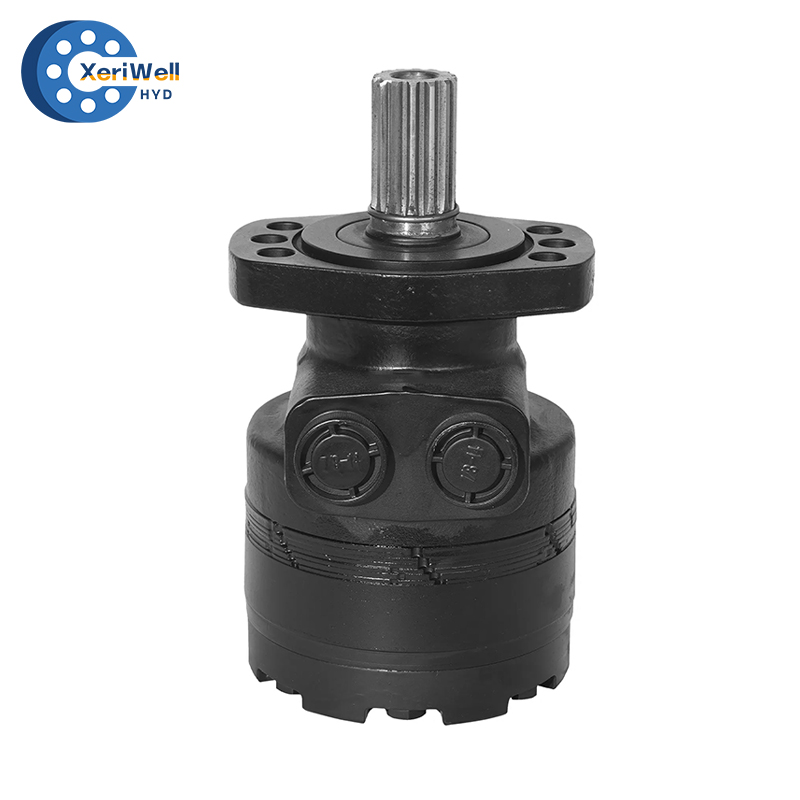

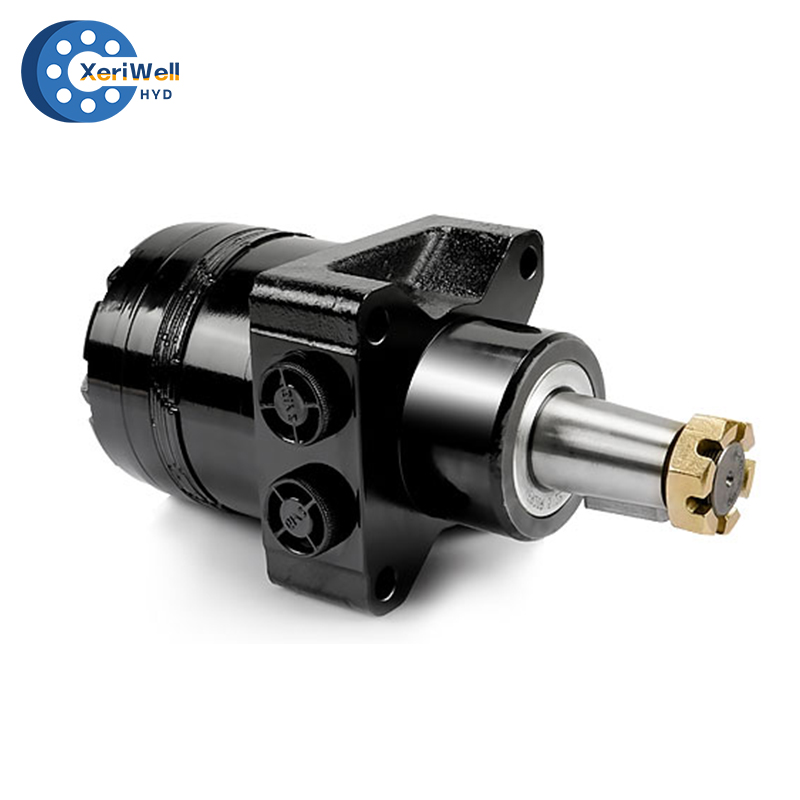

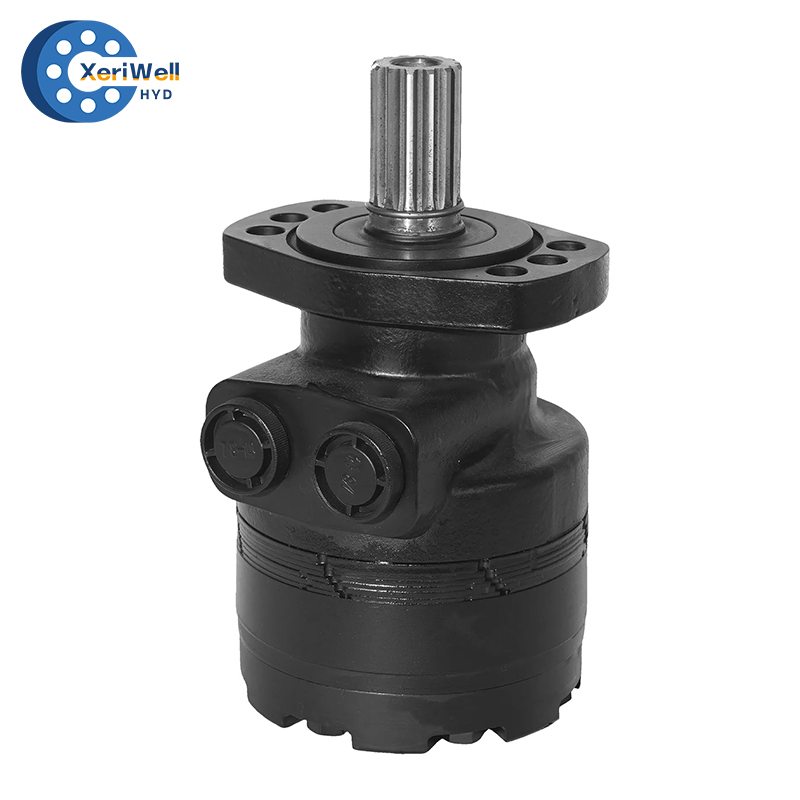

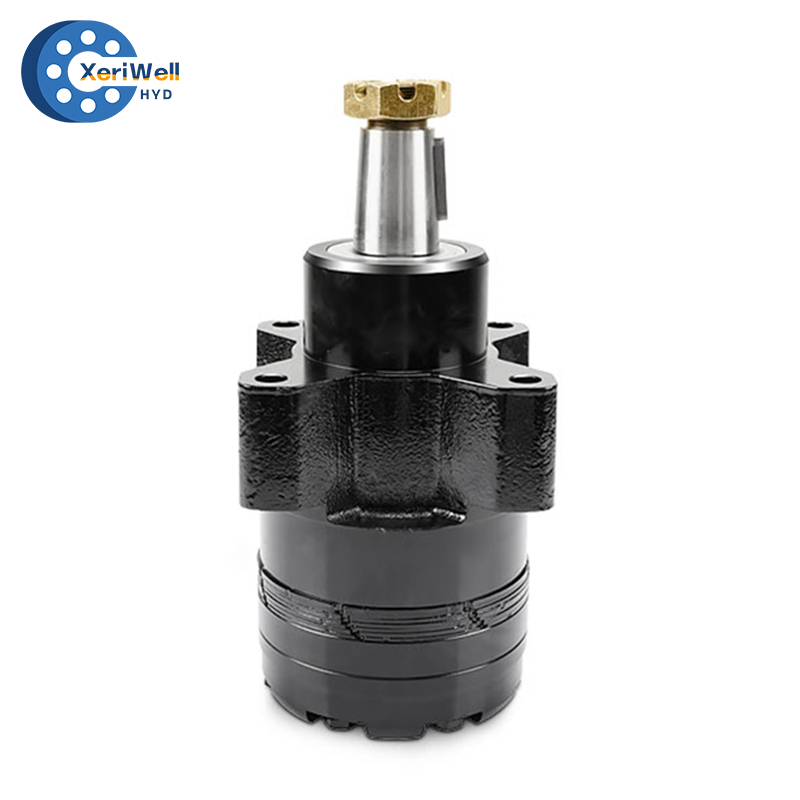

OMEW Orbital Hydraulic Motor

Name: OMEW Orbital Hydraulic Motor
Brand: Xeriwell or Others
SKU: 569408627
Rating: 5.0 (89 reviews)

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	OMEW100 OMEW125 OMEW160 OMEW200 OMEW250 OMEW315 OMEW345 OMEW400
Spare Parts:	On sale
Availability:





Inquire Add to Basket

Model:
OMEW
Brand:
Xeriwell or Others

OMEW Orbital Hydraulic Motor and spare parts:

OMEW 100/125/160/200/250/315/345/400 Orbital Hydraulic Motor technical data:

详情图

Technical Data for OMEW with 35 mm and 1 1/4 in Tapered Shaft

Type			OMEW	OMEW	OMEW	OMEW	OMEW	OMEW	OMEW	OMEW
Motor Size			100	125	160	200	250	315	345	400
Geometric displacement	cm³ [in⊃3;]		99.8 [6.11]	124.1 [7.60]	155.4 [9.51]	198.2 [12.13]	248.1 [15.18]	310.1 [18.98]	341.8 [20.86]	390.7 [23.83]
Max speed	min⁻⊃1; [rpm]	cont.	600	475	375	300	240	190	175	150
Max speed	min⁻⊃1; [rpm]	int.⊃1;)	750	695	470	375	300	240	220	190
Max torque	N•m [lbf•in]	cont.	250 [2210]	320 [2830]	410 [3630]	400 [3540]	470 [4160]	550 [4868]	610 [5400]	700 [6195]
Max torque	N•m [lbf•in]	int.⊃1;)	270 [2390]	340 [3010]	430 [3810]	570 [5045]	710 [6284]	850 [7523]	860 [7612]	870 [7700]
Max output	kW [hp]	cont.	12 [16.1]	12 [16.1]	12 [16.1]	11 [14.75]	10 [13.41]	9 [12.07]	9 [12.07]	9 [12.07]
Max output	kW [hp]	int.⊃1;)	15 [20.1]	15 [20.1]	15 [20.1]	16 [21.5]	16 [21.5]	15 [20.1]	14 [18.8]	12 [16.1]
Max pressure drop	bar [psi]	cont.	200 [2900]	200 [2900]	200 [2900]	150 [2175]	140 [2030]	130 [1885]	130 [1885]	130 [1885]
Max pressure drop	bar [psi]	int.⊃1;)	210 [3045]	210 [3045]	210 [3045]	210 [3045]	210 [3045]	200 [2900]	185 [2683]	160 [2320]
Max oil flow	l/min [US gal/min]	cont.	60 [15.9]	60 [15.9]	60 [15.9]	60 [15.9]	60 [15.9]	60 [15.9]	60 [15.9]	60 [15.9]
Max oil flow	l/min [US gal/min]	int.⊃1;)	75 [19.8]	75 [19.8]	75 [19.8]	75 [19.8]	75 [19.8]	75 [19.8]	75 [19.8]	75 [19.8]
Max starting pressure with unloaded shaft	bar [psi]		10 [145]	7 [100]	7 [100]	7 [100]	7 [100]	7 [100]	7 [100]	7 [100]
Min starting torque	at max press drop cont. N•m [lbf•in]		230 [2040]	290 [2570]	360 [3190]	330 [2920]	390 [3451]	460 [4071]	500 [4425]	580 [5133]
Min starting torque	at max press drop int.⊃1;) N•m [lbf•in]		240 [2120]	300 [2660]	380 [3360]	470 [4160]	580 [5133]	700 [6195]	710 [6284]	710 [6284]
⊃1;) Intermittent operation:the permissible values may occur for max. 10% of every minute.
