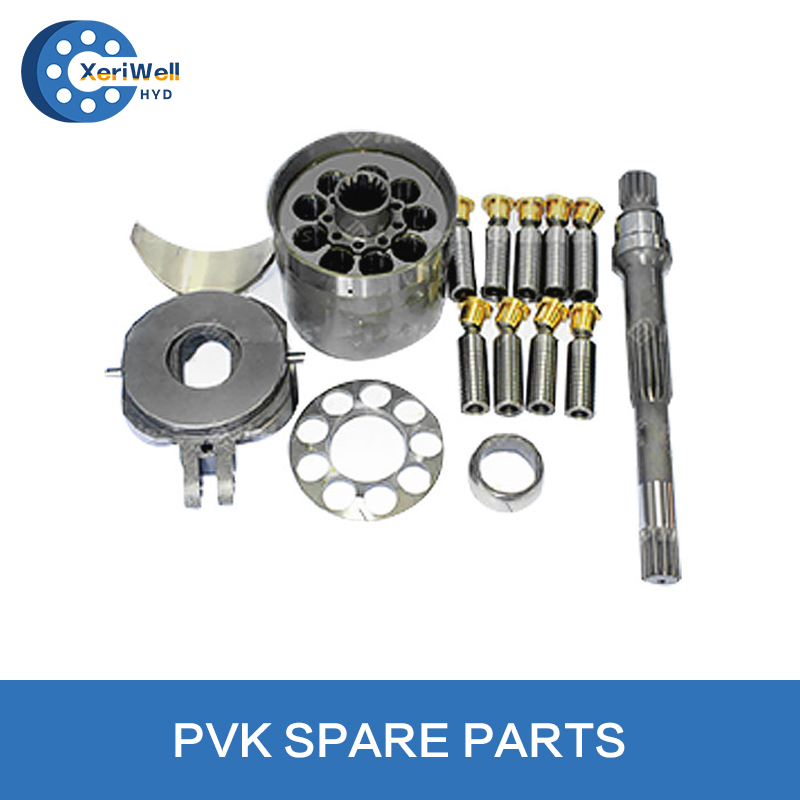

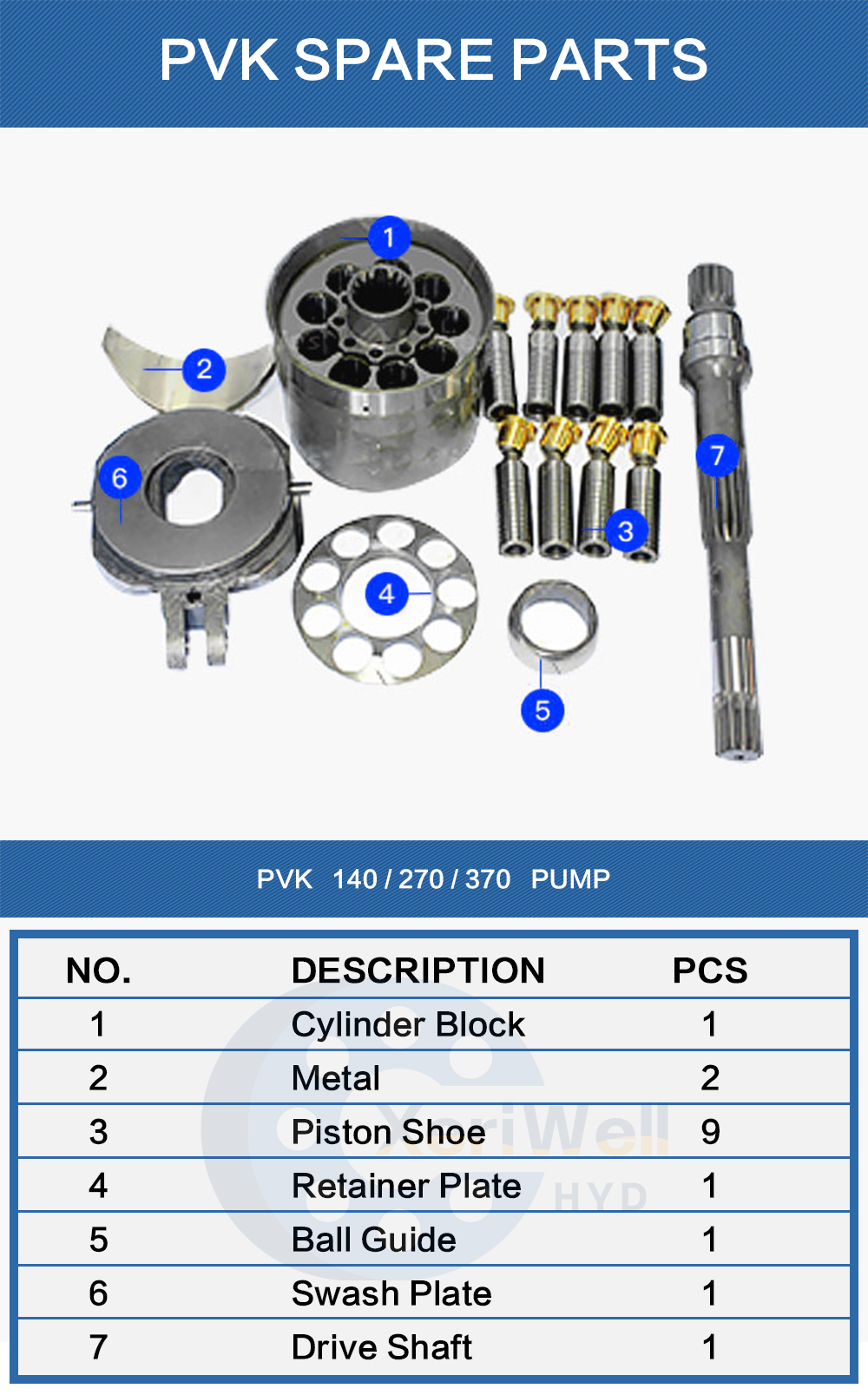

| spare parts : | |
|---|---|
| Quantity: | |
Xeriwell or Others

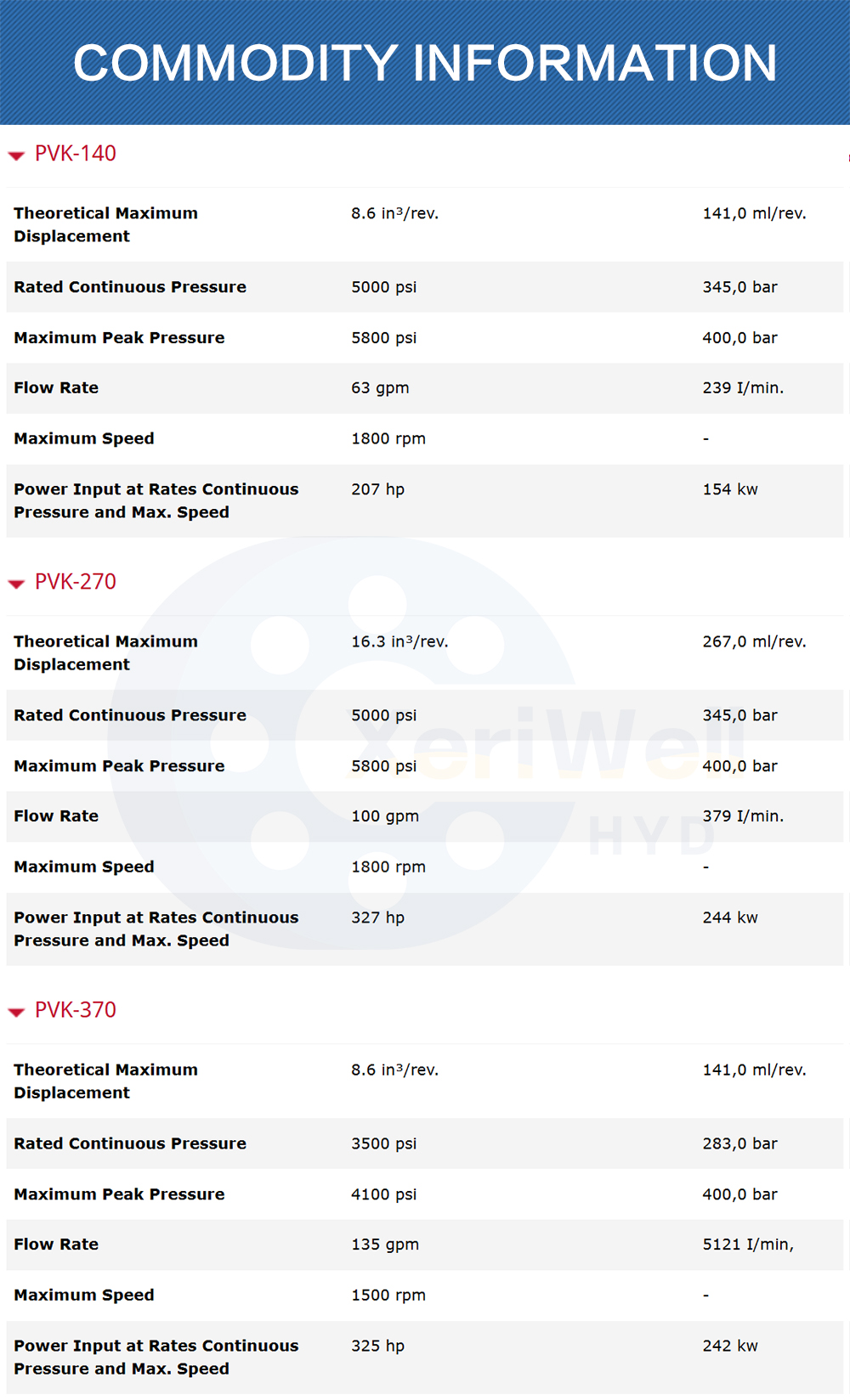

| COMMODITY INFORMATION | ||
| PVK-140 | ||
| Theoretical Maximum Displacement | 8.6 in3/rev. | 141,0 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 345,0 bar |
| Maximum Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 63 gpm | 239 l/min. |
| Maximum Speed | 1800 rpm | - |
| Power Input at Rates Continuous Pressure and Max. Speed | 207 hp | 154 kw |
| PVK-270 | ||
| Theoretical Maximum Displacement | 16.3 in3/rev. | 267,0 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 345,0 bar |
| Maximum Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 100 gpm | 379 l/min. |
| Maximum Speed | 1800 rpm | - |
| Power Input at Rates Continuous Pressure and Max. Speed | 327 hp | 244 kw |
| PVK-370 | ||
| Theoretical Maximum Displacement | 8.6 in3/rev. | 141,0 ml/rev. |
| Rated Continuous Pressure | 3500 psi | 283,0 bar |
| Maximum Peak Pressure | 4100 psi | 400,0 bar |
| Flow Rate | 135 gpm | 5121 l/min. |
| Maximum Speed | 1500 rpm | - |
| Power Input at Rates Continuous Pressure and Max. Speed | 325 hp | 242 kw |

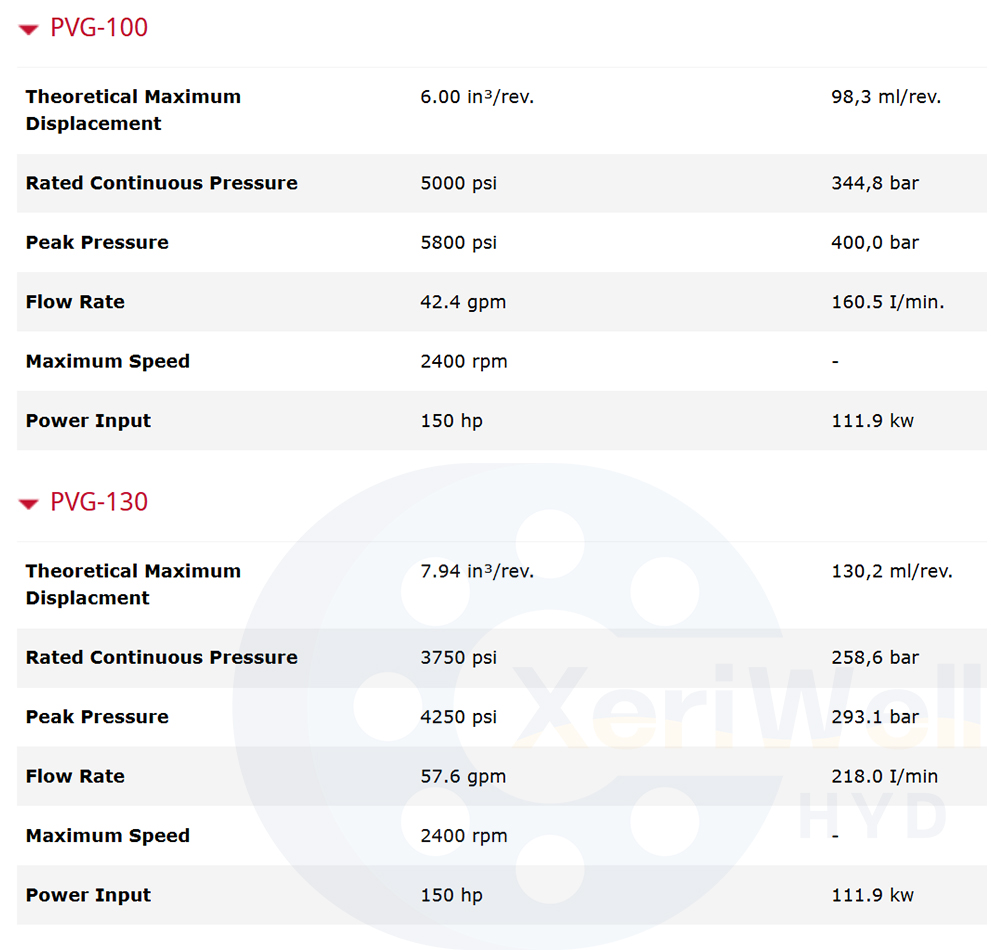

| PVG-100 | ||
| Theoretical Maximum Displacment | 6.00 in3/rev. | 98,3 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 344,8 bar |
| Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 42.4 gpm | 160.5 l/min. |
| Maximum Speed | 2400 rpm | - |
| Power Input | 150 hp | 111.9 kw |
| PVG-130 | ||
| Theoretical Maximum Displacment | 7.94 in3/rev. | 130,2 ml/rev. |
| Rated Continuous Pressure | 3750 psi | 258,6 bar |
| Peak Pressure | 4250 psi | 293.1 bar |
| Flow Rate | 57.6 gpm | 218.0 l/min |
| Maximum Speed | 2400 rpm | - |
| Power Input | 150 hp | 111.9 kw |
| COMMODITY INFORMATION | ||
| PVG-048 | ||
| Theoretical Maximum Displacement | 2.93 in3/rev. | 48,0 ml/rev. |
| Rated Continuous Peak | 5000 psi | 344,8 bar |
| Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 21.1 gpm | 79,91 l/min. |
| Maximum Speed | 2700 rpm | - |
| Power Input | 73 hp | 54,5 kw |
| PVG-065 | ||
| Theoretical Maximum Displacement | 3.98 in3/rev | 65,0 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 344,8 bar |
| Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 28.8 gpm | 108,9 l/min |
| Maximum Speed | 2700 rpm | - |
| Power Input | 100 hp | 74.6 kw |
| PVG-075 | ||
| Theoretical Maximum Displacement | 4.60 in3/rev. | 75,4 ml/rev. |
| Rated Continuous Pressure | 3750 psi | 258,6 bar |
| Peak Pressure | 5800 psi | 400.0 bar |
| Flow Rate | 42.4 gpm | 160.51 l/min |
| Maximum Speed | 2400 rpm | - |
| Power Input | 150 hp | 111.9 kw |

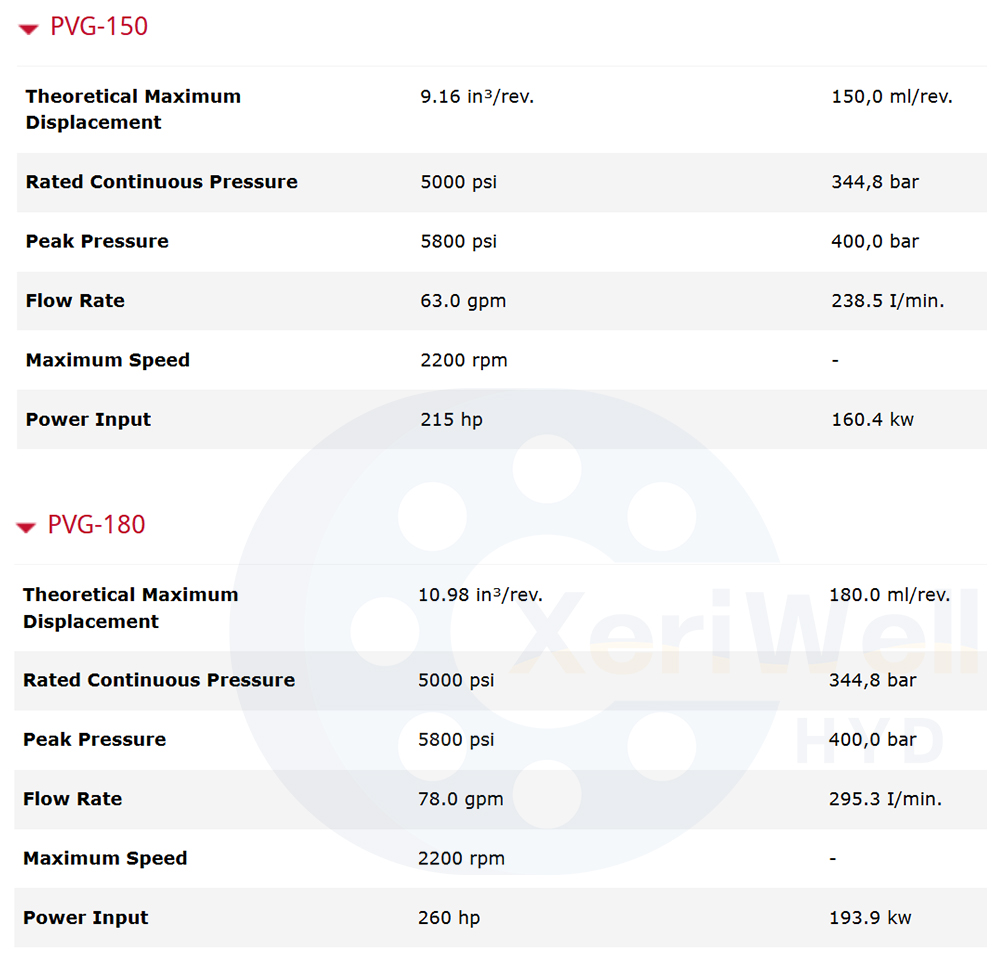

| PVG-150 | ||
| Theoretical Maximum Displacement | 9.16 in3/rev. | 150,0 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 344,8 bar |
| Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 63.0 gpm | 238.5 l/min. |
| Maximum Speed | 2200 rpm | - |
| Power Input | 215 hp | 160.4 kw |
| PVG-180 | ||
| Theoretical Maximum Displacement | 10.98 in3/rev. | 180.0 ml/rev. |
| Rated Continuous Pressure | 5000 psi | 344,8 bar |
| Peak Pressure | 5800 psi | 400,0 bar |
| Flow Rate | 78.0 gpm | 295.3 l/min. |
| Maximum Speed | 2200 rpm | - |
| Power Input | 260 hp | 193.9 kw |
