4000 series
Xeriwell or Others
| Item: | Disc Geroter Motors | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible/standard | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Application: | Hydraulic Hammer Drill |
| Highlight: | 2651323319 eaton hydraulic motor,Hydraulic Hammer Drill eaton hydraulic motor,High Pressure gerotor hydraulic motor | ||

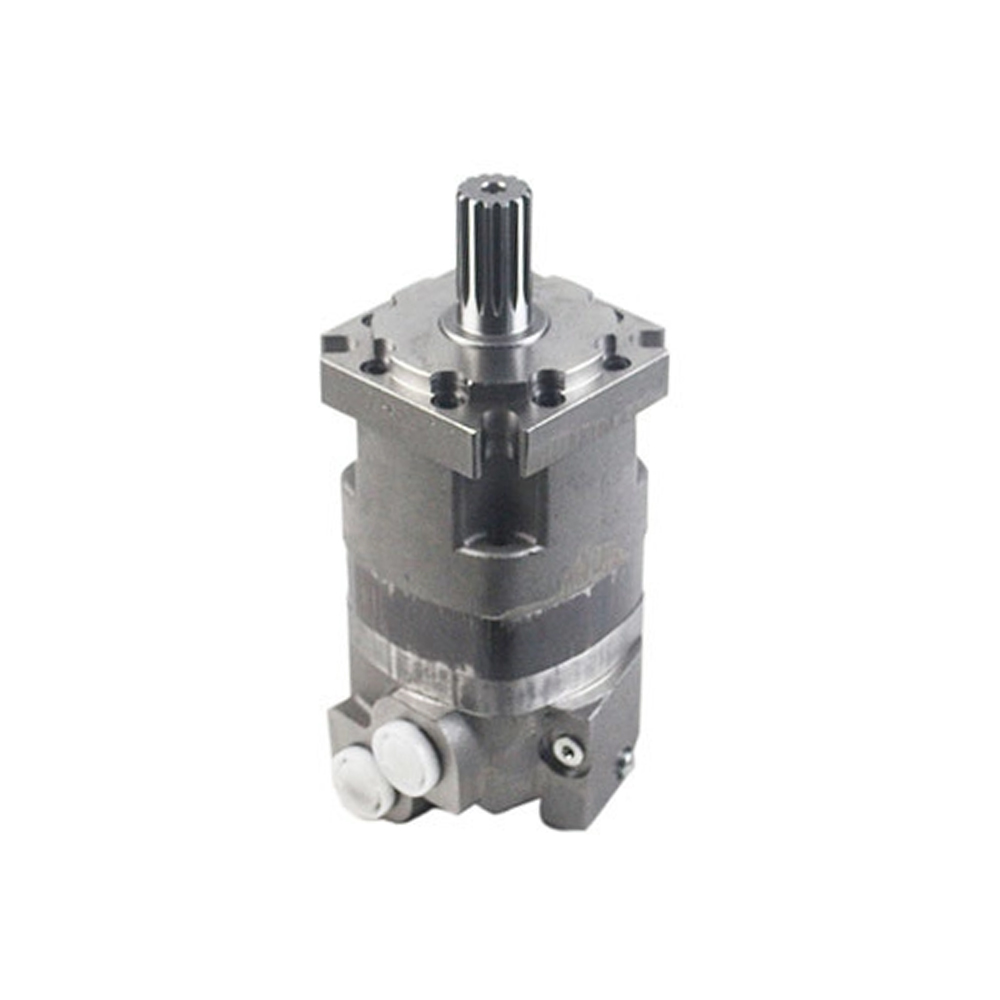

OEM #2651323319 Eaton gerotor hydraulic motor for hydraulic hammer drill high pressure 4000 series charlynn motor
Disc Motor
Geroler
Disc Valve motor
OEM#2651323319
for Ingersollrand and Furukawa
used on hammer drill
Product details:
| MOUNTING TYPE CODE | SAE B |
| PORT CODE | D |
| PORT TYPE | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| DISPLACEMENT (IN3/REV) | 15.03 |
| SPLINES | 14 |
| SHAFT SIZE & TYPE | 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD |
| RPM [MAX] | 582 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Splined |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 3/4- unf |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| OUTPUT SHAFT CODE | 3 |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
